Navigation Module: Service and Repair
Removal and Installation of AV and NAVI Control UnitREMOVAL 1.
Refer to "Precautions for AV and NAVI Control Unit Replacement". Take a note of necessary items.
2.
Remove trunk room trim. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER".
3.

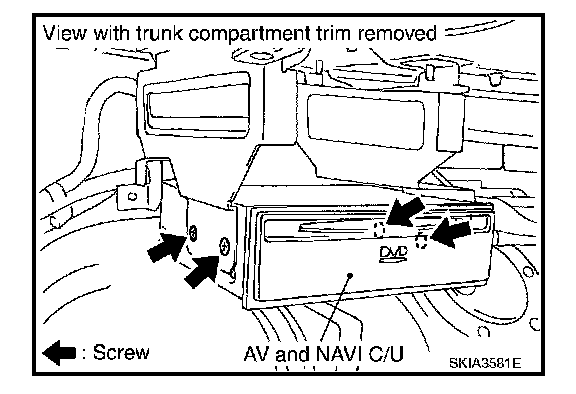

Remove screws and remove the AV and NAVI control unit.
INSTALLATIONInstall in the reverse order of removal.
