Terminals and Reference Values For Rear Power Seat Control Unit

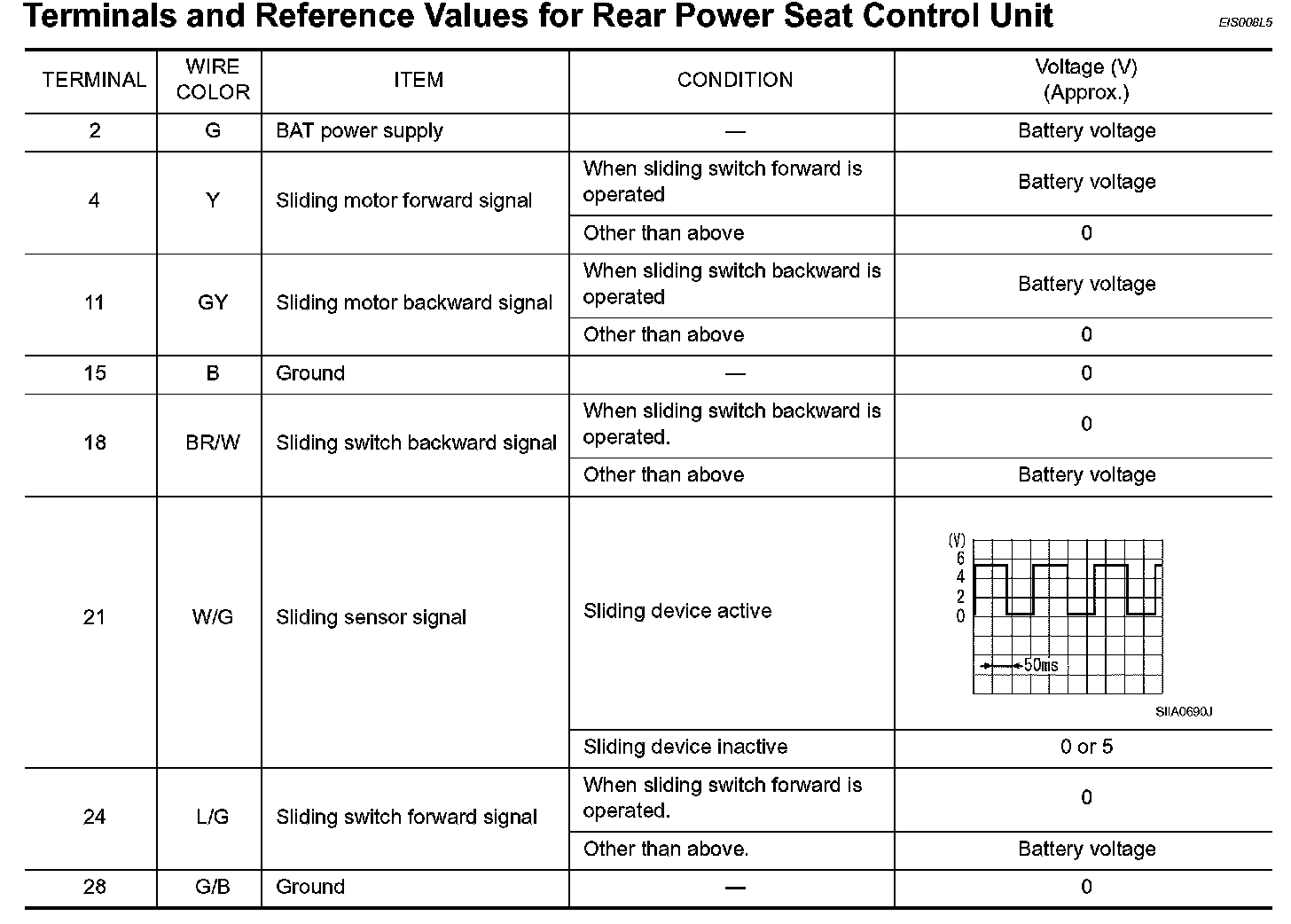

Terminals And Reference Values For Rear Power Seat Control Unit Part 1:

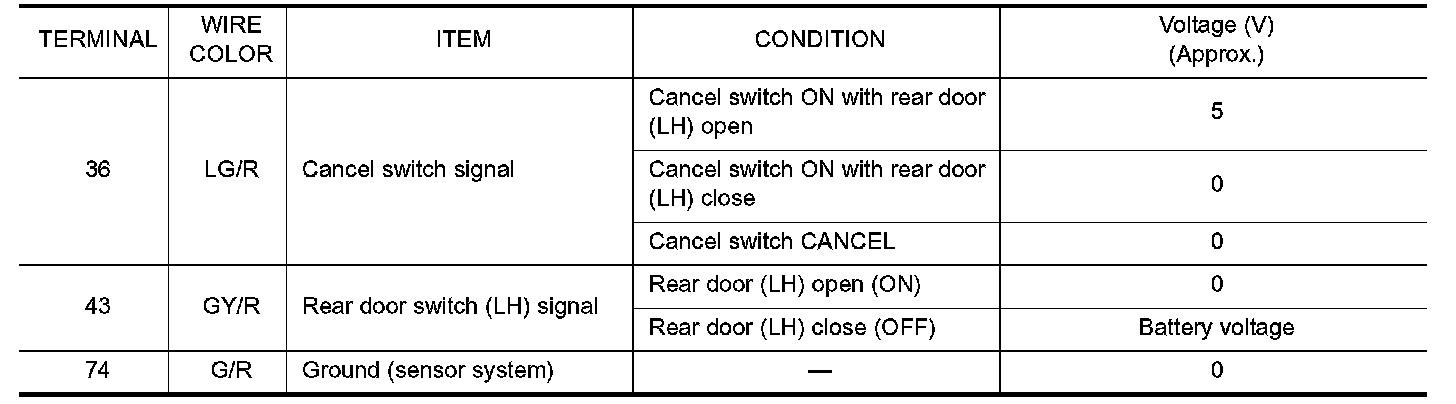

Terminals And Reference Values For Rear Power Seat Control Unit Part 2:
