Electronic Brake Control Module: Service and Repair

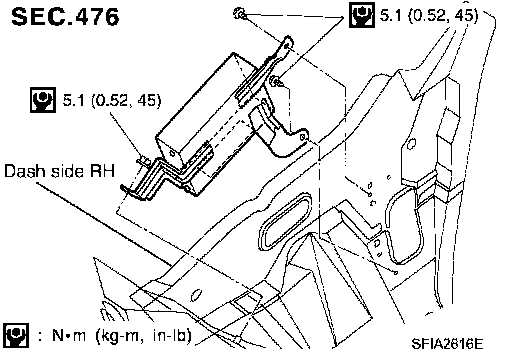

VDC/TCS/ABS CONTROL UNIT

Removal and Installation
REMOVAL
1. Remove instrument lower cover. Refer to "(O) Instrument Lower cover."





2. Remove instrument finisher. Refer to "(Q) Instrument Finisher".
3. Remove grove box assembly. Refer to "(P) Glove Box".
4. Remove grove box cover. Refer to "(R) Glove Box Cover"
5. Remove instrument panel bracket.
6. Remove ECM. Refer to "ECM Terminals and Reference Value".
7. Remove VDC/TCS/ABS control unit.

INSTALLATION
Install in the reverse order of removal.
