Cruise Control Module: Service and Repair

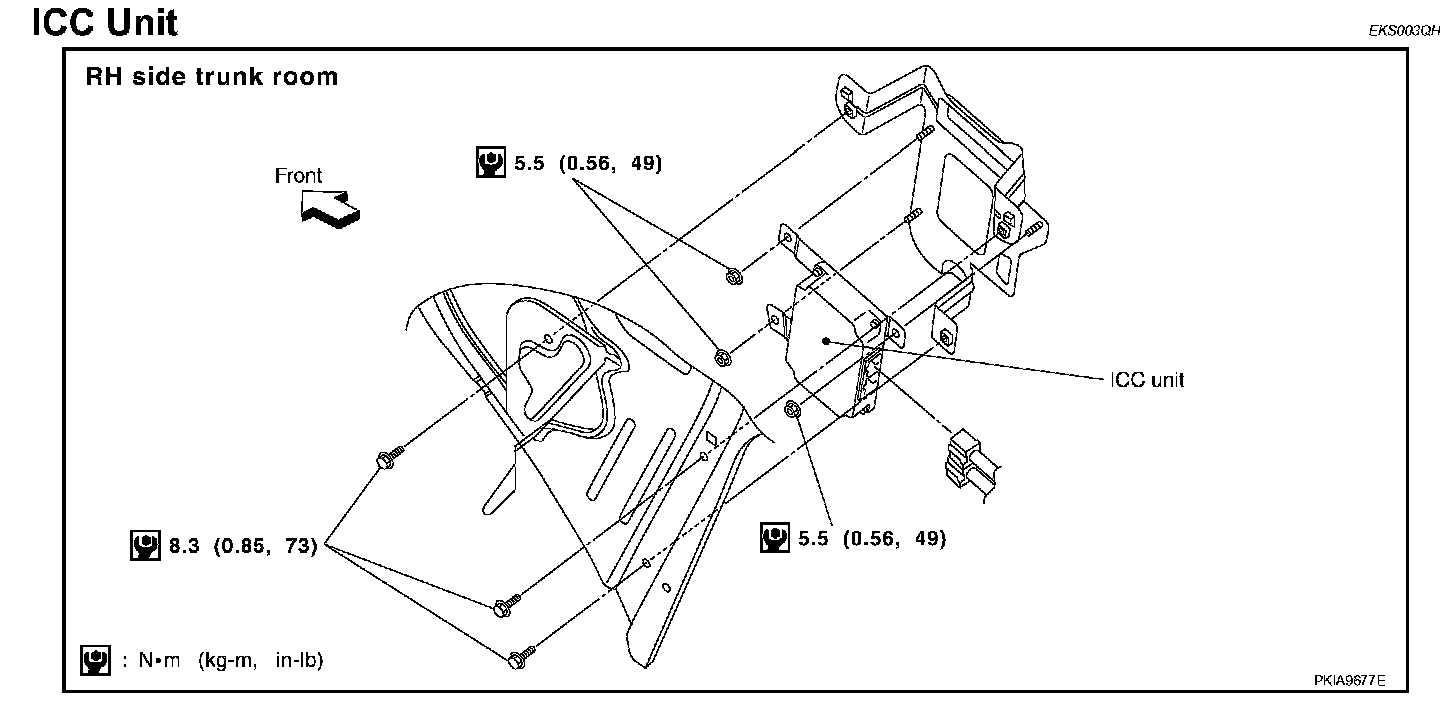

REMOVAL AND INSTALLATIONICC UnitREMOVAL 1.
Remove the trunk side finisher (right). Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER"
2.
Disconnect ICC unit connector.
3.
Remove mounting bolts from ICC unit assembly.
INSTALLATIONInstallation is the reverse order of removal.
