ASCD Steering Switch

Component Inspection

ASCD STEERING SWITCH
1. Disconnect ASCD steering switch.

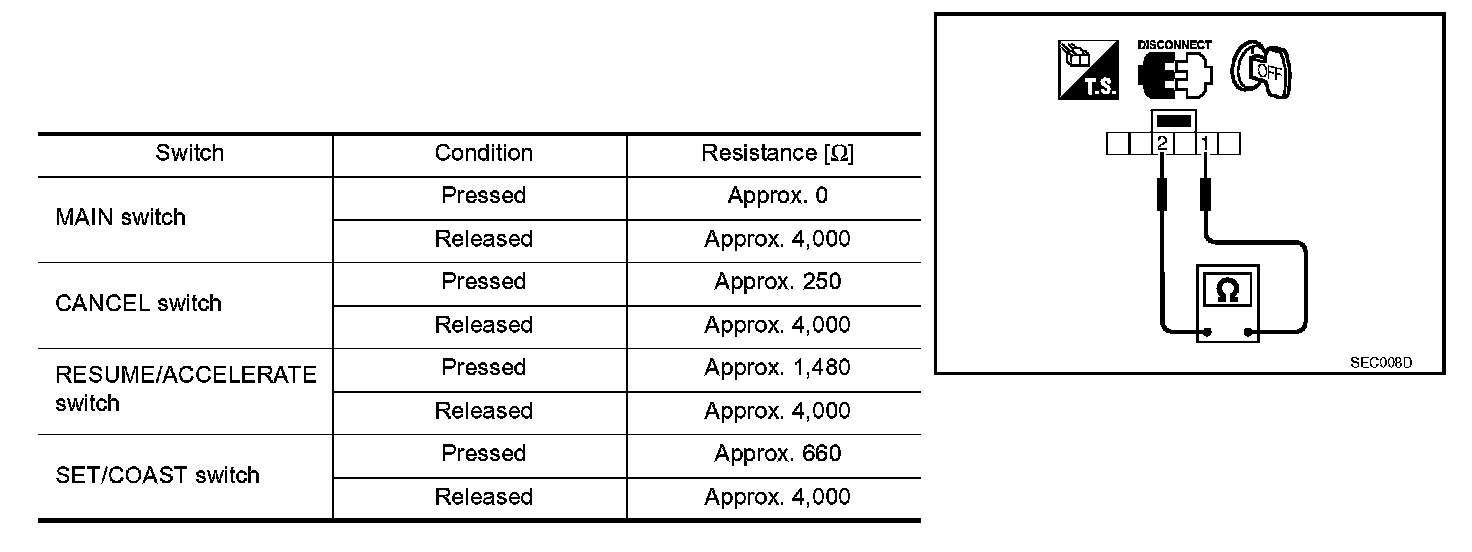

2. Check continuity between ASCD steering switch terminals 1 and 2 with pushing each switch.
