ICC Steering Switch

ICC Steering Switch
1. Disconnect ICC steering switch.

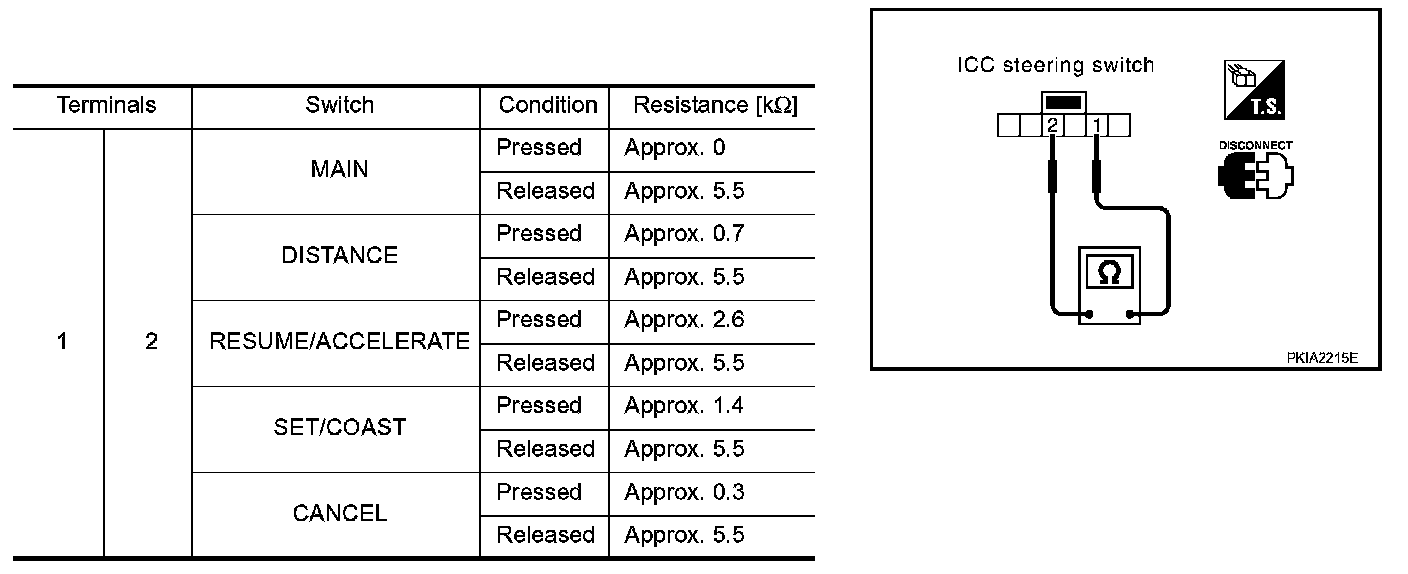

2. Check resistance between ICC steering switch terminals 1 and 2 by pressing each switch.
