Data Monitor

DATA MONITOR

Operation Procedure

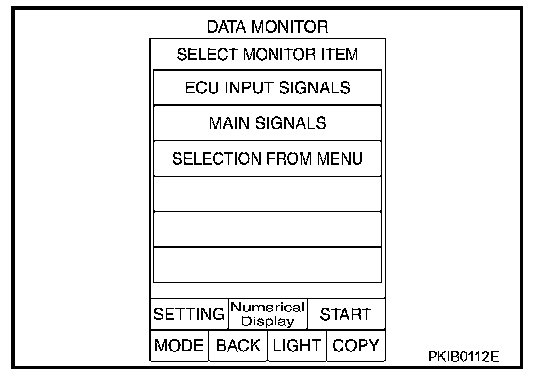

1. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen. Refer to "CONSULT-II BASIC OPERATION".
2. Touch any of "ECU INPUT SIGNALS", "MAIN SIGNALS" and "SELECTION FROM MENU" on selection screen.
3. Touch "START".
4. Display the data monitor.
5. If necessary, touch "COPY" in turn, and print data.

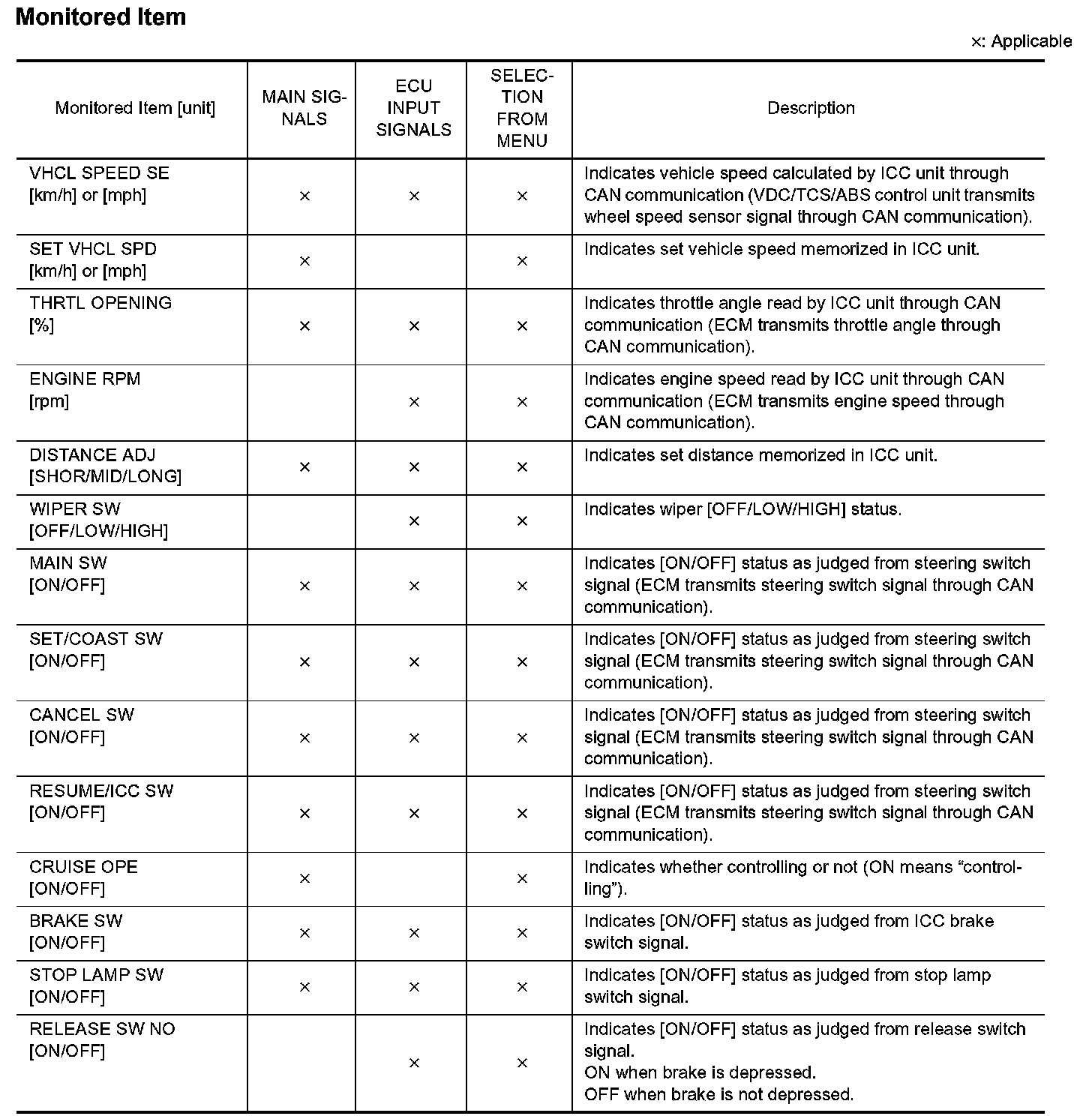

Part 1:

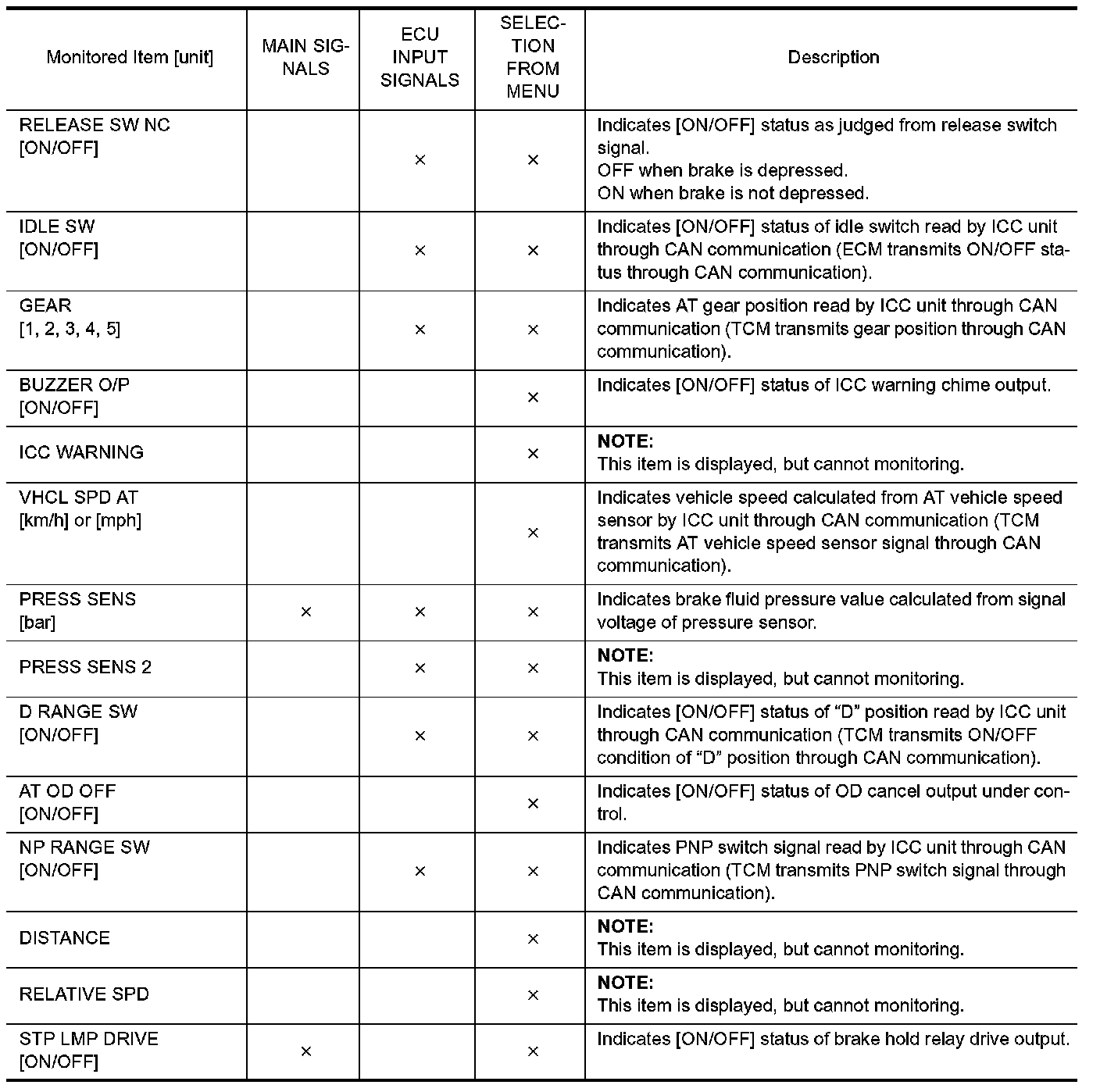

Part 2:

Monitored Item
