Work Support

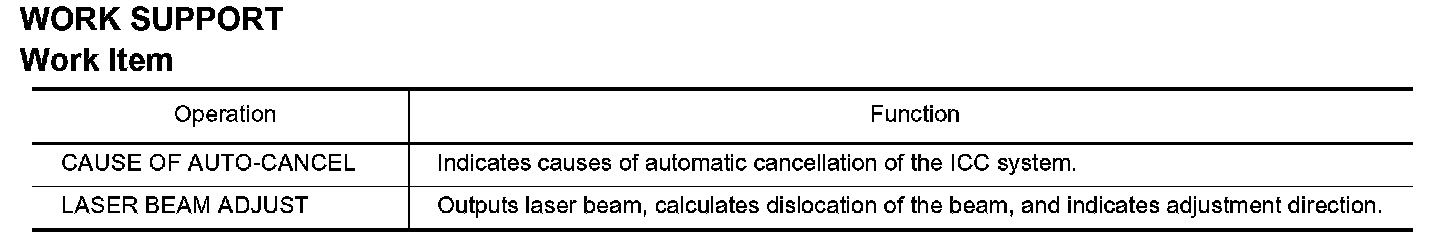

WORK SUPPORT

Work Item

Cause of Auto-Cancel

1. Touch "WORK SUPPORT" on the "SELECT DIAG MODE" screen. Refer to "CONSULT-II BASIC OPERATION".

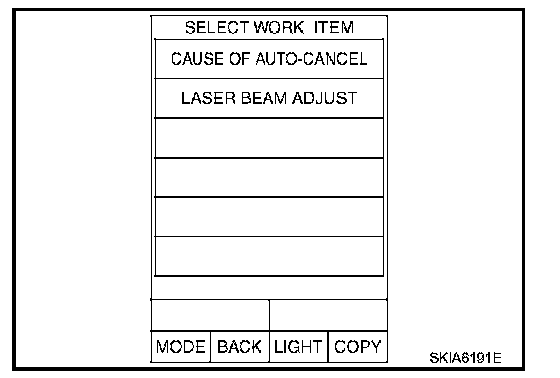

2. Touch "CAUSE OF AUTO-CANCEL" on the "SELECT WORK ITEM" screen.
3. Cause of automatic cancellation screen will be shown.

CAUTION: Last five cancel (system cancel) causes are displayed.

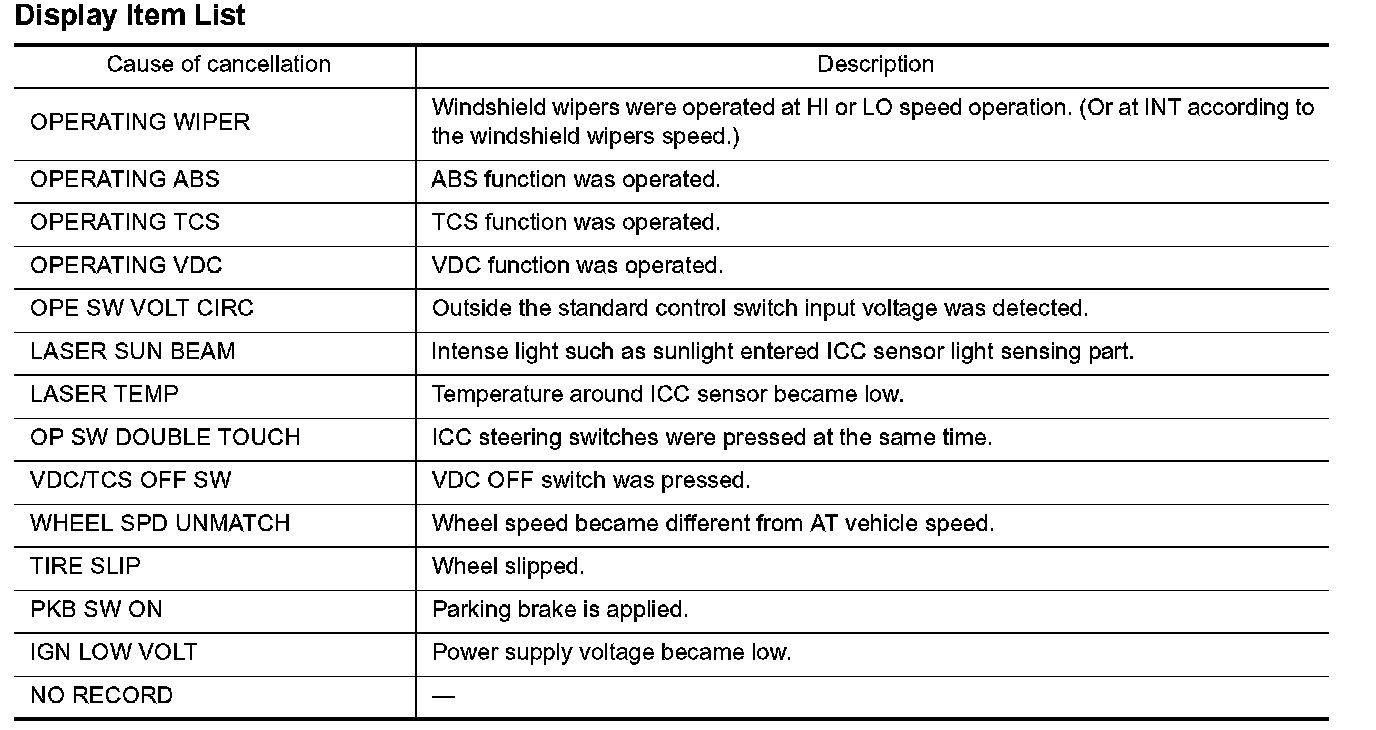

Display Item List

Laser Beam Adjust
For details, "LASER BEAM AIMING ADJUSTMENT".
