Refrigerant Pressure Sensor / Switch: Service and Repair

Removal and Installation of Refrigerant Pressure Sensor

REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove front grille. Refer to "FRONT GRILLE".
3. Remove horn.




4. Disconnect connector and remove refrigerant pressure sensor.

CAUTION:

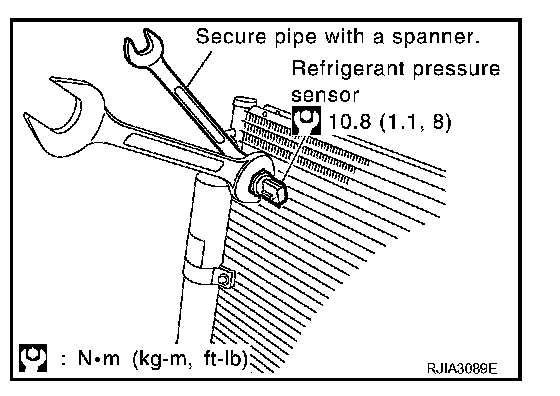

- Secure refrigerant pressure sensor installation pipe with an open-end wrench. Be careful not to deform pipe during the operation.
- Be careful not to damage the core surface of the condenser during the operation.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION:
- Replace high-pressure pipe O-ring with a new one. Apply compressor oil prior to installation.
- When recharging refrigerant, check for leaks.
