Data Monitor

DATA MONITOR

Operation Procedure
1. Touch "DOOR OPEN WARNING" on "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

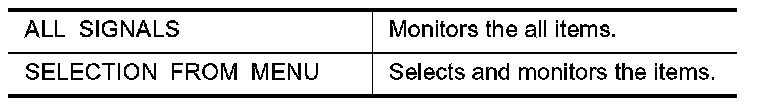

3. Touch "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.
4. If "SELECTION FROM MENU" is selected, touch the desired monitor item. If "ALL SIGNALS" is selected, the main item required to control is monitored.
5. Touch "START".
6. During monitoring, touching "COPY" can start recording the monitor item status.




Data Monitor Item
