With Transmitter Activation Tool

ID Registration Procedure

ID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL
1. Turn ignition switch "OFF".
2. Connect CONSULT-II to data link connector.
3. Touch "START", "AIR PRESSURE MONITOR", "WORK SUPPORT" and "ID REGIST".

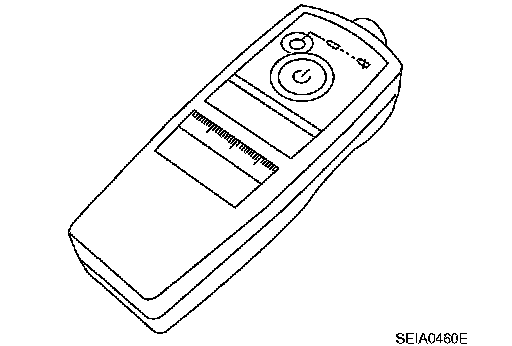

4. With the transmitter activation tool (J45295) pushed against the front left transmitter, press the button then keep 5 seconds.

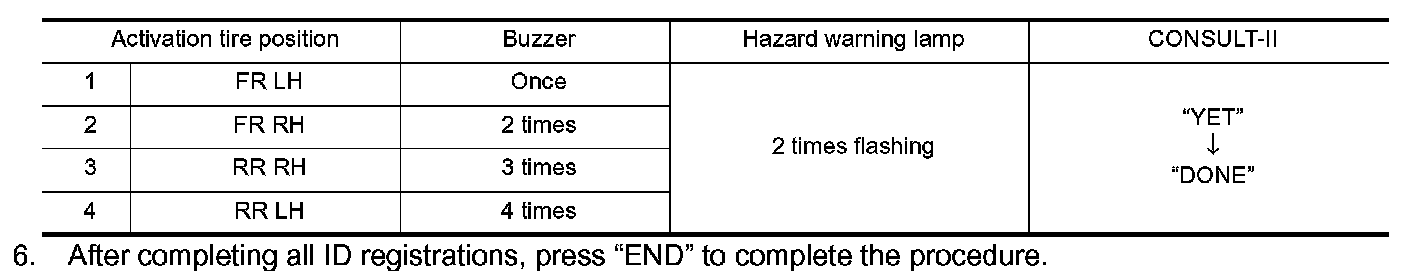

5. Register the IDs in order from FR LH, FR RH, RR RH, to RR LH. When ID registration of each wheel has been completed, a buzzer sounds and hazard warning lamp blinks.
6. After completing all ID registrations, press "END" to complete the procedure.

NOTE: Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results display will not function properly.
