Air Flow Meter/Sensor: Service and Repair

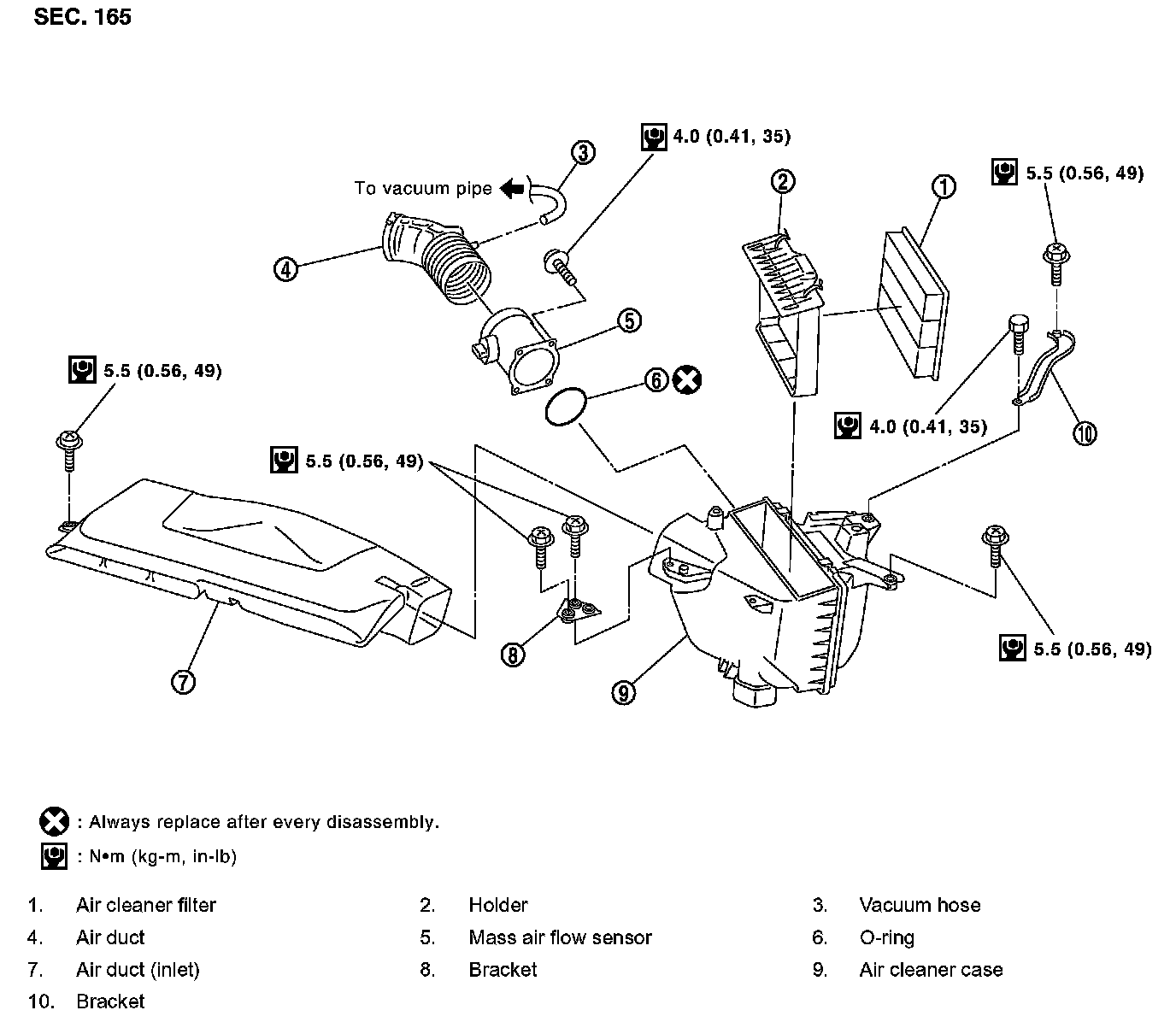

AIR CLEANER AND AIR DUCT

Removal and Installation
REMOVAL
1. Remove engine cover with power tool. Refer to "ENGINE ROOM COVER".
2. Remove air cleaner cover. Refer to "ENGINE ROOM COVER".
3. Disconnect harness connector from mass air flow sensor.
4. Remove air duct (inlet), air duct and air cleaner case assembly disconnecting their joints.
^ Add marks as necessary for easier installation.
5. Remove mass air flow sensor from air cleaner case, as necessary.

CAUTION: Handle mass air flow sensor with the following cares.
^ Do not shock it.
^ Do not disassemble it.
^ Do not touch its sensor.

INSTALLATION
Note the following, and install in the reverse order of removal.
^ Align marks. Attach each joint. Screw clamps firmly.
