Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection
Component InspectionENGINE COOLANT TEMPERATURE SENSOR 1.

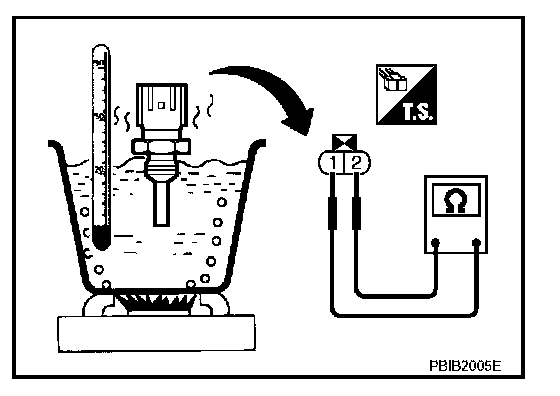

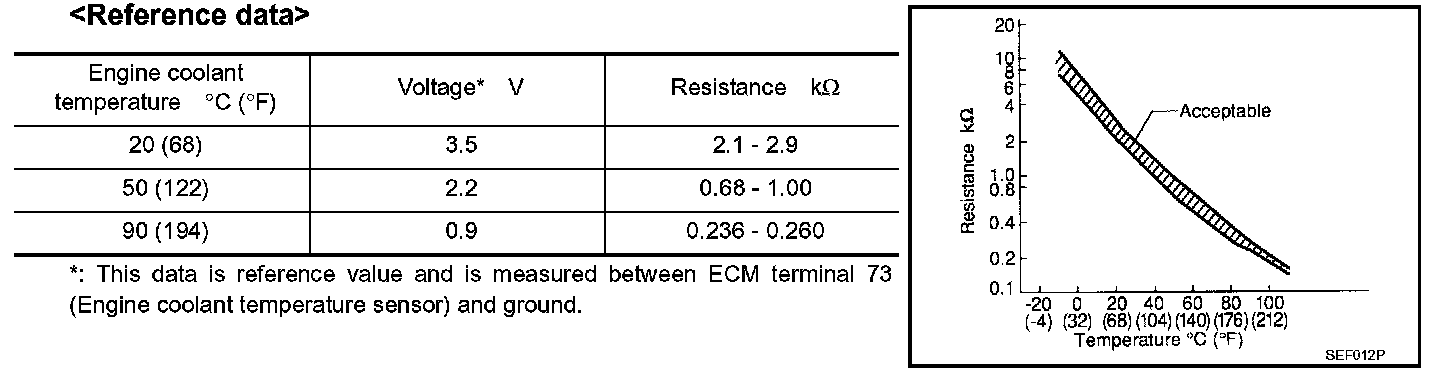

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
2.
If NG, replace engine coolant temperature sensor.
