CAN Communication System

CAN Diagnostic Support Monitor

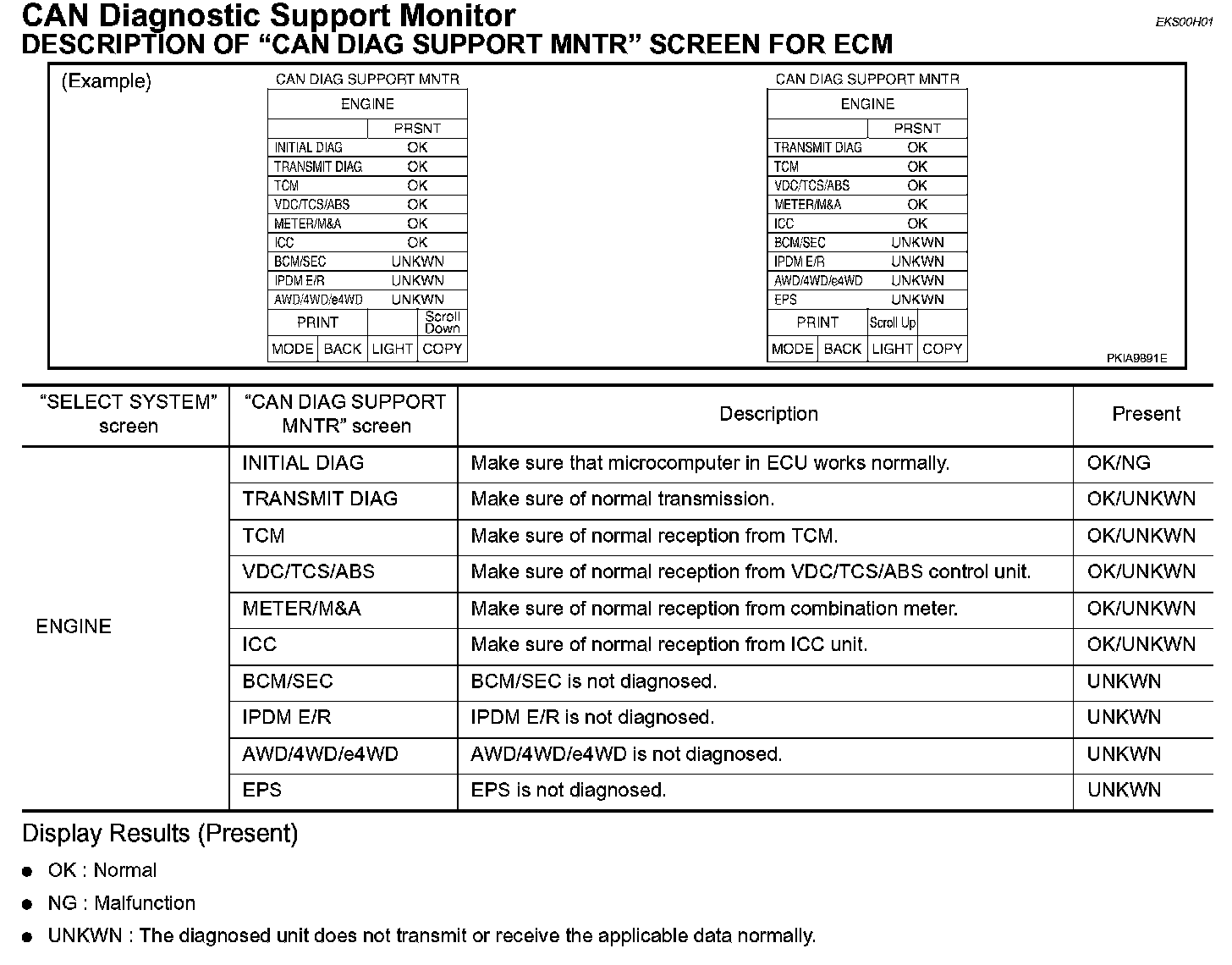

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR ECM

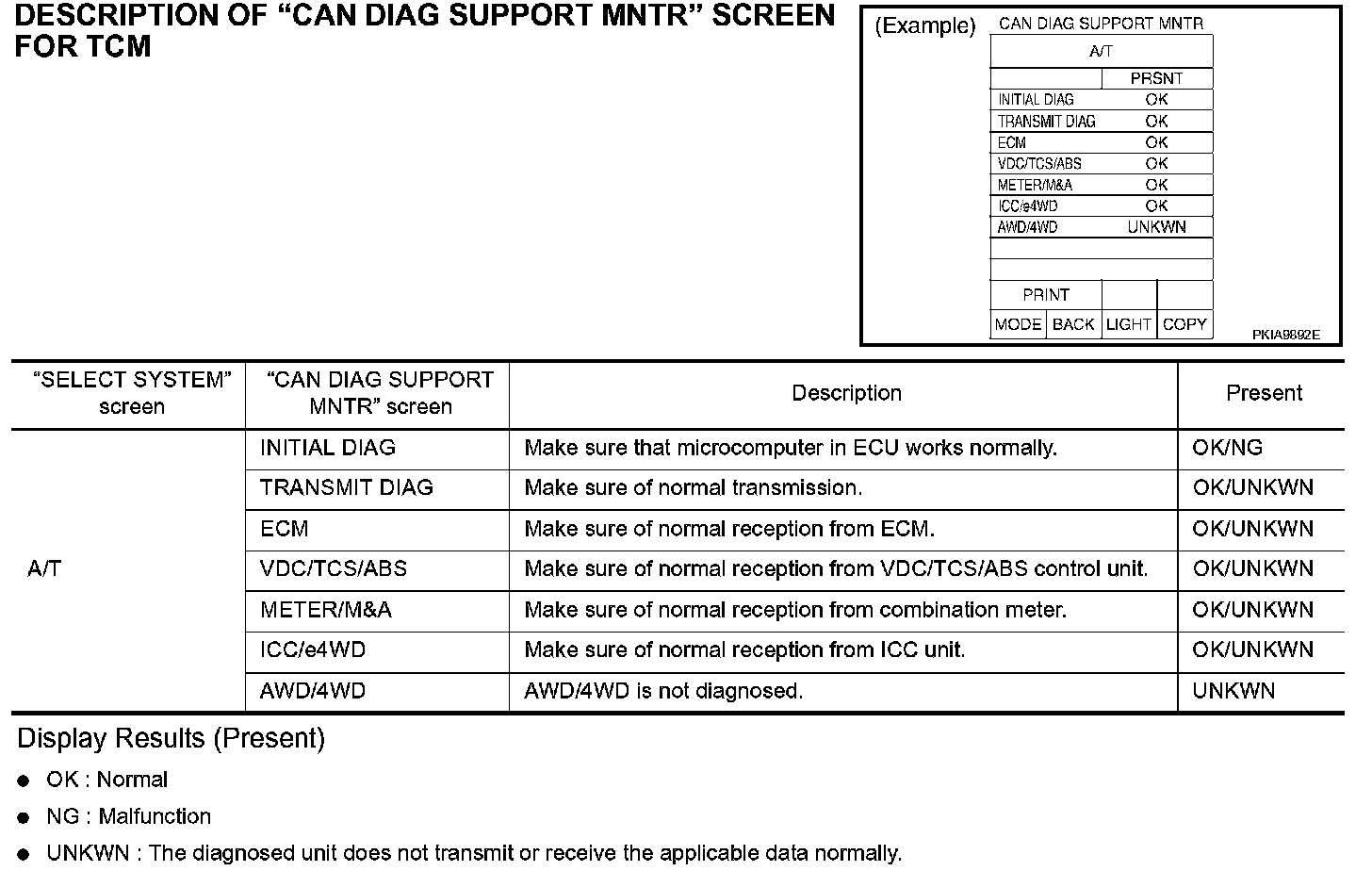

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR TCM

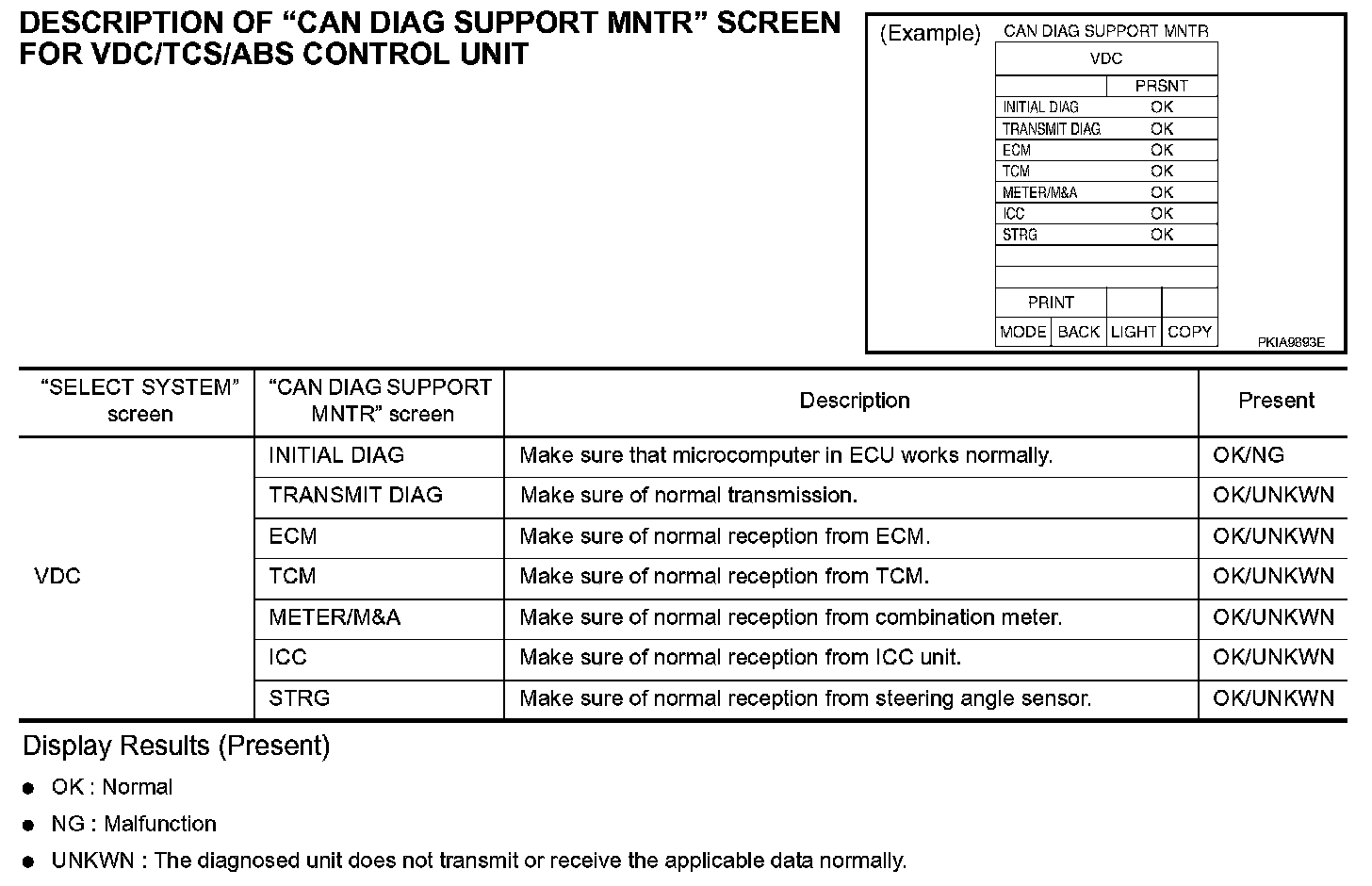

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR VDC/TCS/ABS CONTROL UNIT




DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR ICC CONTROL UNIT




DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR PRE-CRASH SEAT BELT CONTROL UNIT
