Scan Tool Testing

CONSULT-II Function
CONSULT-II executes the following functions by combining data reception and command transmission via the communication line from BCM. IVMS communication inspection, work support (only function setting of seats and steering wheel), self-diagnosis, data monitor, and active test display.

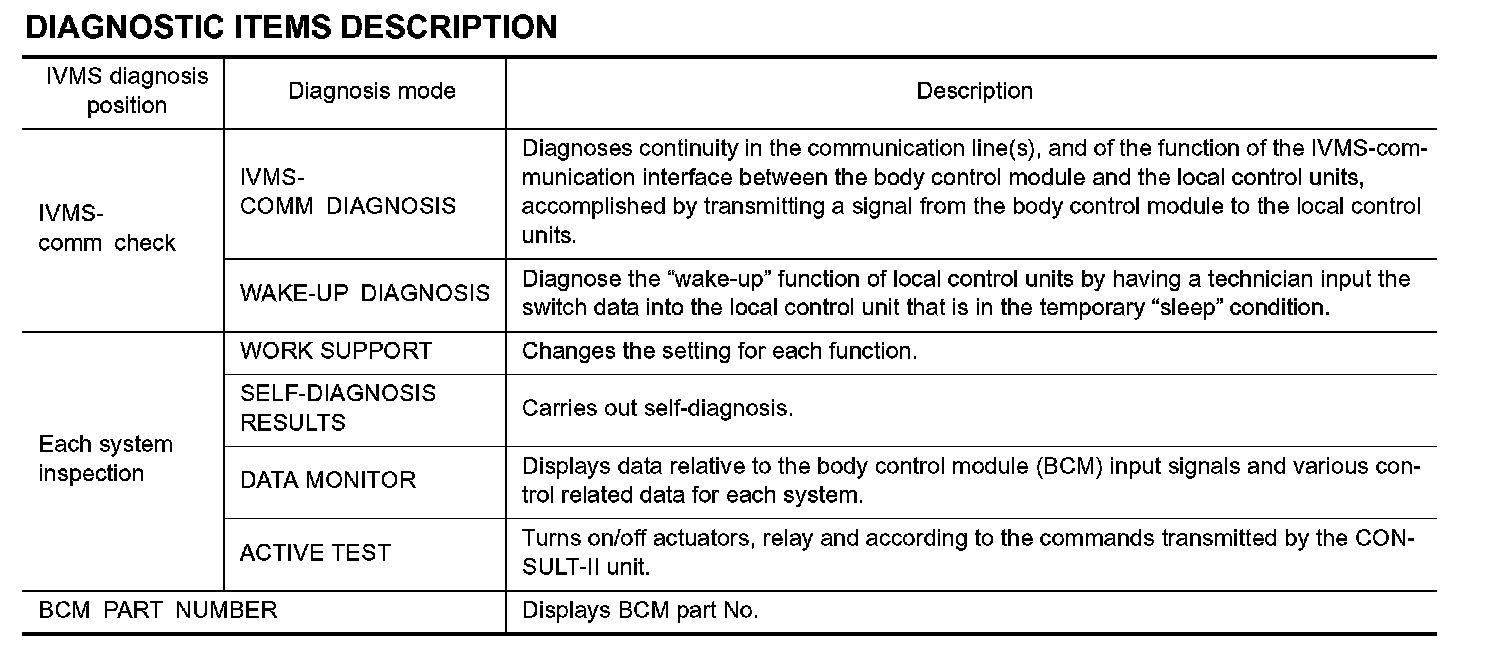

DIAGNOSTIC ITEMS DESCRIPTION

Part 1:

Part 2:

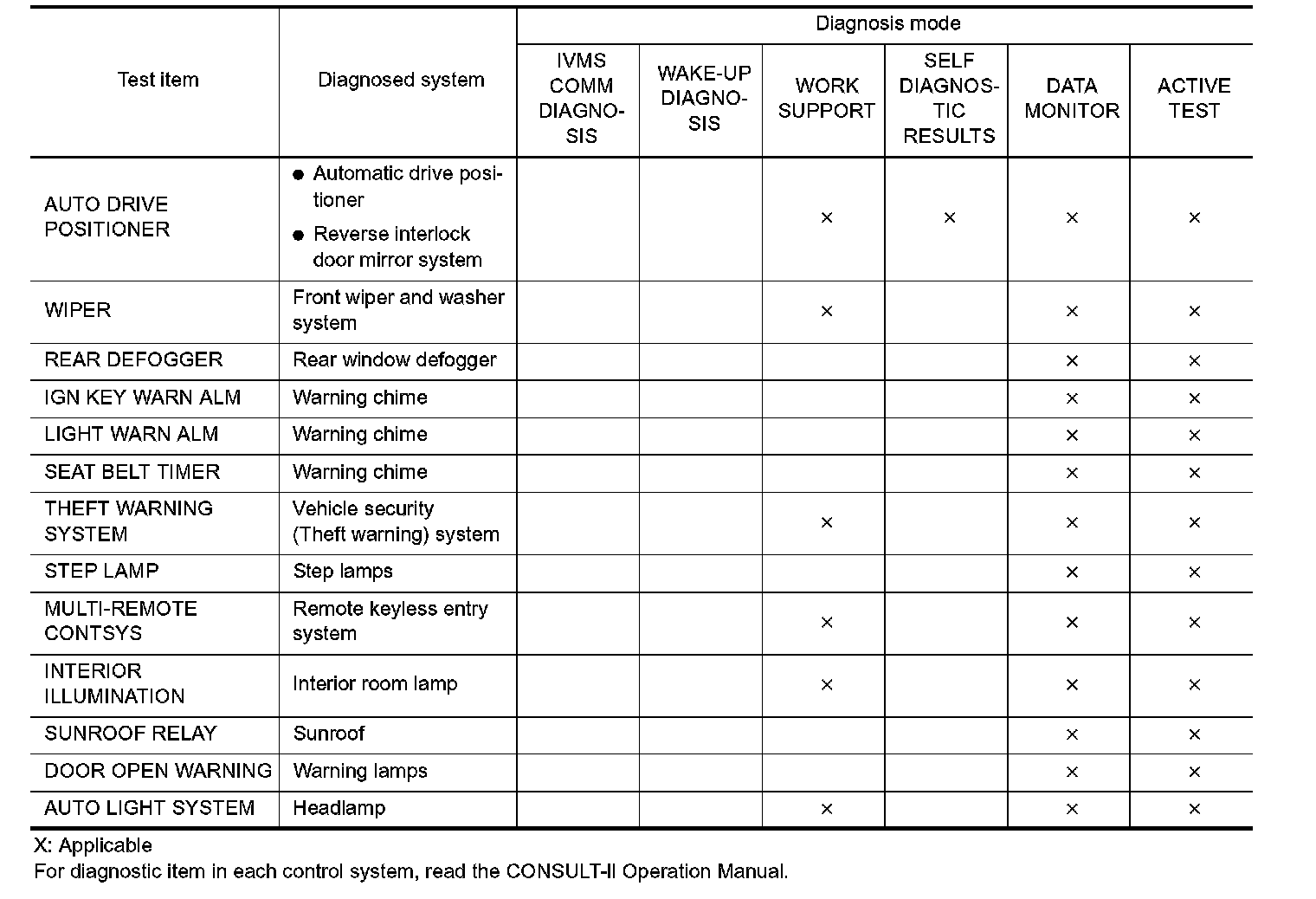

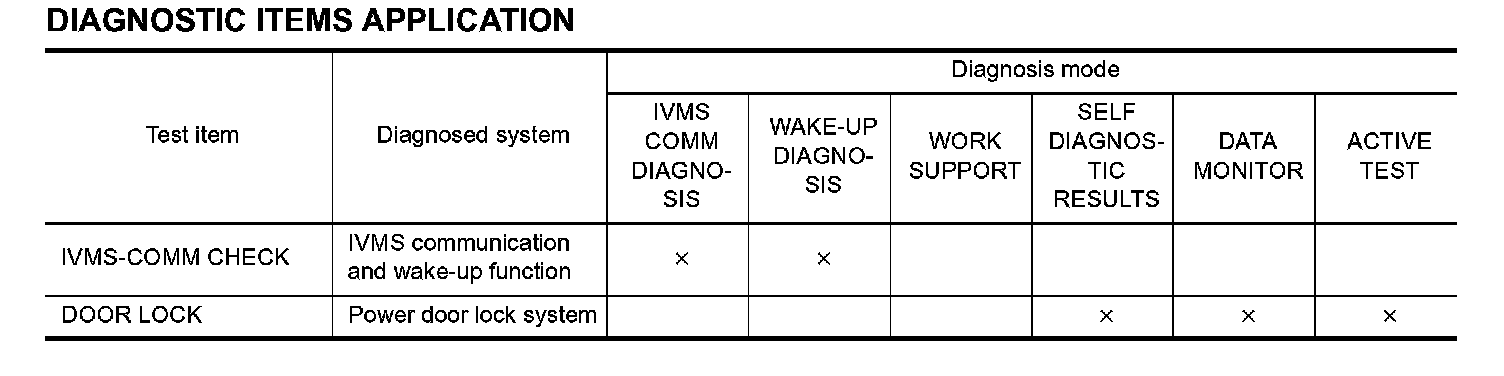

DIAGNOSTIC ITEMS APPLICATION
