Auto Trunk System

Removal and Installation

PRECAUTIONS FOR WORK

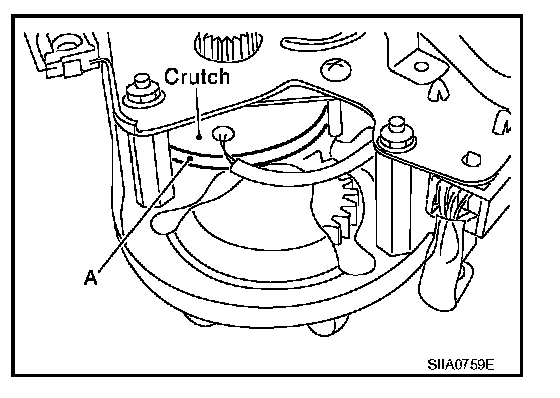

- During removal and installation, be careful not to allow any grease to adhere to the solenoid clutch joint (A in the figure).
- If grease adheres to the solenoid clutch joint (A in the figure), clutch becomes slippery and generates a transmission loss resulting in inactive auto operation.

REMOVAL
1. Open trunk lid.
2. Remove rear parcel shelf finisher. Refer to "REAR PARCEL SHELF FINISHER".

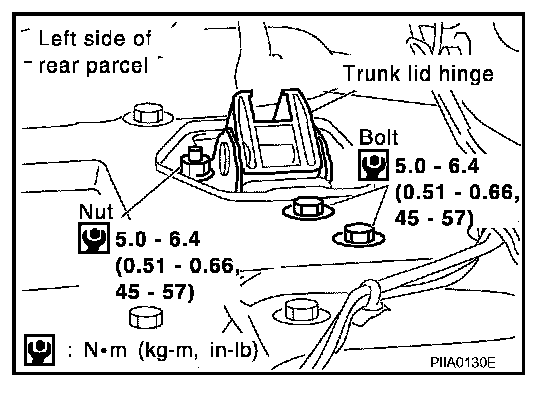

3. Remove trunk motor assembly mounting bolts and nut.
4. Remove trunk front finisher and trunk side finisher (LH). Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER".
5. Disconnect trunk motor connector.

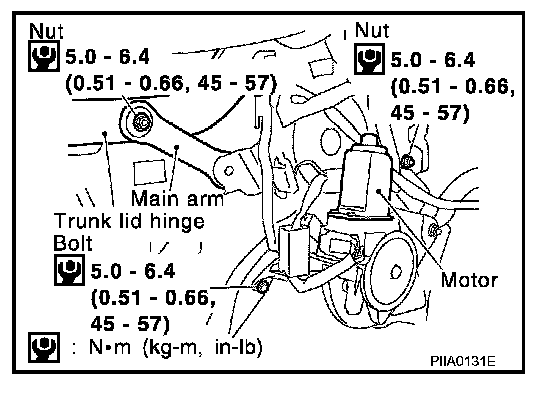

6. Remove main arm mounting nut on trunk lid hinge.
7. Remove mounting bolt and nut, and remove trunk motor assembly.

INSTALLATION
Install in reverse order of removal.

CAUTION: Be careful not to pinch the harnesses. Be sure to check operation after installation is completed.
