Home >> Infiniti >> 2005 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Transmission Temperature Sensor/Switch, A/T

Transmission Temperature Sensor/Switch, A/T

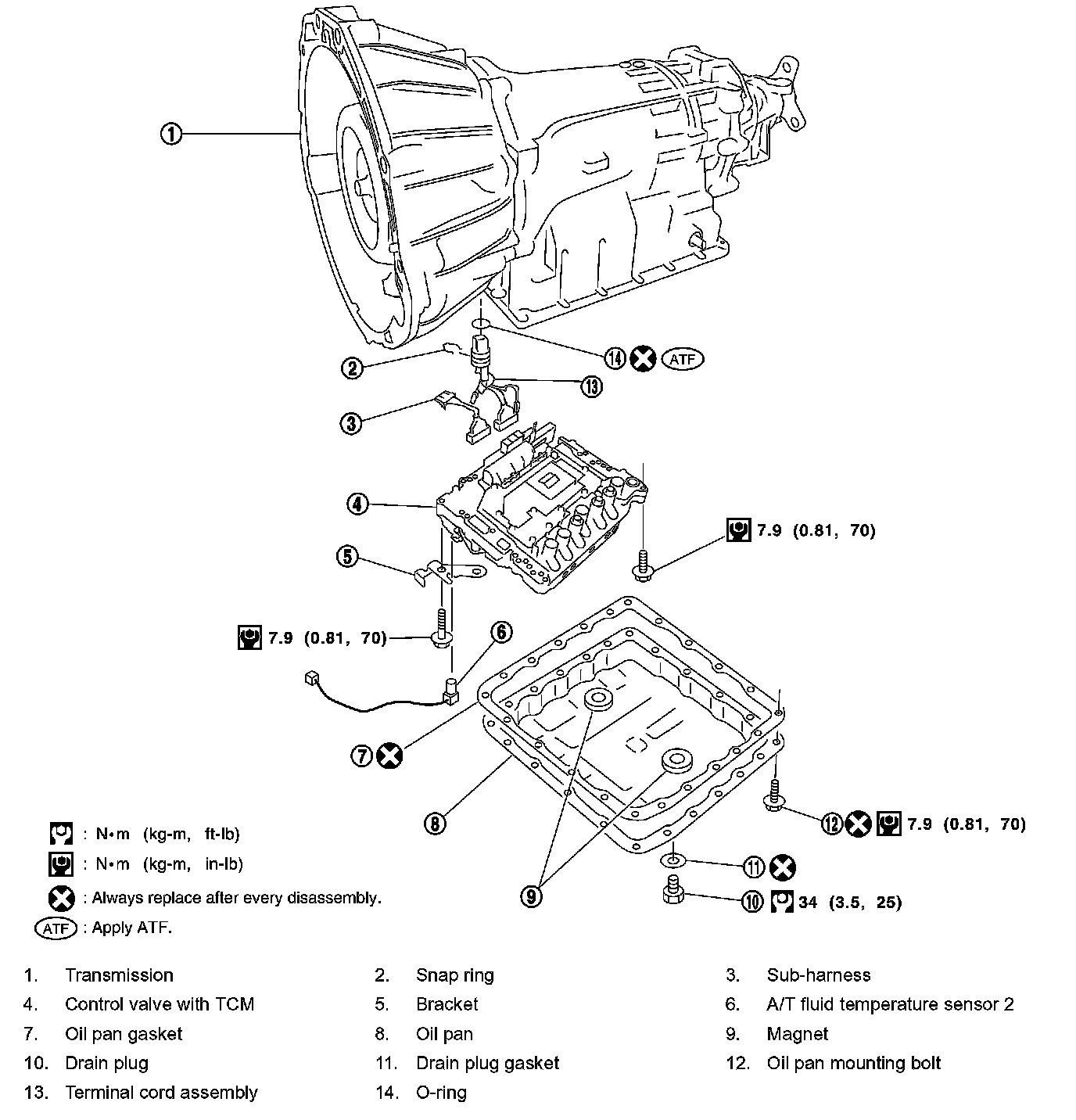

CONTROL VALVE WITH TCM and A/T FLUID Temperature Sensor 2 COMPONENTS





COMPONENTS
