Home >> Infiniti >> 2005 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly

Axle Shaft Assembly

SERVICE DATA

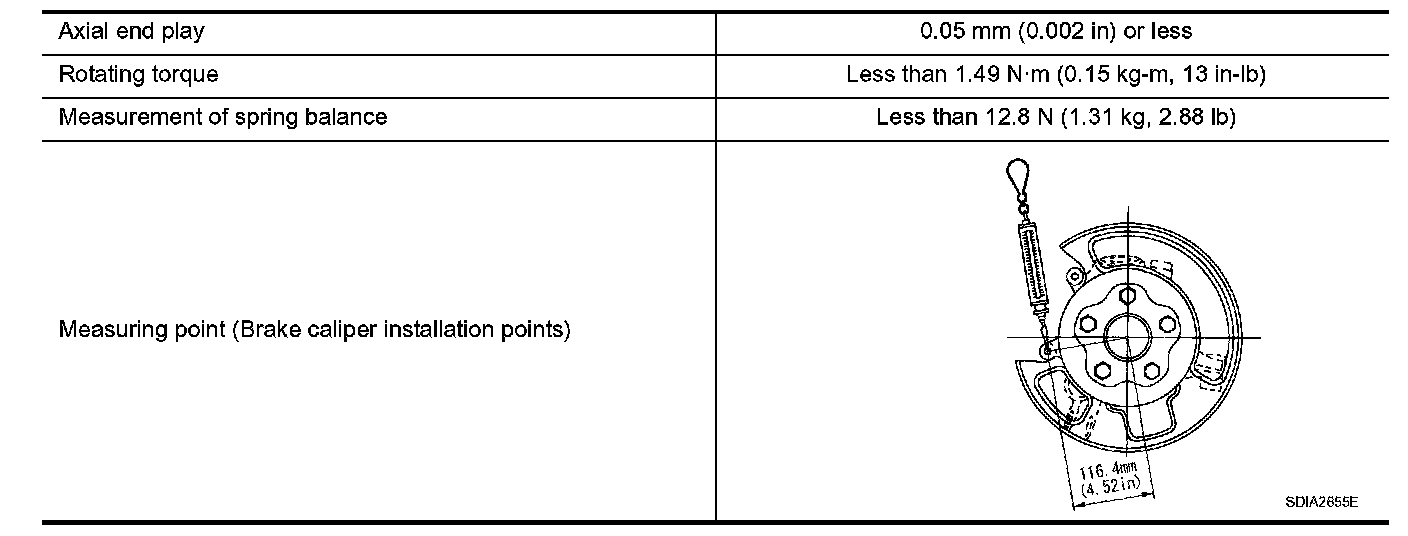

Wheel Bearing

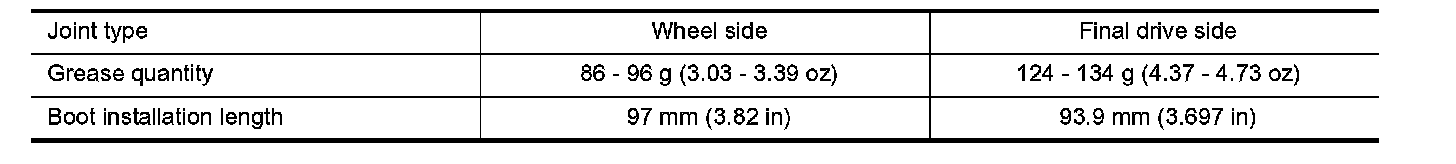

Drive Shaft
