System Specifications





General Specifications

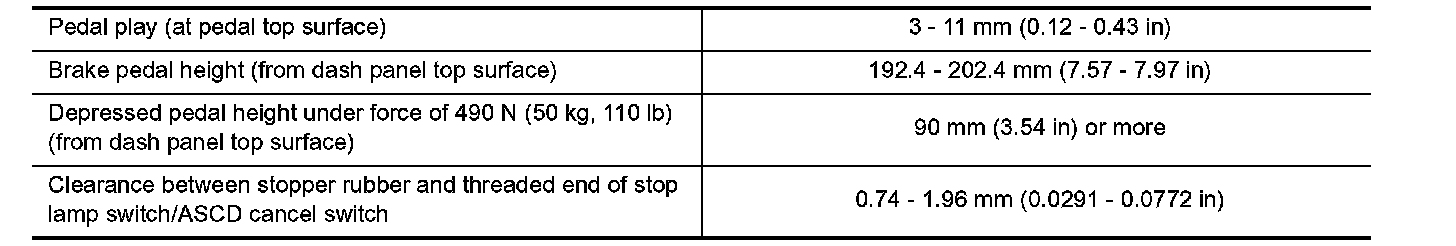

Brake Pedal





Check Valve

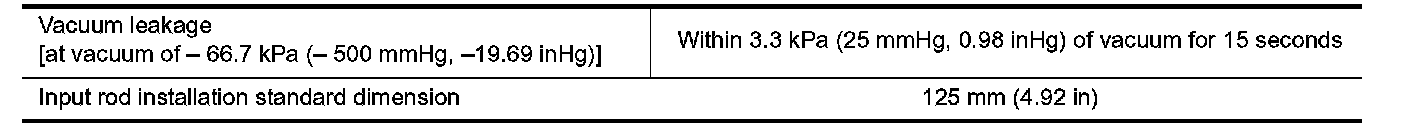

Brake Booster





Vacuum type

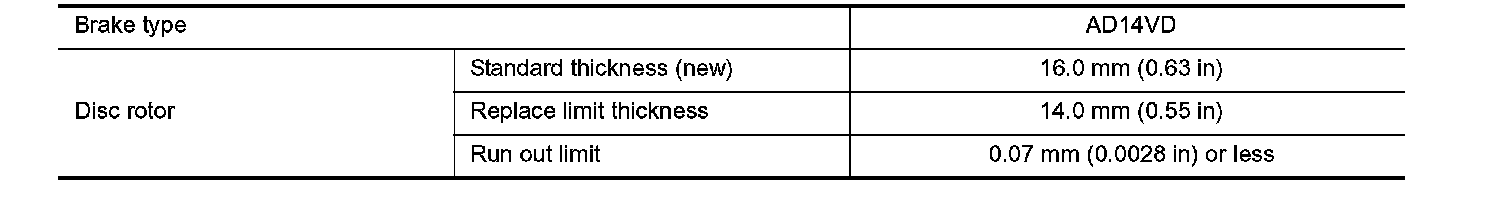

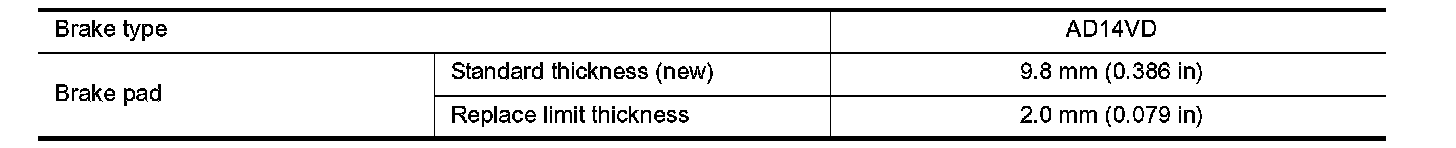

Front Disc Brake

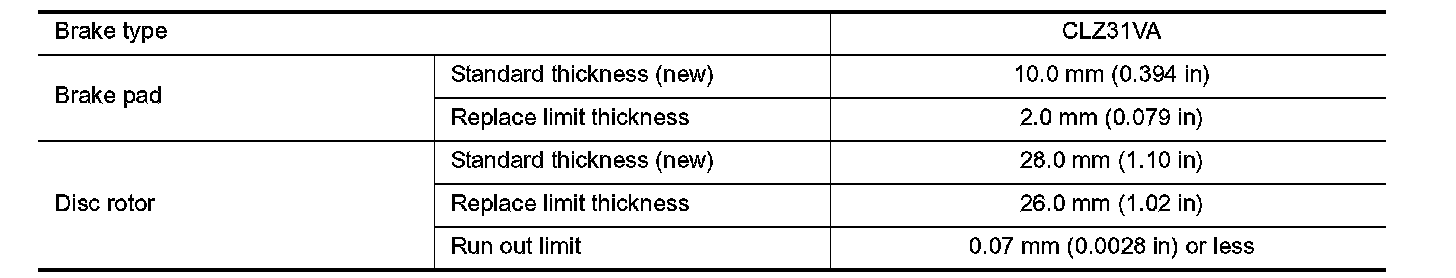

Rear Disc Brake
