Service Limits & General Specifications

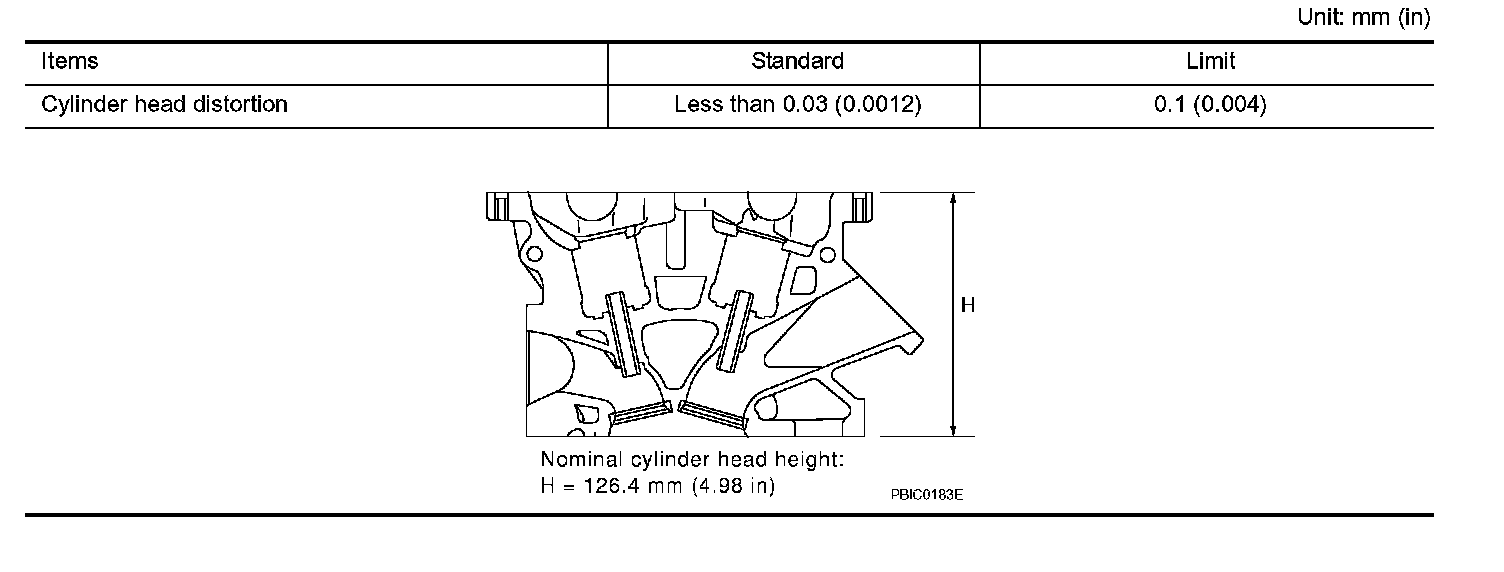

Head Distortion
Ream cylinder head recess diameter for service valve seat.
Oversize [0.5 mm (0.020 inch)]
Intake 37.500 - 37.516 mm (1.4764 - 1.4770 inch)
Exhaust 32.700 - 32.716 mm (1.2874 - 1.2880 inch)





CYLINDER HEAD
