Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2005
>>
Q45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Engine Lubrication
>>
System Specifications
System Specifications
Standard and Limit

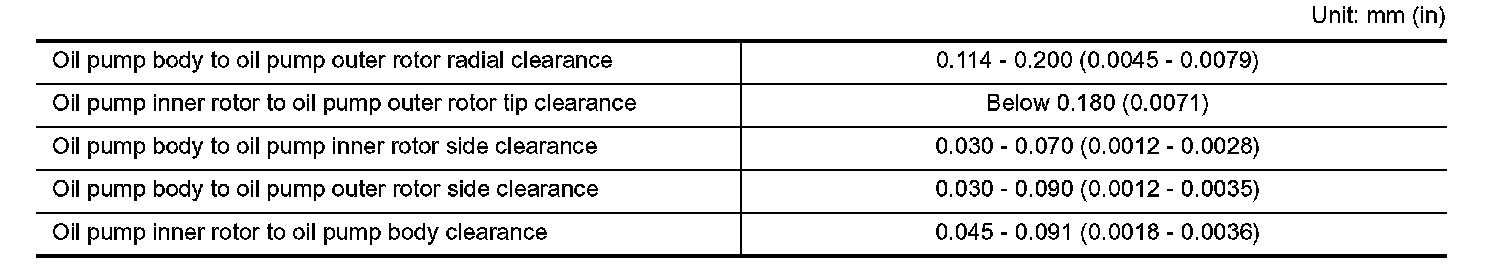

OIL PUMP
REGULATOR VALVE
