Intake Manifold

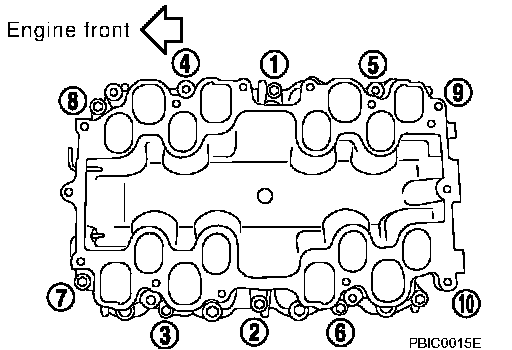

Intake Manifold (Lower)





Tighten in numerical order as shown in the figure.

NOTE: No. 7 and 8 have longer bolt length than others.

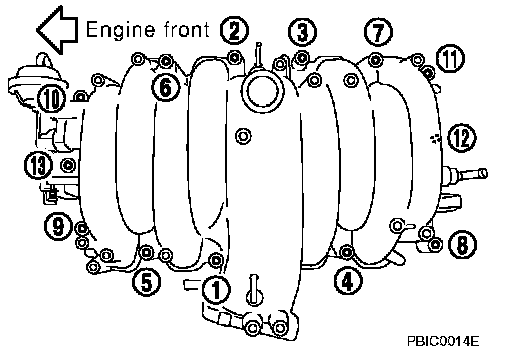

Intake Manifold (Upper)





Tighten in numerical order as shown in the figure.

NOTE: No. 4 to 7 have longer bolt length than others.
