Power Window Switch: Service and Repair

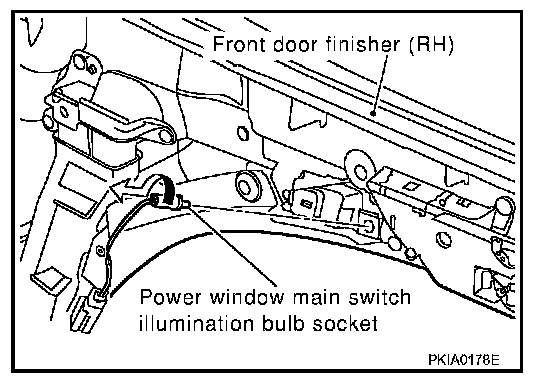

POWER WINDOW MAIN SWITCH ILLUMINATION 1.
Remove the front door finisher (RH). Refer to "FRONT DOOR FINISHER" in "EXTERIOR & INTERIOR (EI)" section.
2.
Turn the bulb socket counterclockwise and unlock it.
Power window main switch illumination :
12 V 1.4 W
