ASCD Steering Switch
Component InspectionASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M102.

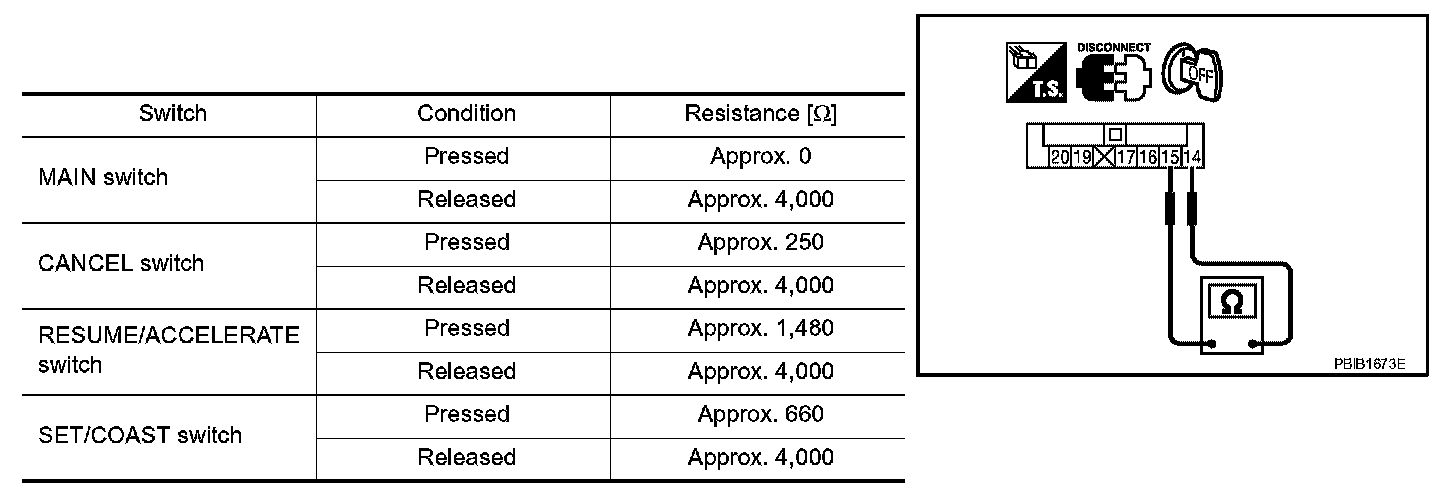

2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M102.
2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.
