Heater Core: Service and Repair

HEATER CORE

Removal and Installation

REMOVAL
1. Remove heater & cooling unit assembly. Service and Repair
2. Remove foot duct (left).
3. Remove mounting screws, and then remove heater pipe cover.
4. Remove heater pipe bracket.

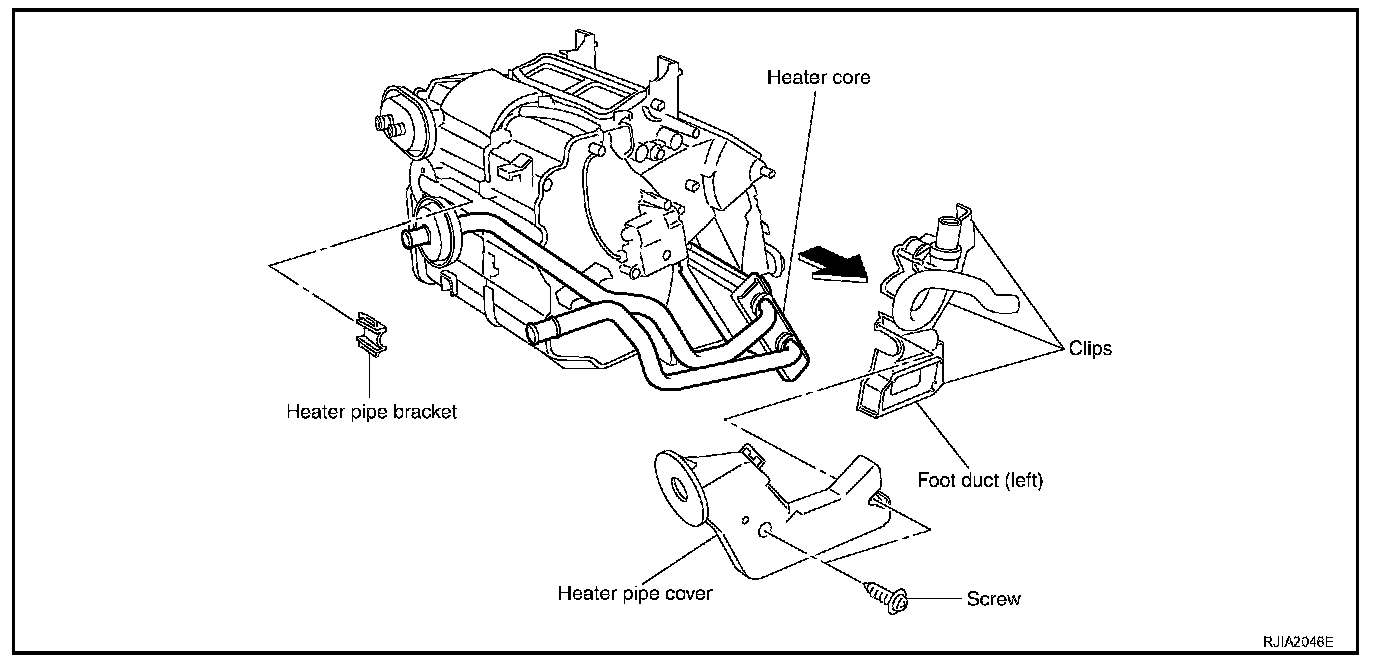

5. Slide heater core (shown in the figure) to driver side.

INSTALLATION
Installation is basically the reverse order of removal.
