Driver Seat Control Unit Power Supply and Ground Circuit Check

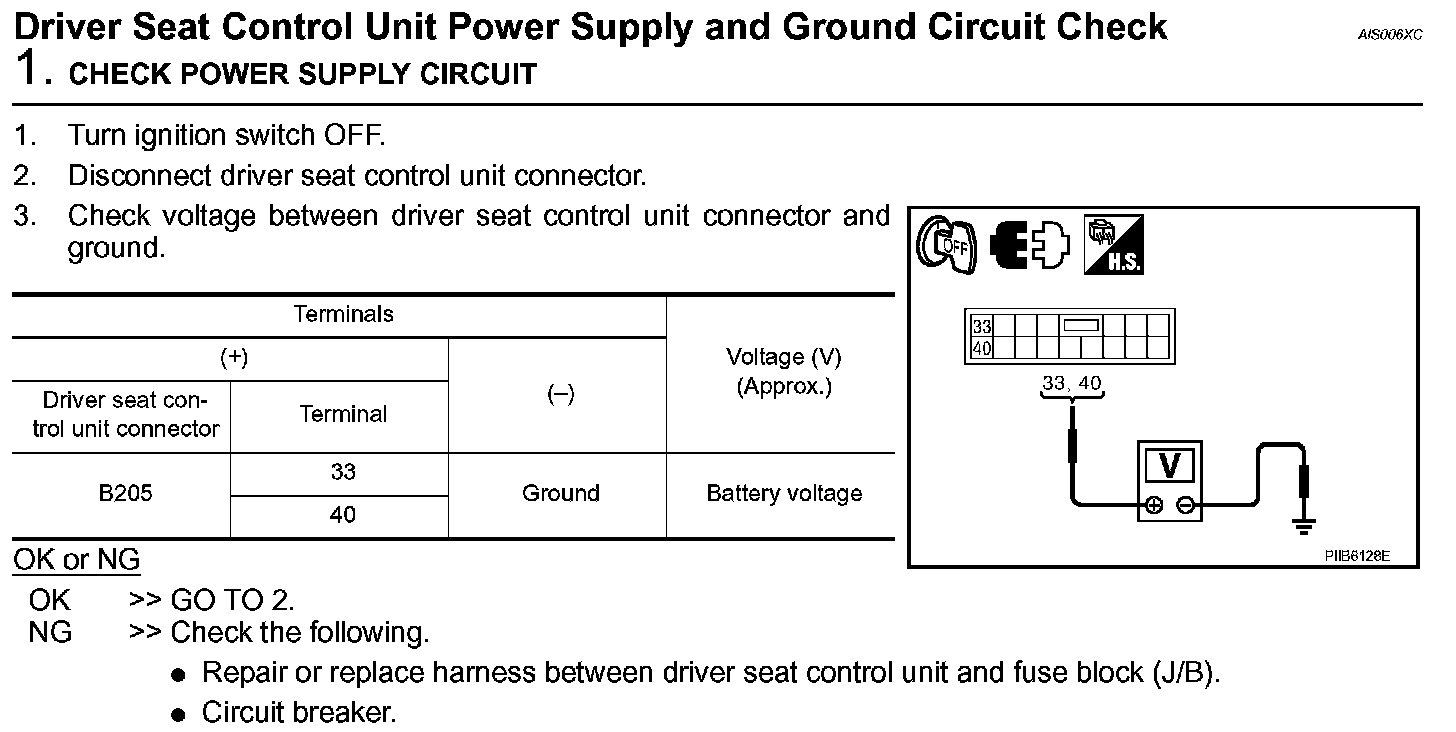

Driver Seat Control Unit Power Supply And Ground Circuit Check (Step 1):



Driver Seat Control Unit Power Supply And Ground Circuit Check (Step 3):
