Floor Side Fairing

FLOOR SIDE FAIRING




Removal and Installation of Under Cover (for V6 Engine Models)

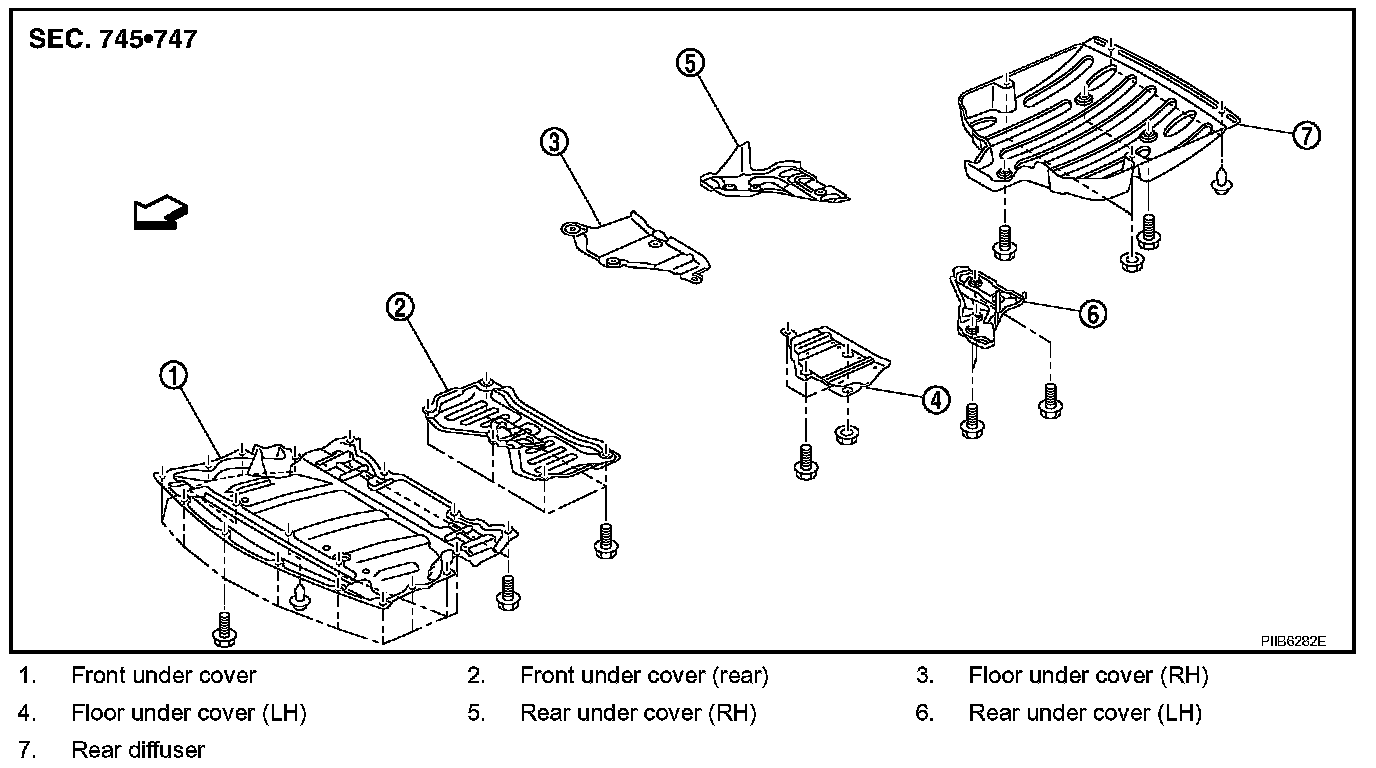

FRONT UNDER COVER

Removal
1. Remove front under cover mounting bolts and clip.
2. Remove front under cover.

Installation
Install in the reverse order of removal.

FRONT UNDER COVER (REAR)

Removal
1. Remove front under cover (rear) mounting bolts.
2. Remove front under cover (rear).

Installation
Install in the reverse order of removal.

FLOOR UNDER COVER

Removal
1. Remove floor under cover mounting bolts, nuts and clips.
2. Remove floor under cover.

Installation
Install in the reverse order of removal.

REAR UNDER COVER

Removal
1. Remove rear under cover mounting bolts.
2. Remove rear under cover.

Installation
Install in the reverse order of removal.

REAR DIFFUSER

Removal
1. Remove rear diffuser mounting bolts, nuts and clips.
2. Remove rear diffuser.

Installation
Install in the reverse order of removal.
