Lifting Switch (Rear) Circuit Check

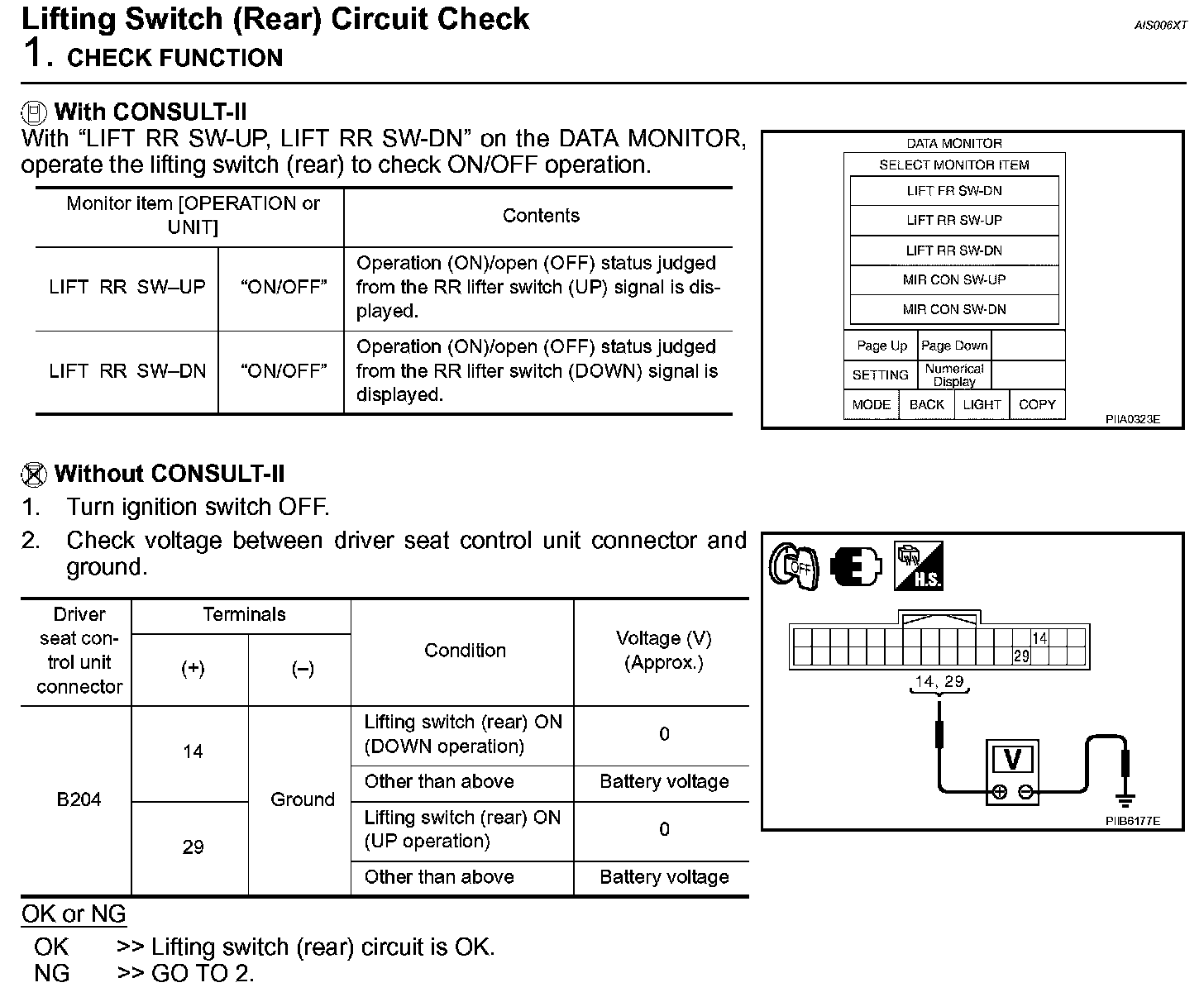

Lifting Switch (Rear) Circuit Check
Lifting Switch (Front) Circuit Check (Step 1):
Lifting Switch (Front) Circuit Check (Steps 2 - 3):
