Turn Signal Lamp: Service and Repair

Bulb Replacement/Removal and Installation of Side Turn Signal Lamp

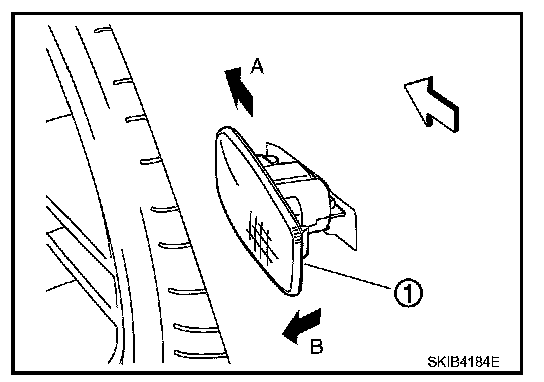

<=: Vehicle front

REMOVAL




1. While pressing the side turn signal lamp (1) to direction A (Vehicle front), pull direction B of it and remove.
2. Disconnect side turn signal lamp connector.

CAUTION:
- Support side turn signal lamp harness with tape so that it won't fall into the front fender.
- Fix the pawl side of side turn signal lamp housing back at first. Then install side turn signal lamp while pushing resin clip side.




3. Turn bulb socket (1) counterclockwise and unlock it.
4. Remove bulb (2).

Side turn signal lamp : 12 V - 5 W

INSTALLATION
Installation is the reverse order of removal.
