Encoder Circuit Check (Rear LH or RH)

Encoder Circuit Check (Rear LH Or RH) (Step 1):

Encoder Circuit Check (Rear LH Or RH) (Steps 2 - 3):

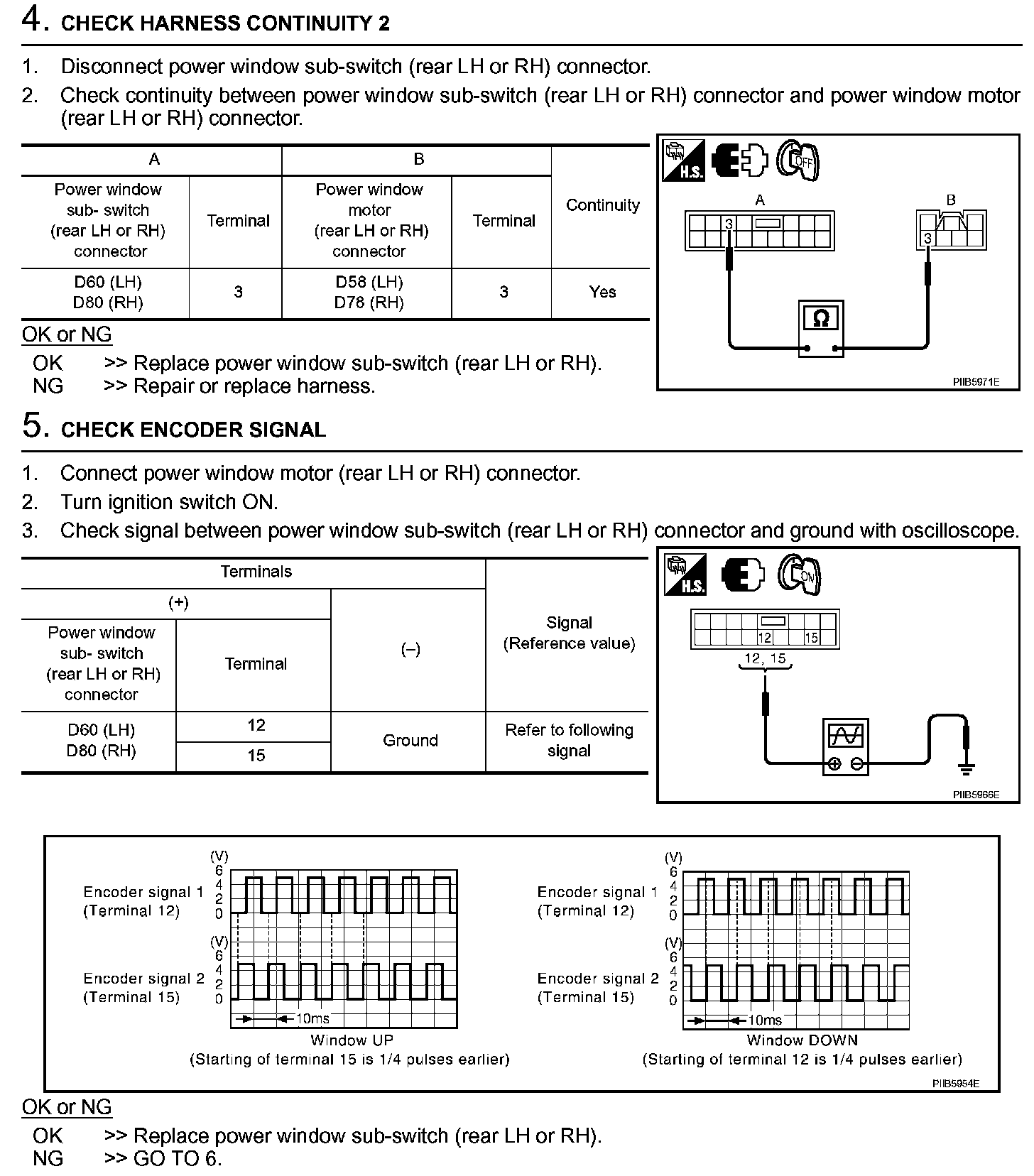

Encoder Circuit Check (Rear LH Or RH) (Steps 4 - 5):

Encoder Circuit Check (Rear LH Or RH) (Step 6):
