A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B2514
B2514

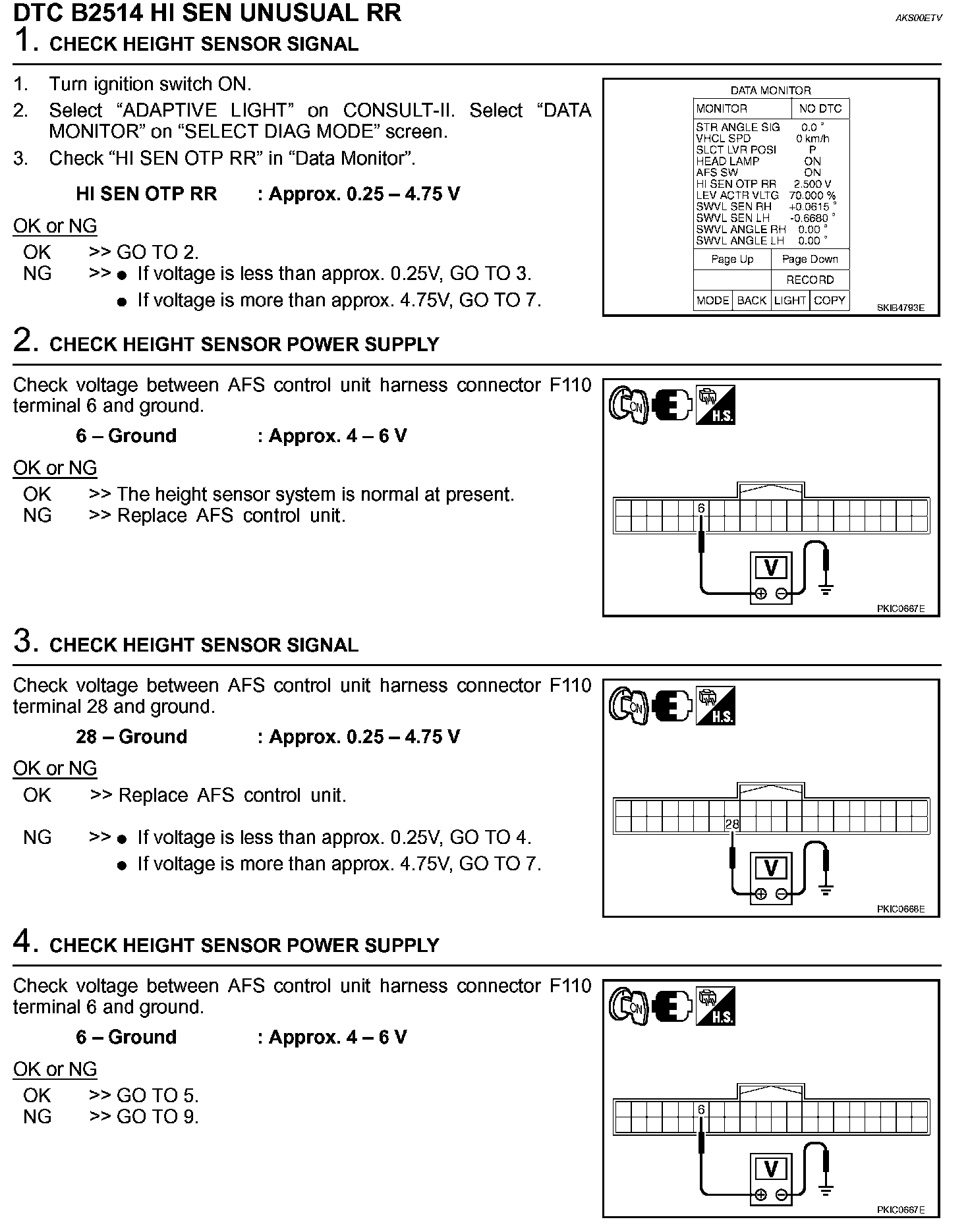

DTC B2514 HI SEN Unusual RR (Steps 1 - 4):

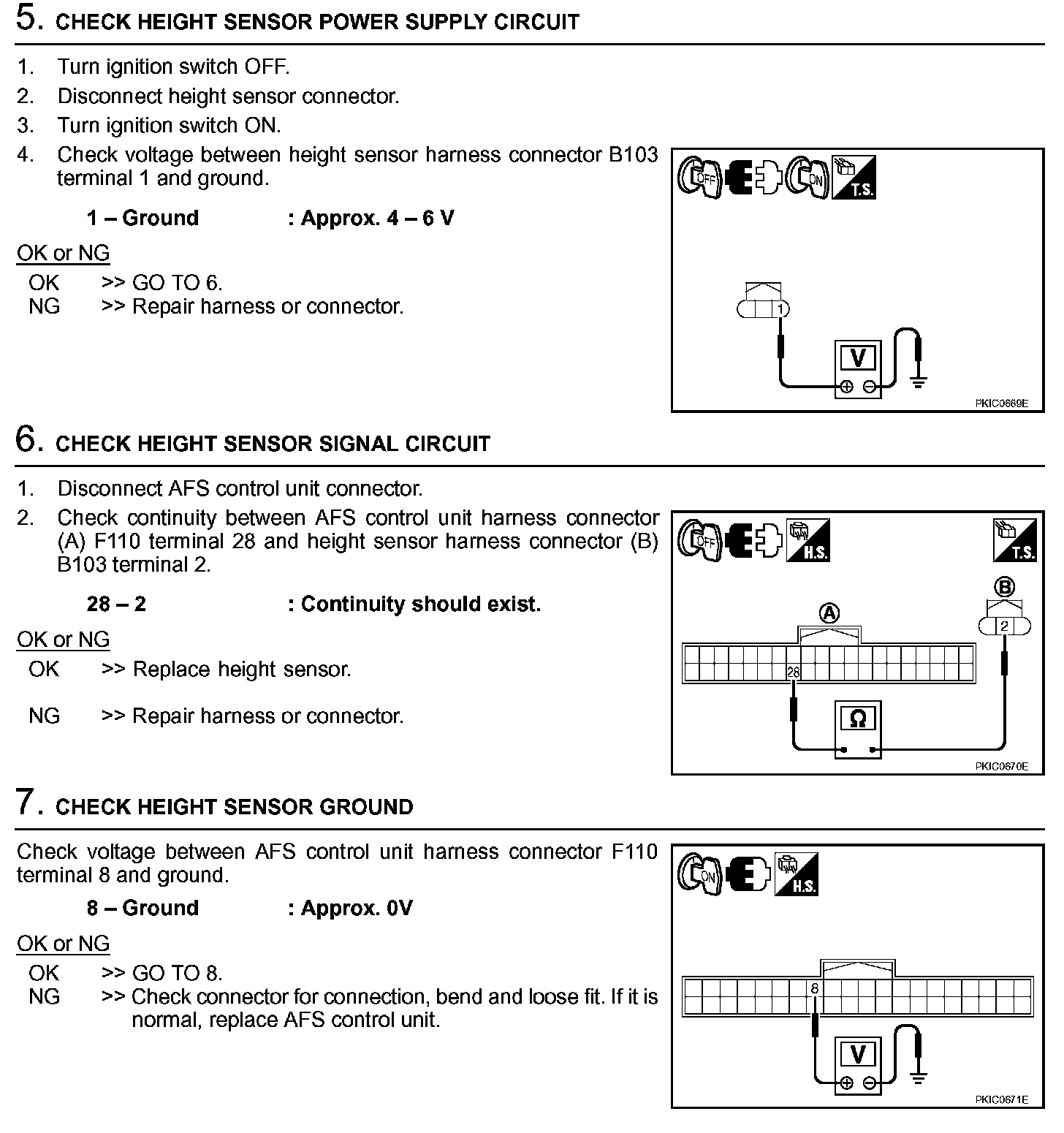

DTC B2514 HI SEN Unusual RR (Steps 5 - 7):

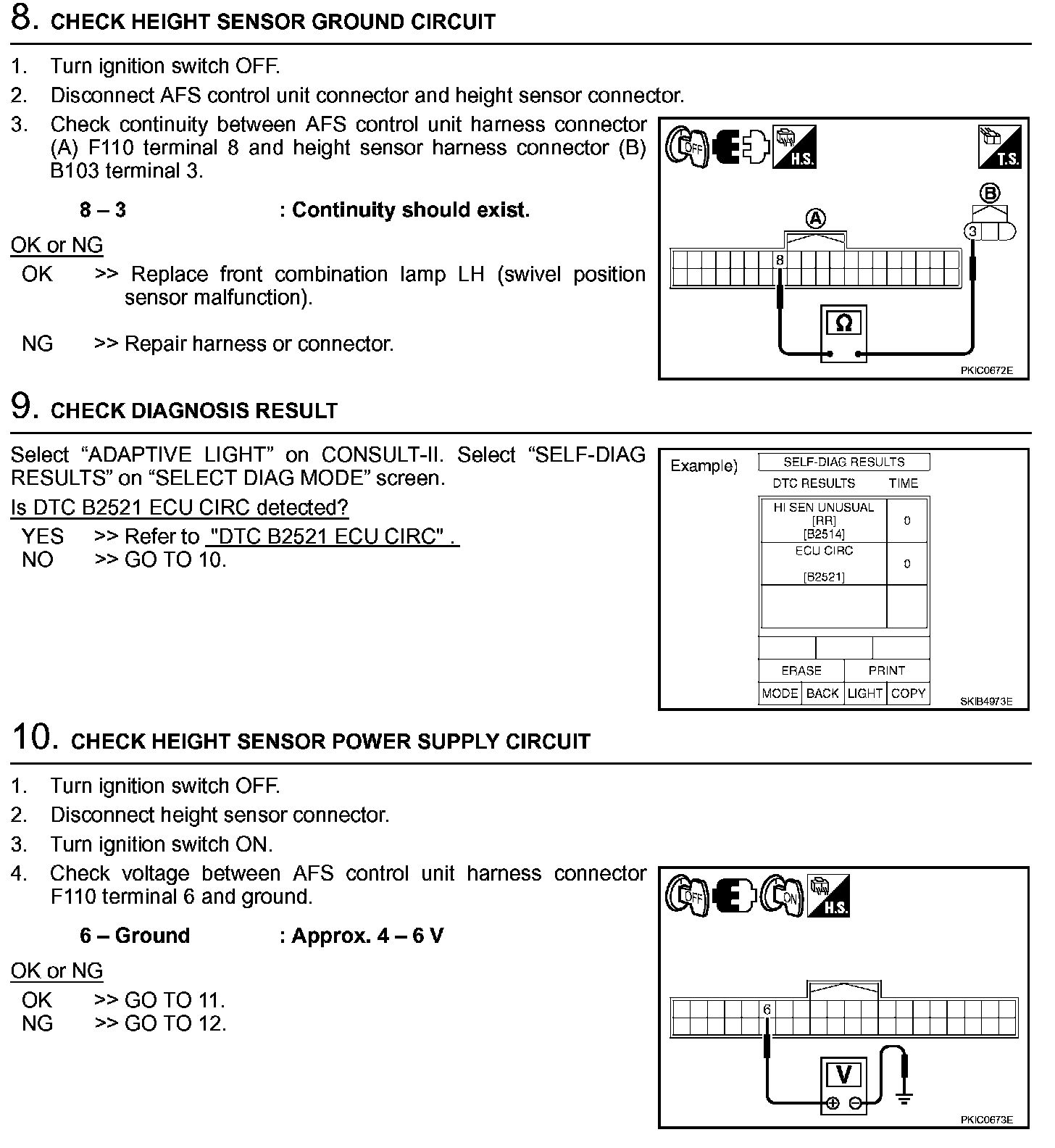

DTC B2514 HI SEN Unusual RR (Steps 8 - 10):

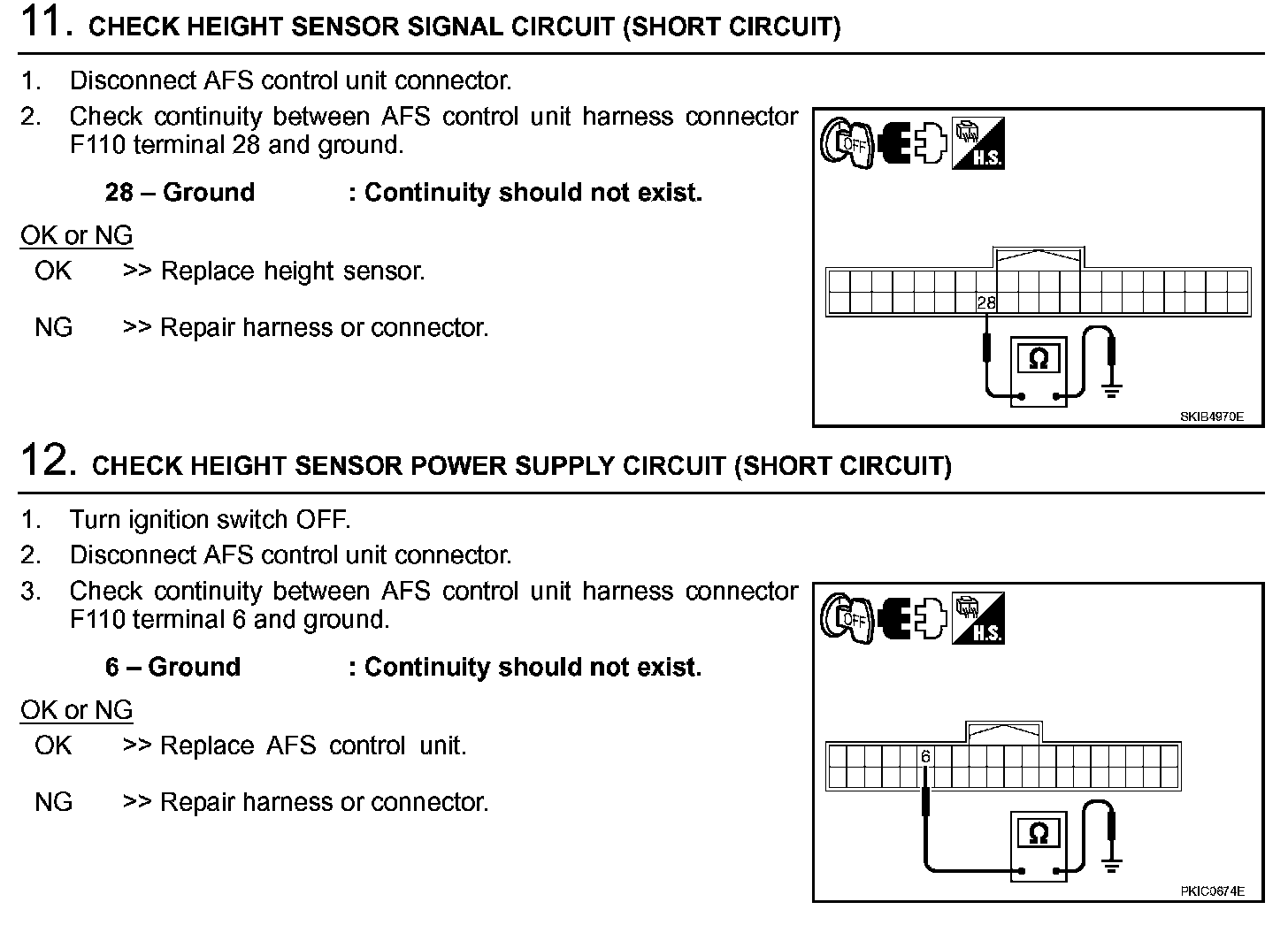

DTC B2514 HI SEN Unusual RR (Steps 11 - 12):
