DTC B2558 SHIFT POSITION

DIAGNOSIS DESCRIPTION
B2558 shift position input system monitors the A/T selector lever position. If there is the difference between the input from A/T device, the input from A/T assembly, and CAN communication input from A/T control unit, it judges that it is the malfunction and displays the DTC (Diagnostic Trouble Code)




TERMINALS AND REFERENCE VALUE FOR INTELLIGENT KEY UNIT INPUT

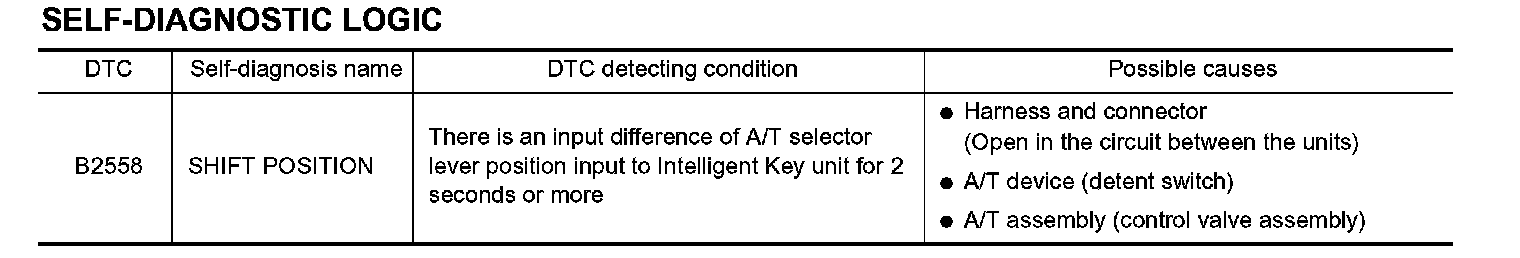

SELF-DIAGNOSTIC LOGIC

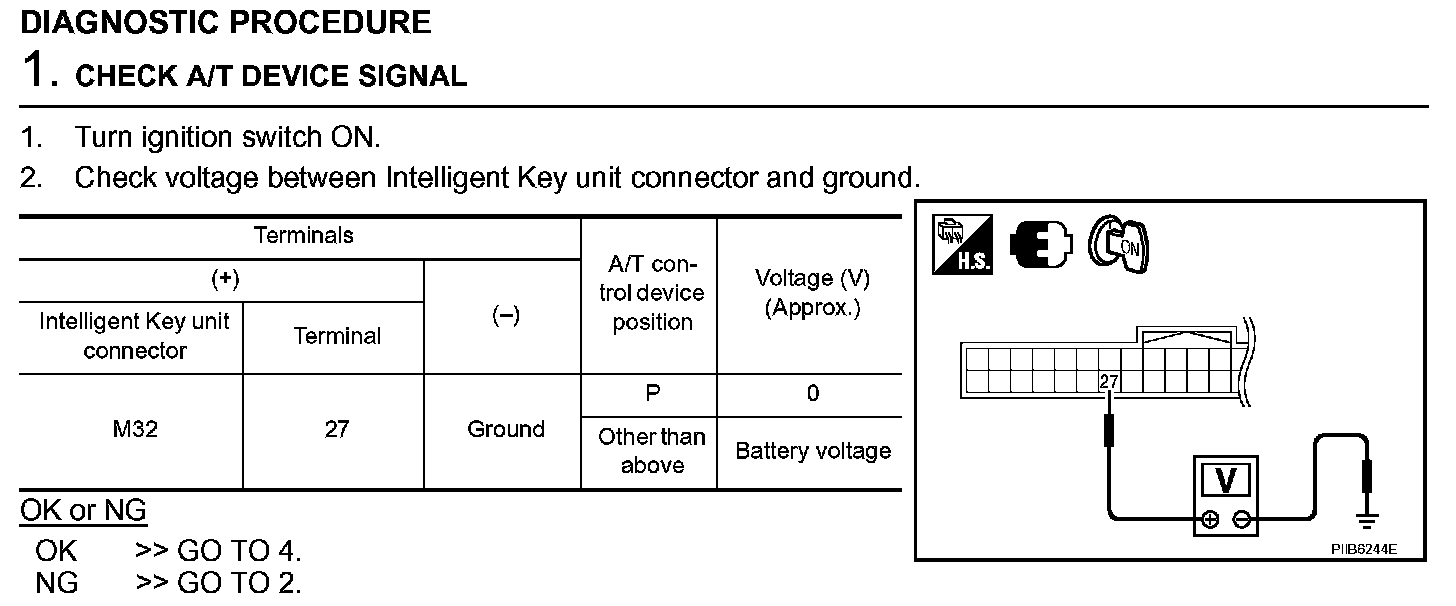

Diagnostic Procedure (Step 1):

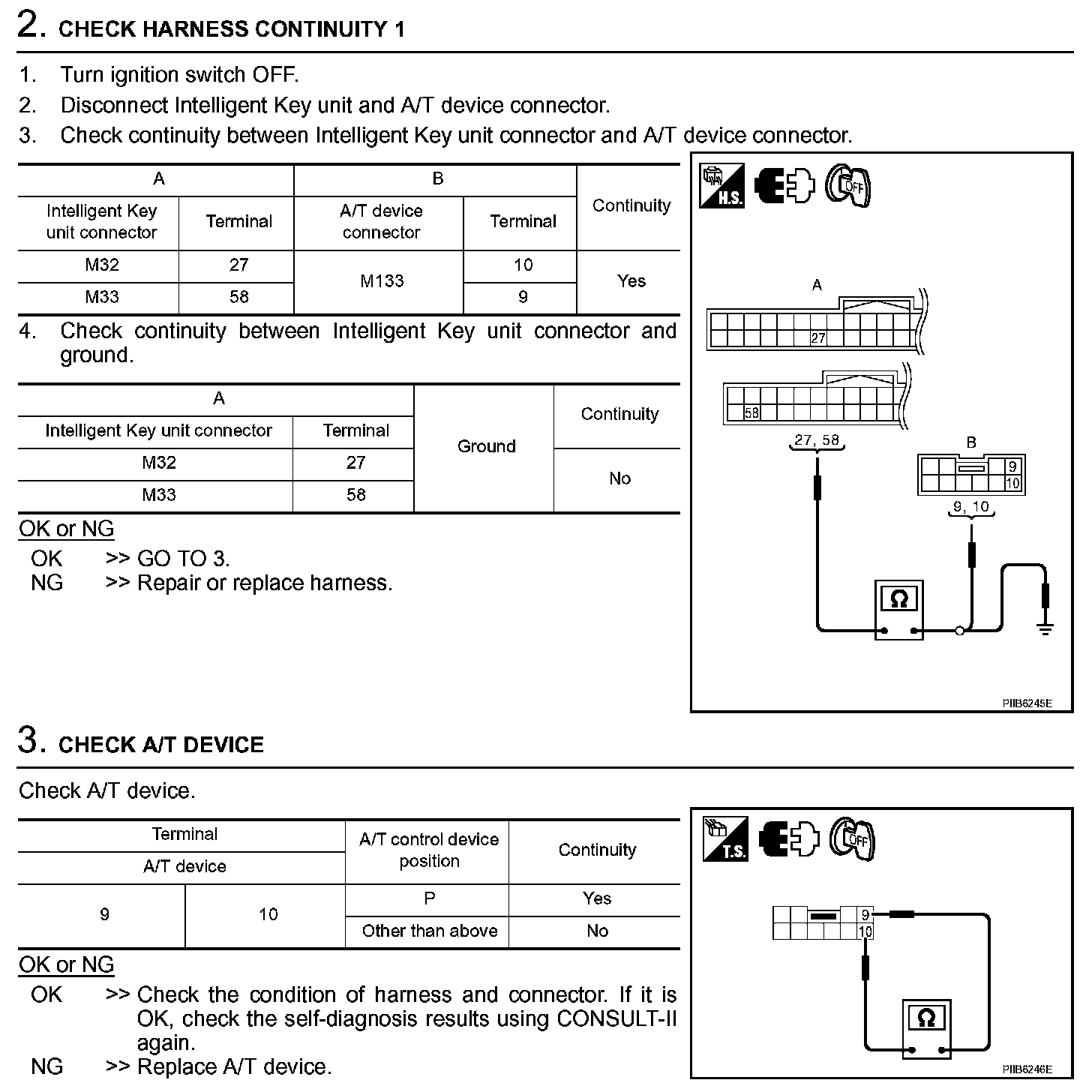

Diagnostic Procedure (Steps 2 - 3):




Diagnostic Procedure (Steps 4 - 5):




DIAGNOSTIC PROCEDURE
