ICC Vehicle Speed Sensor
DTC P1574 ICC VEHICLE SPEED SENSORComponent Description
The ECM receives two vehicle speed signals via CAN communication line. One is sent from "unified meter and A/C amp.", and the other is from TCM (Transmission control module). The ECM uses these signals for ICC control. Refer to "DESCRIPTION" for ICC functions.

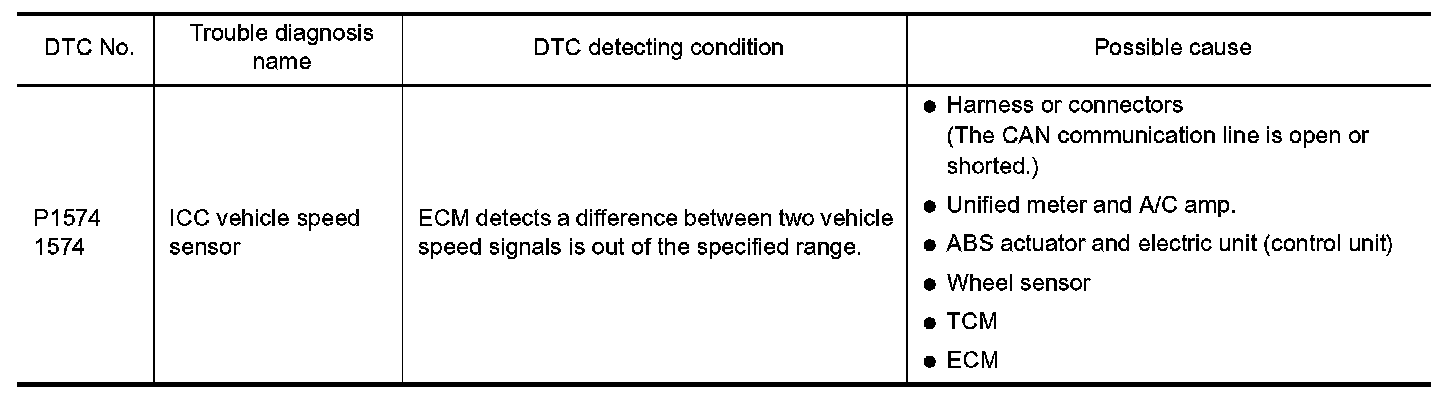

On Board Diagnosis Logic
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
- If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to EC-885, "DTC U1000, U1001 CAN COMMUNICATION LINE". Engine Control System
- If DTC P1574 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to EC-888, "DTC U1010 CAN COMMUNICATION". Engine Control System
- If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. Refer to EC-1199, "DTC P0500 VSS". P0500
- If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to EC-1214, "DTC P0605 ECM". P0605
DTC Confirmation Procedure
CAUTION: Always drive vehicle at a safe speed.
NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25MPH).
4. If DTC is detected, go to "Diagnostic Procedure".
WITH GST
Follow the procedure "WITH CONSULT-II".
Diagnostic Procedure:
Diagnostic Procedure
