Coolant

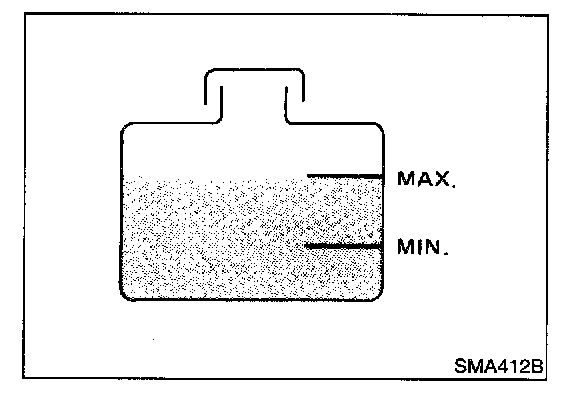

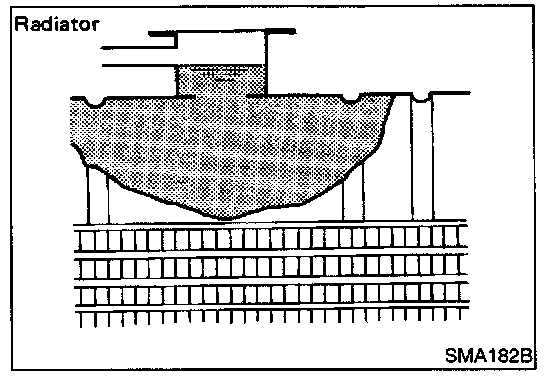

Fill radiator and reservoir tank to specified level.

Use genuine Nissan anti-freeze coolant or equivalent mixed with water (distilled or demineralized).


Engine coolant capacity (With reservoir tank) Approximately 10.3L (10 - 7/8 US qt, 9 - 1/8 Imp qt)
Reservoir tank capacity: 0.8L (7/8 US qt, 3/4 Imp qt)
