Front

FRONT AIR CONTROL

Removal

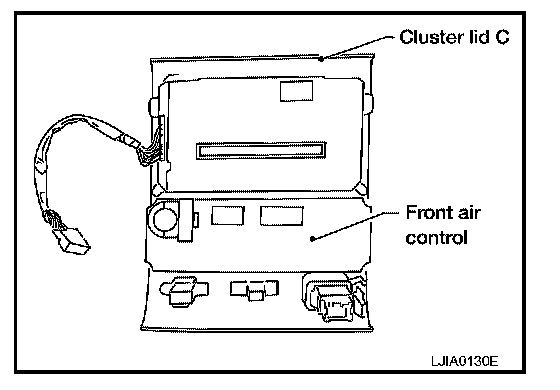

1. Remove the five control knobs from the front air control unit.
2. Remove the cluster lid C.




3. Remove the four screws securing the front air control unit to cluster lid C.
4. Remove the front air control unit.

Installation
Installation is in the reverse order of removal.
