Door Mirror Sensor Power Supply and Ground Circuit Inspection

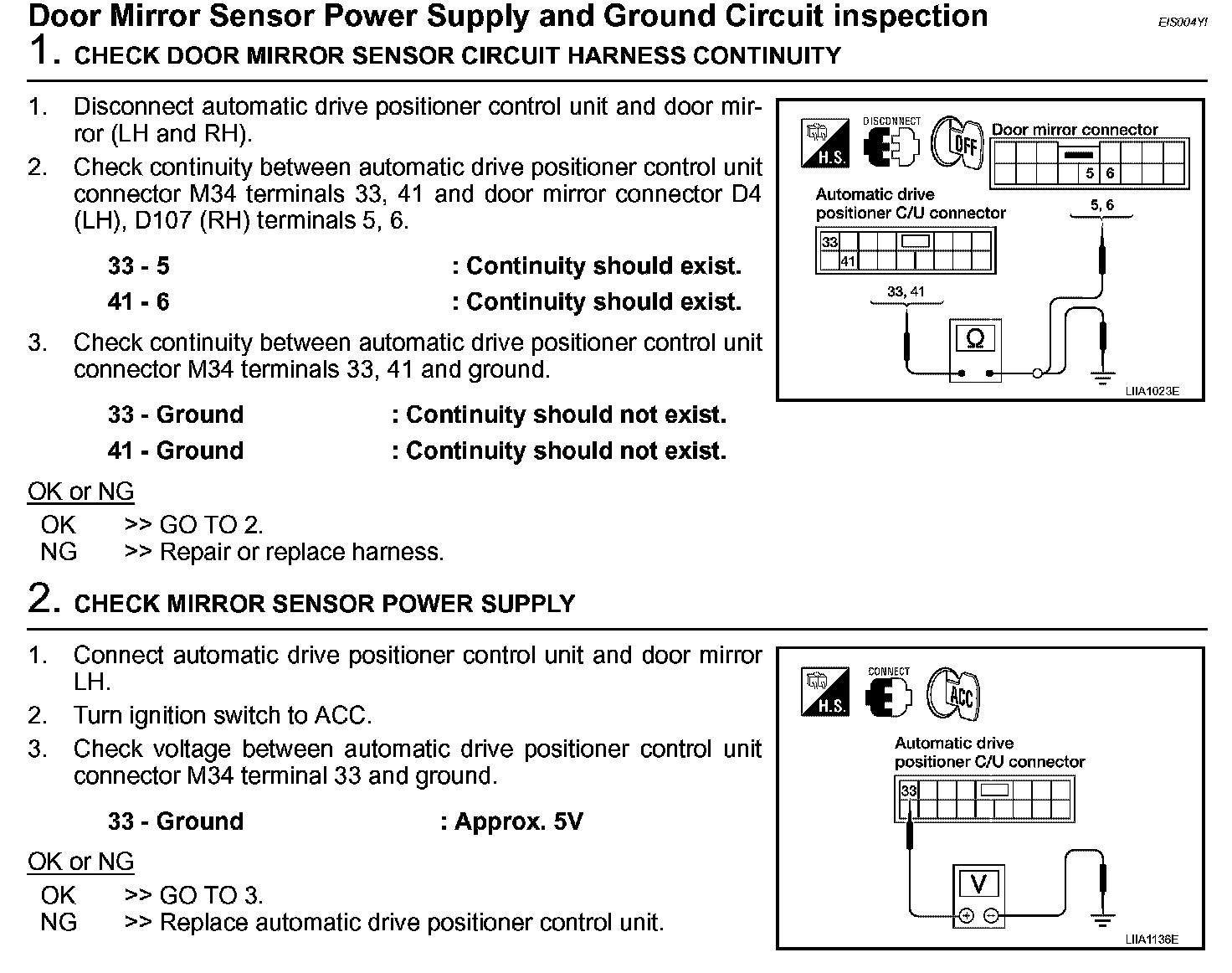

Door Mirror Sensor Power Supply And Ground Circuit Inspection (Steps 1 - 2):

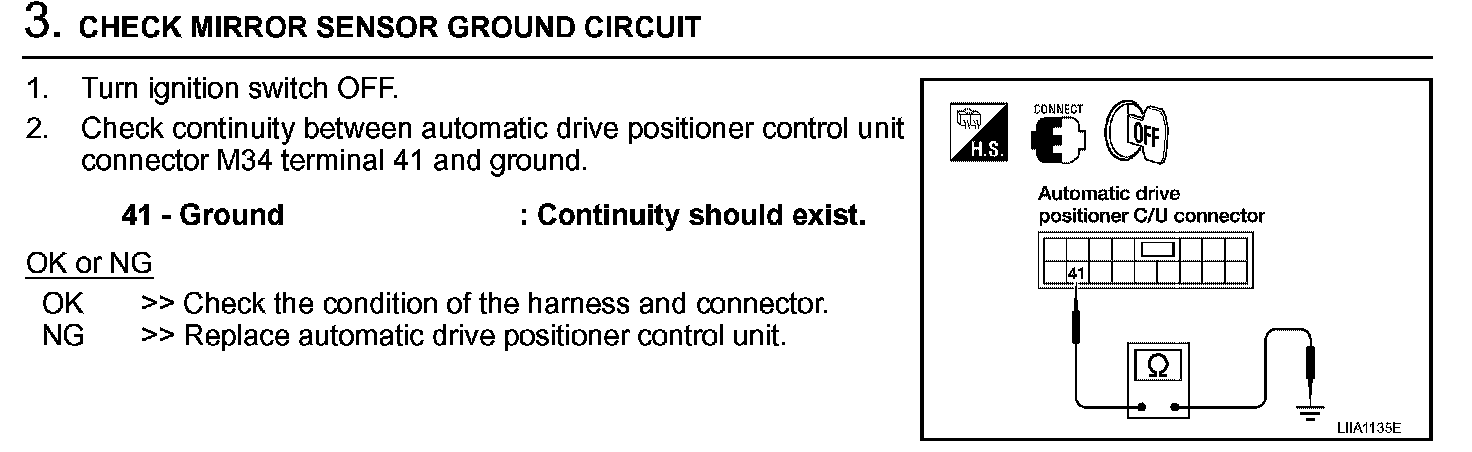

Door Mirror Sensor Power Supply And Ground Circuit Inspection (Step 3):
