Self Diagnosis Result

SELF-DIAGNOSIS RESULT

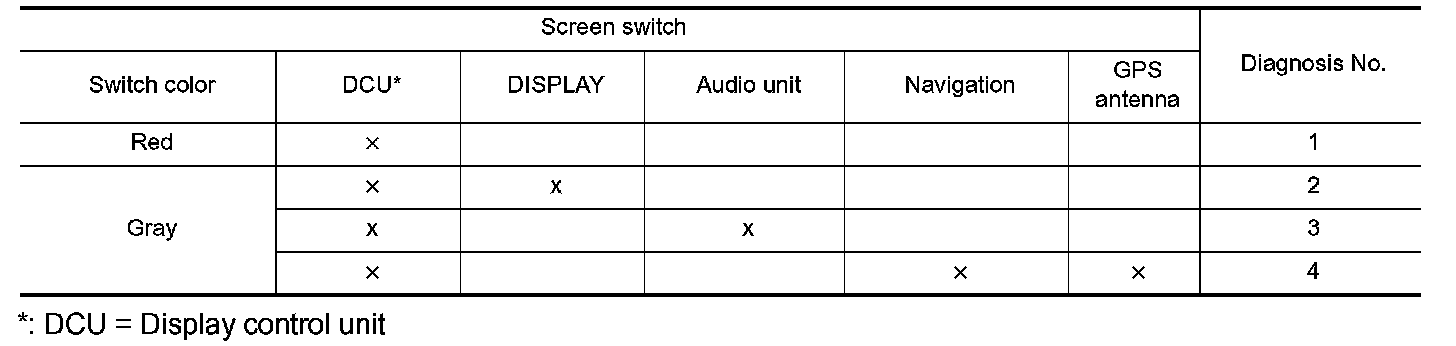

Quick reference table
1. Select a malfunctioning diagnosis No. in the diagnosis result quick reference table.
2. Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to "Wiring Diagram AV-94, -COMM-" AV-COMM




3. Turn the ignition switch OFF and perform self-diagnosis again.

CAUTION:
- When AV switch has a malfunction, you cannot start. Refer to Unable to Operate All of AV Switches (Unable to Start Self-Diagnosis)".
- When display unit has a malfunction, you cannot start. Refer to "Screen is Not Shown".
