Step E Install the Plastic Air Dam

Step E: Install the plastic air dam





^ The plastic air dam (seal-lower) is listed in the Parts Information.

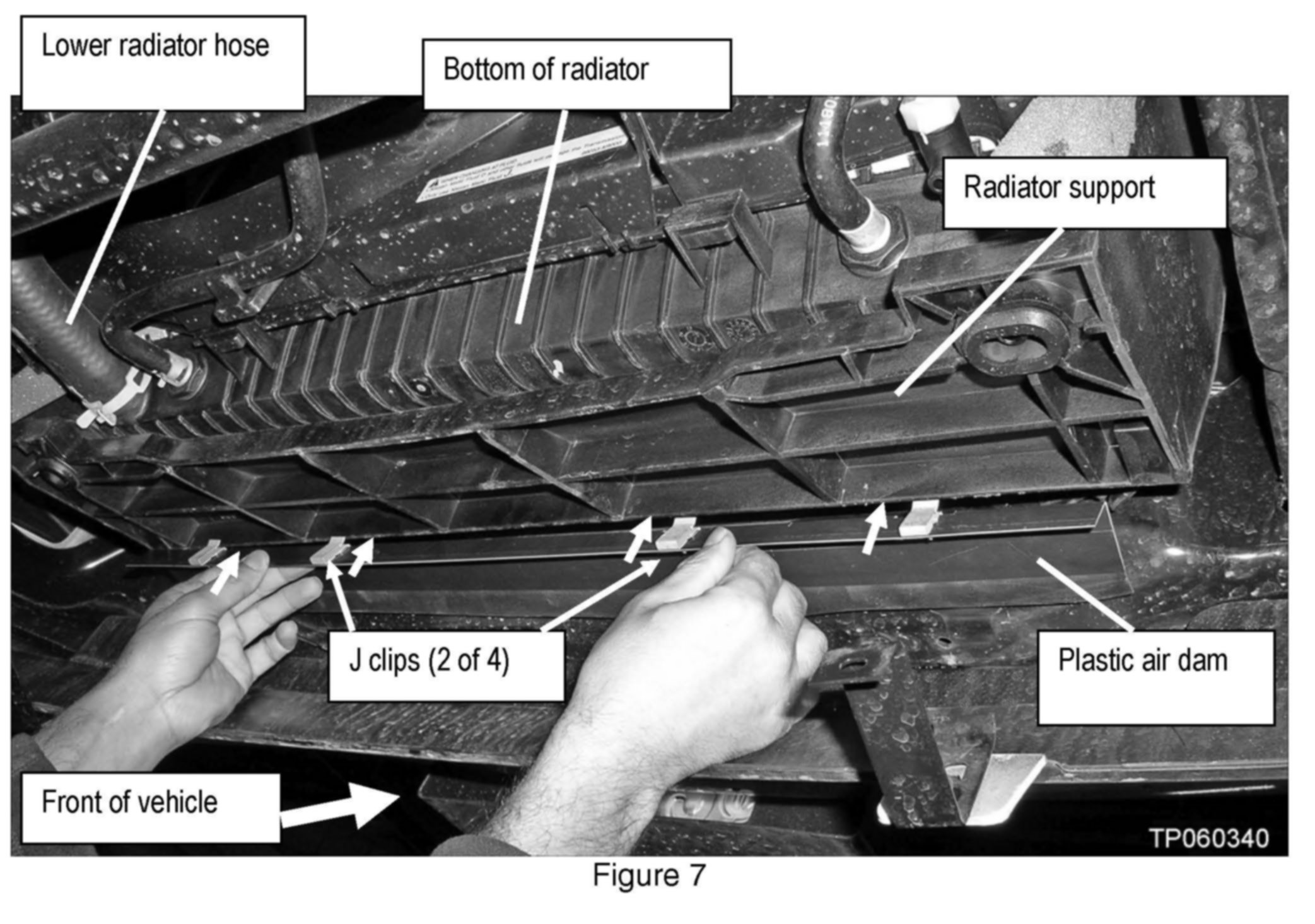

1. Install the plastic air dam as shown in Figure 7.

^ Slide/push the J-clips onto the radiator support.
