Ignition Coil: Service and Repair

Removal and Installation

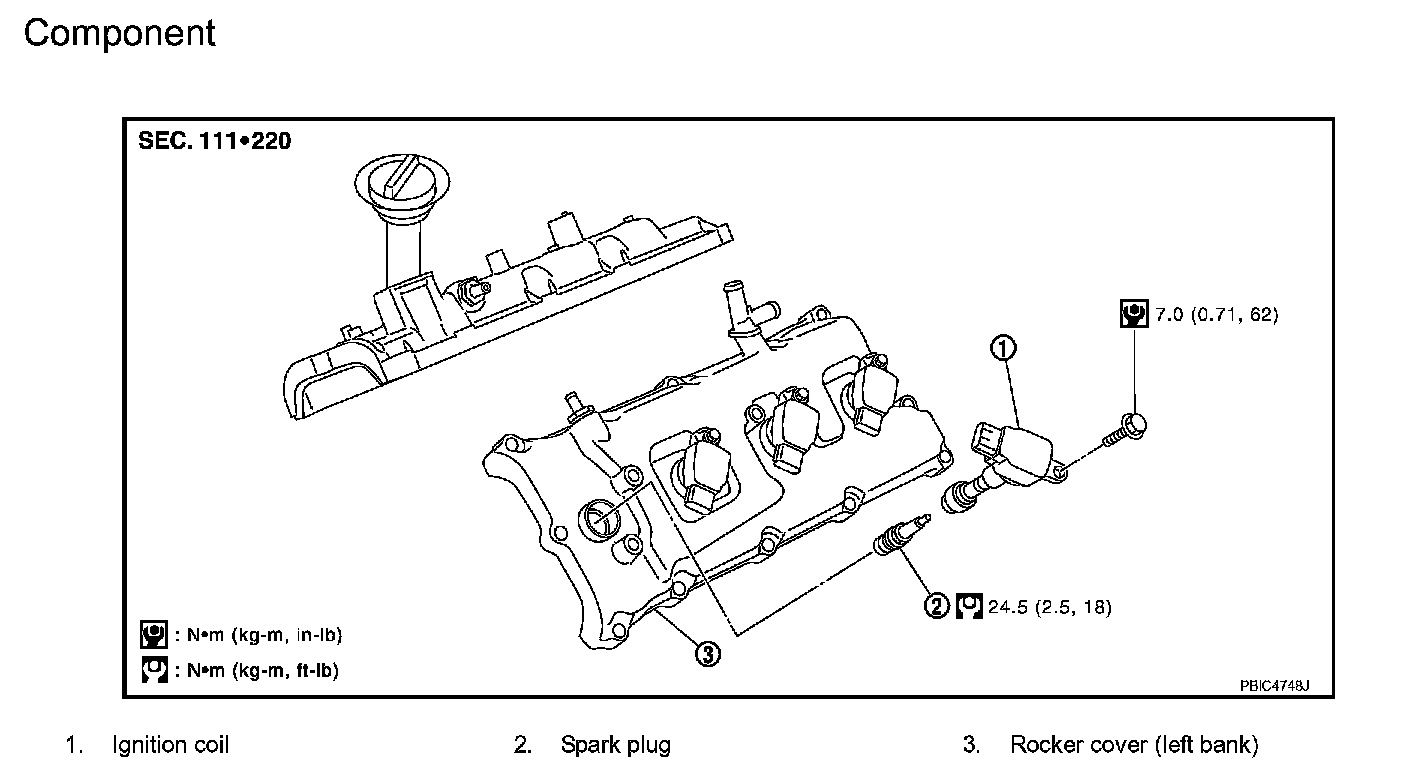

EM-187 Component:

REMOVAL
1. Remove engine cover with power tool.
2. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator assembly.
3. Disconnect harness connector from ignition coil.
4. Remove ignition coil.

CAUTION:
Do not shock it.

INSTALLATION
Install in the reverse order of removal.
