Automatic Drive Positioner Control Unit

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Removal and Installation

REMOVAL

CAUTION: When removing and installing, use shop cloths to protect parts from damage.




1. Remove the battery negative terminal.
2. Remove the instrument driver lower panel.

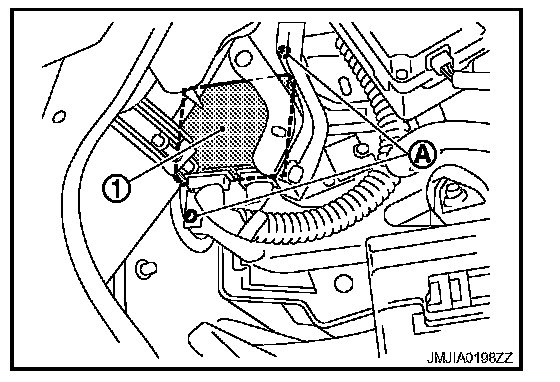

3. Remove the screws (A).
4. Remove automatic drive positioner control unit (1).

INSTALLATION
Install in the reverse order of removal.

CAUTION: Be sure to clump the harness to the right place.

NOTE: After installing the driver seat, perform additional service when removing battery negative terminal. Refer to Testing and Inspection
