CONSULT-III Function (ICC)

CONSULT-III Function (ICC)

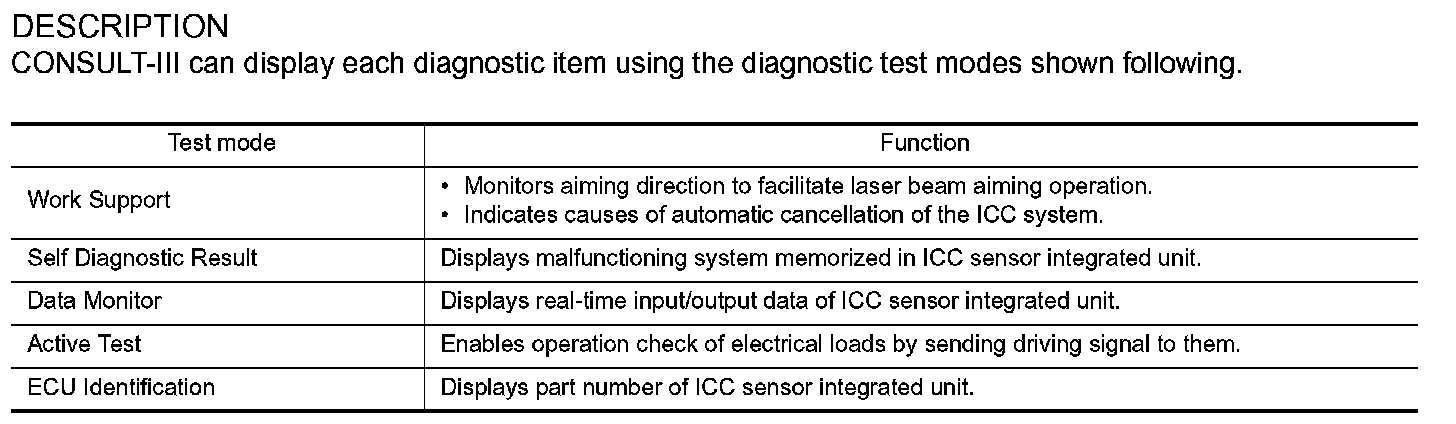

DESCRIPTION

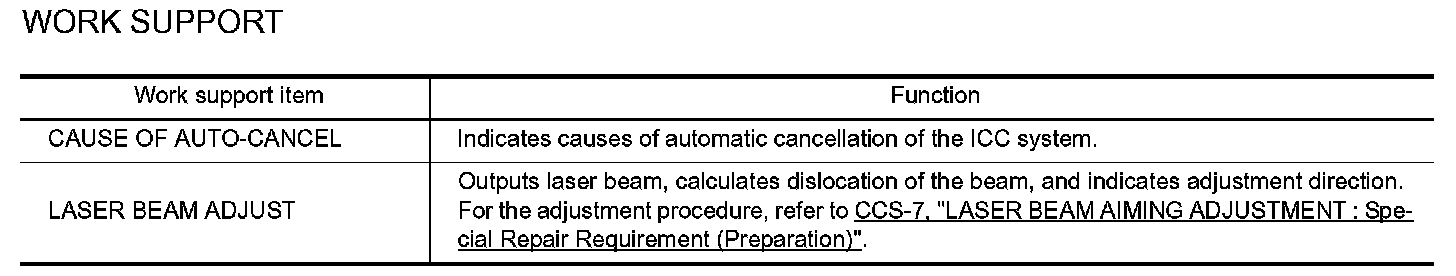

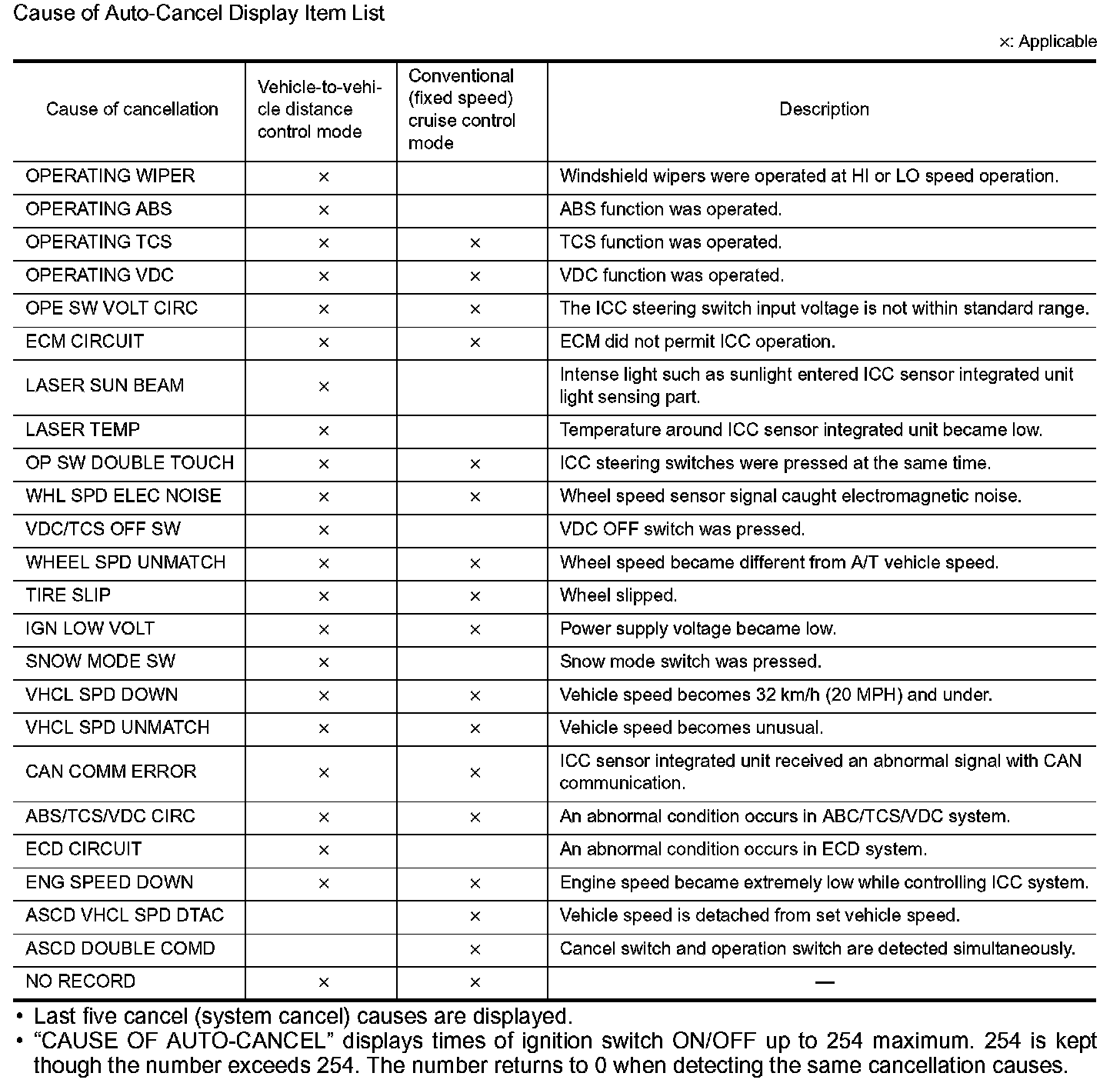

WORK SUPPORT









SELF DIAGNOSTIC RESULT
For details, refer to CCS-93, "DTC Index". Cruise Control

NOTE:
"DTC RESULTS" and "TIME" are indicated on "Self Diagnostic Result". "TIME" is used as a reference data of diagnosis. It shows when malfunction is detected.

"TIME" shows the following.
- 0: malfunction is detected at present (from malfunction detection to ignition switch OFF).

CAN communication (U1000, U1010)
- 1 ~ 39: Displays when it is normal at present and finds malfunction in the past. It increases like 0--->1--->2...38--->39 after returning to the normal condition whenever IGN OFF--->ON. If it is over 39, it is fixed to 39 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again in the process.
Other than CAN communication (other than U1000, U1010)

- 1 ~ 49: Displays when it is normal at present and finds malfunction in the past. It increases like 0--->1--->2...48--->49 after returning to the normal condition whenever IGN OFF--->ON. If it is over 49, it is fixed to 49 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again in the process.

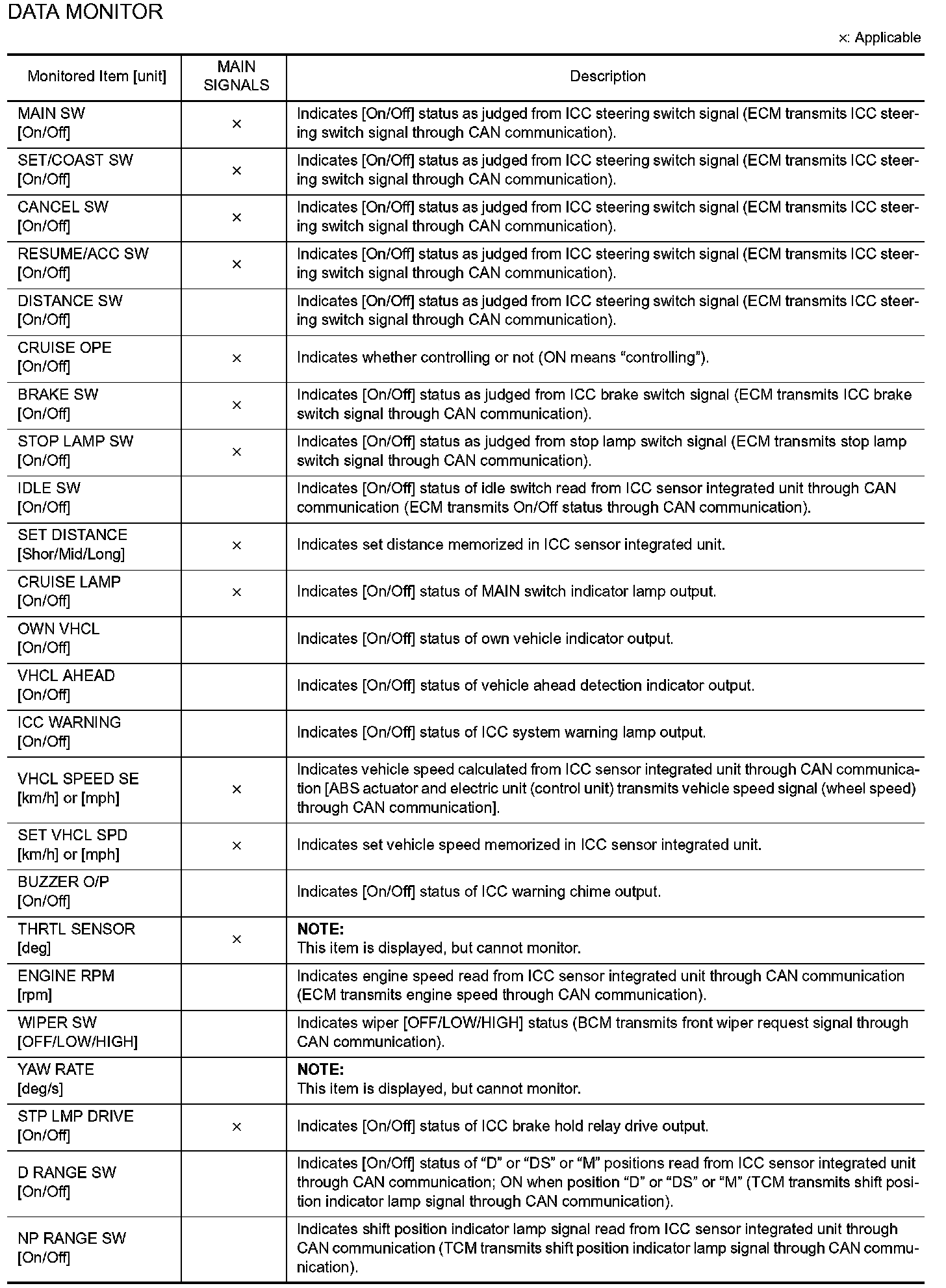

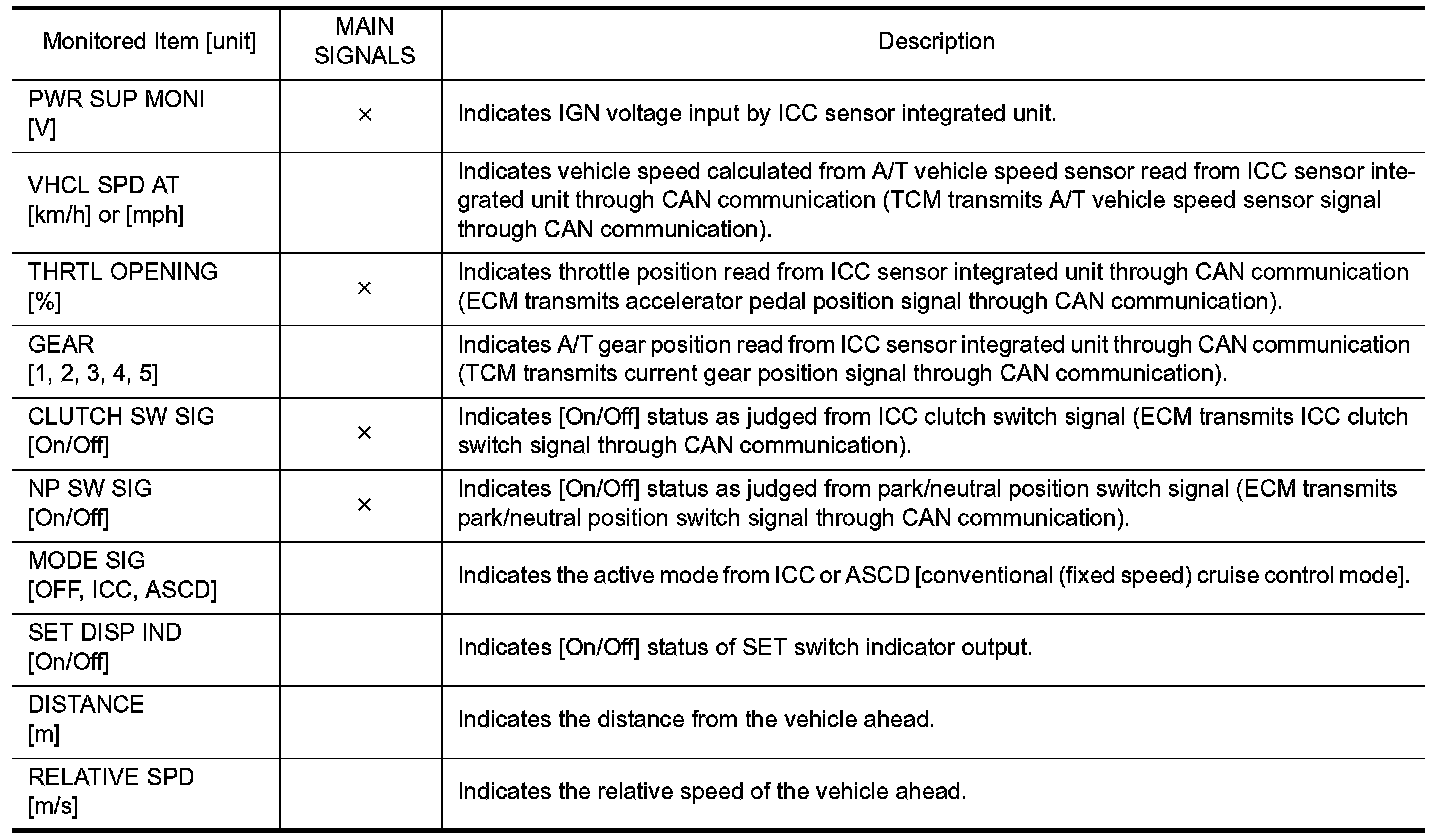

DATA MONITOR

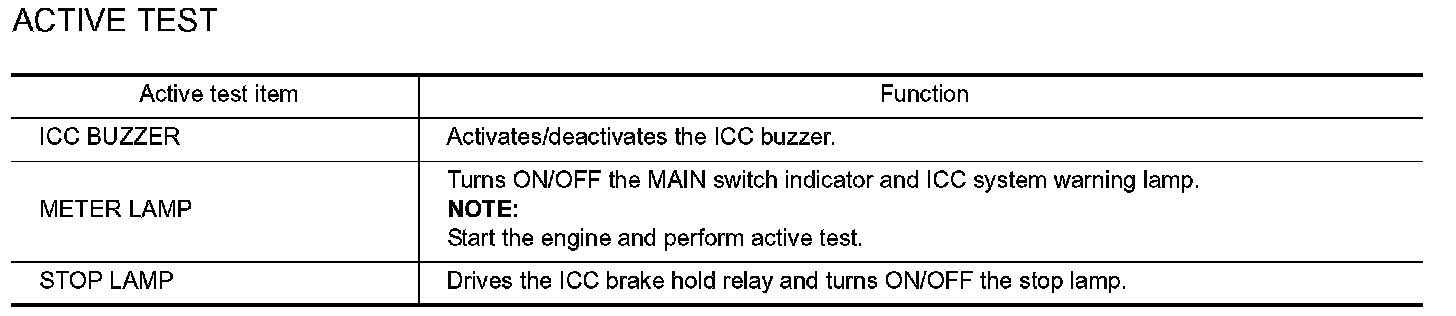

ACTIVE TEST






ECU IDENTIFICATION
Displays the part number of the ICC sensor integrated unit.
