Exploded View

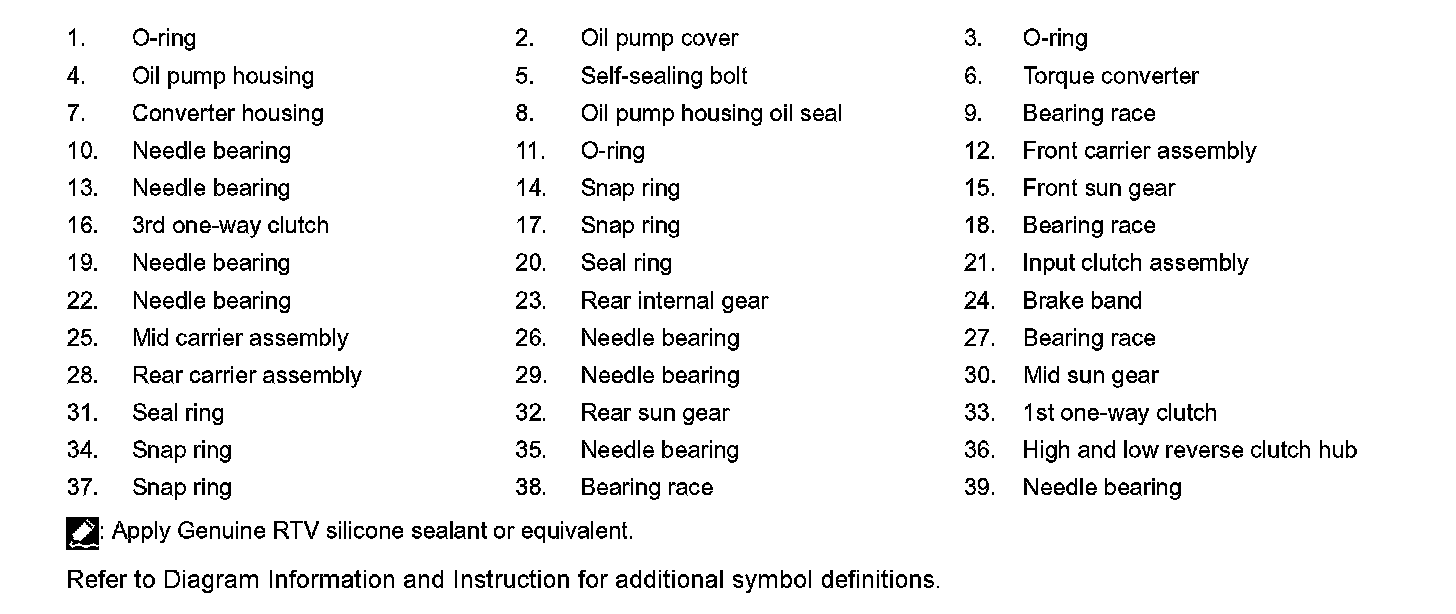

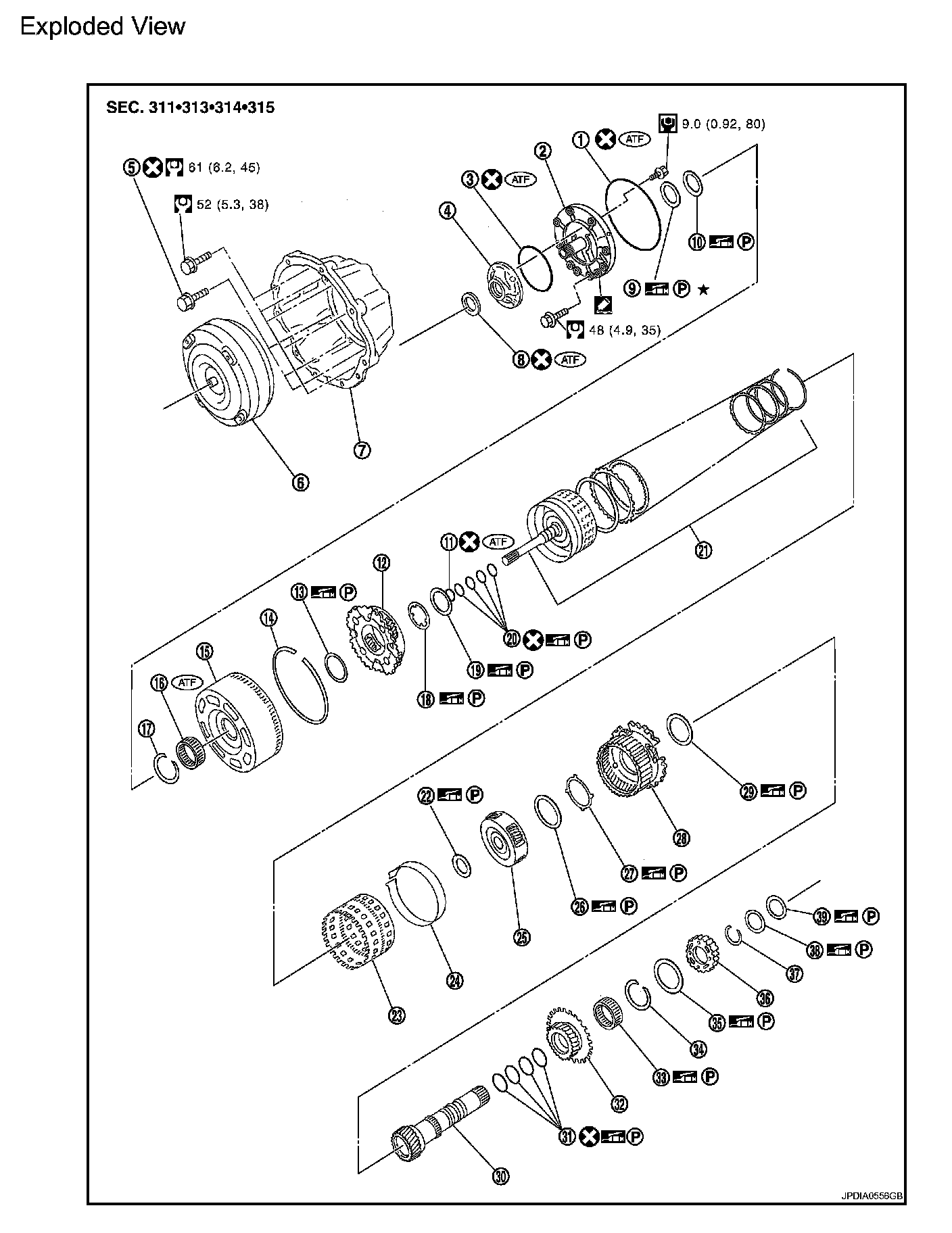

TM-283 Exploded View (Part 1):

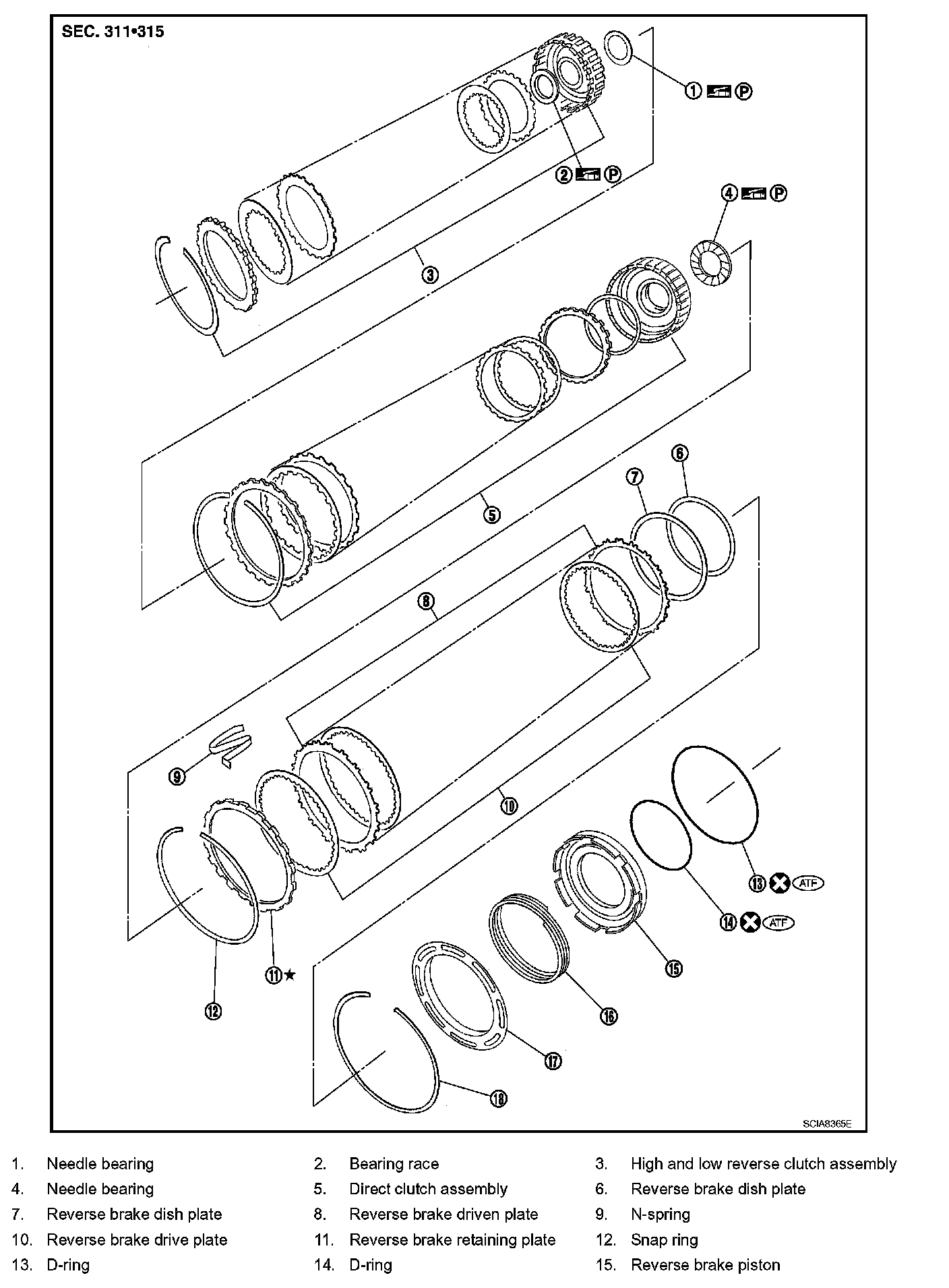

TM-283 Exploded View (Part 2):

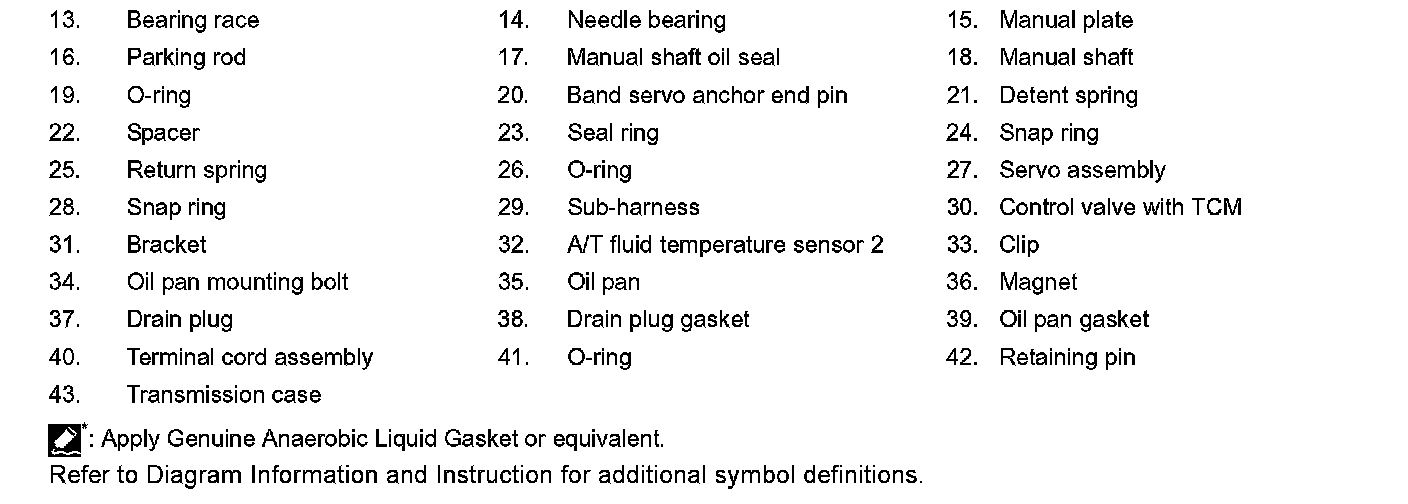

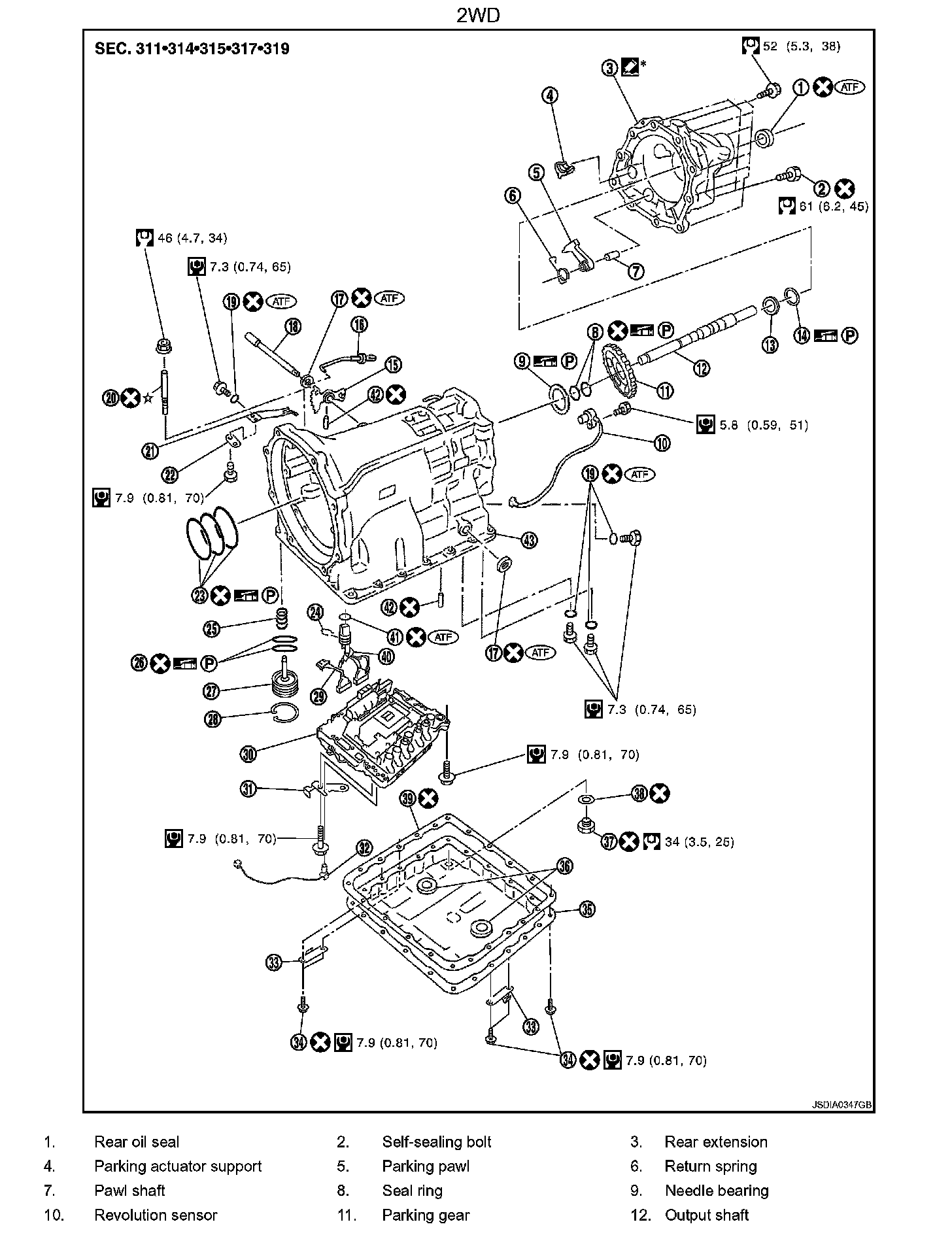

TM-285 Exploded View (Part 1):

TM-285 Exploded View (Part 2):

TM-286 Exploded View (Part 1):

TM-286 Exploded View (Part 2):
