Parking Brake Control
Parking Brake Control

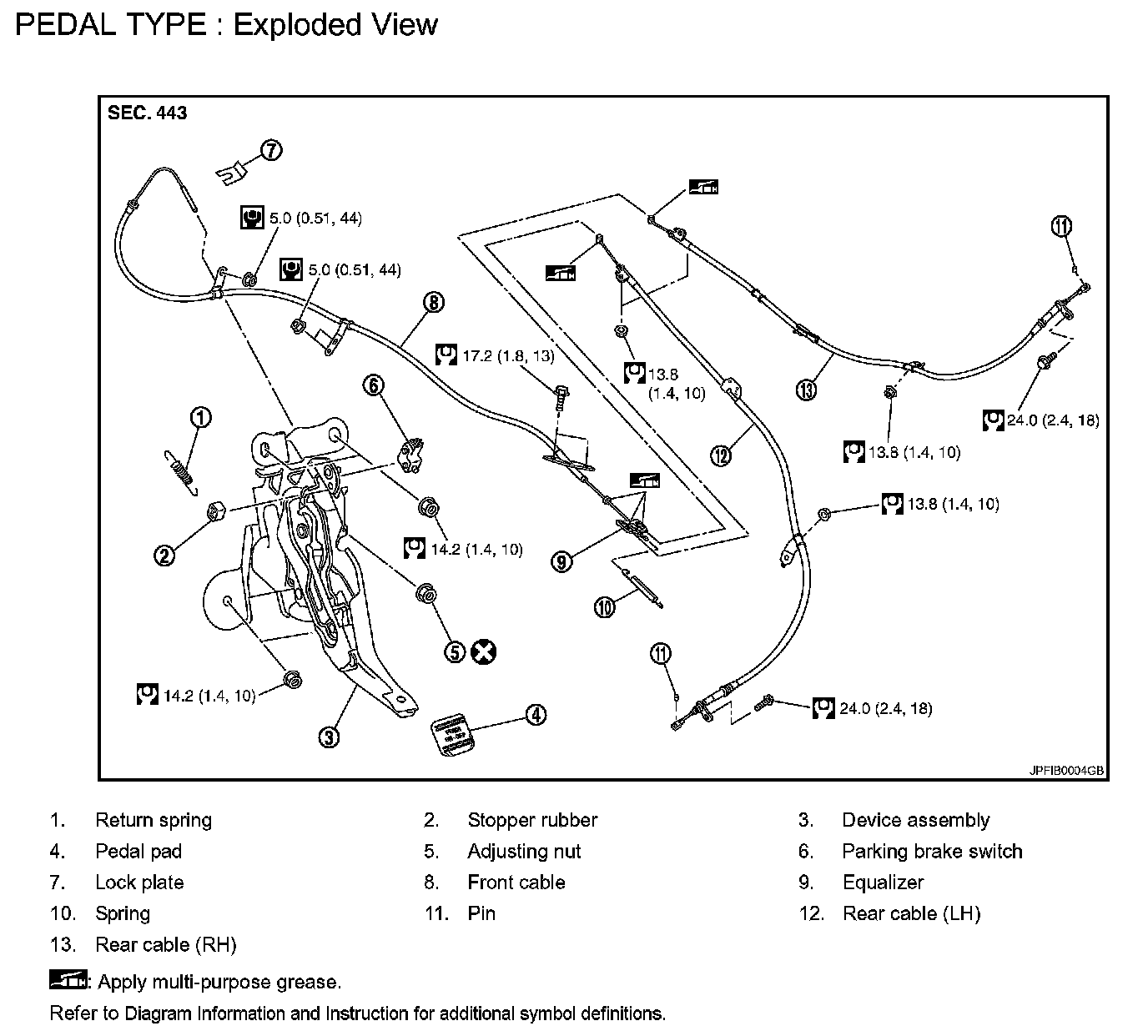

PEDAL TYPE
PB-7 Exploded View:

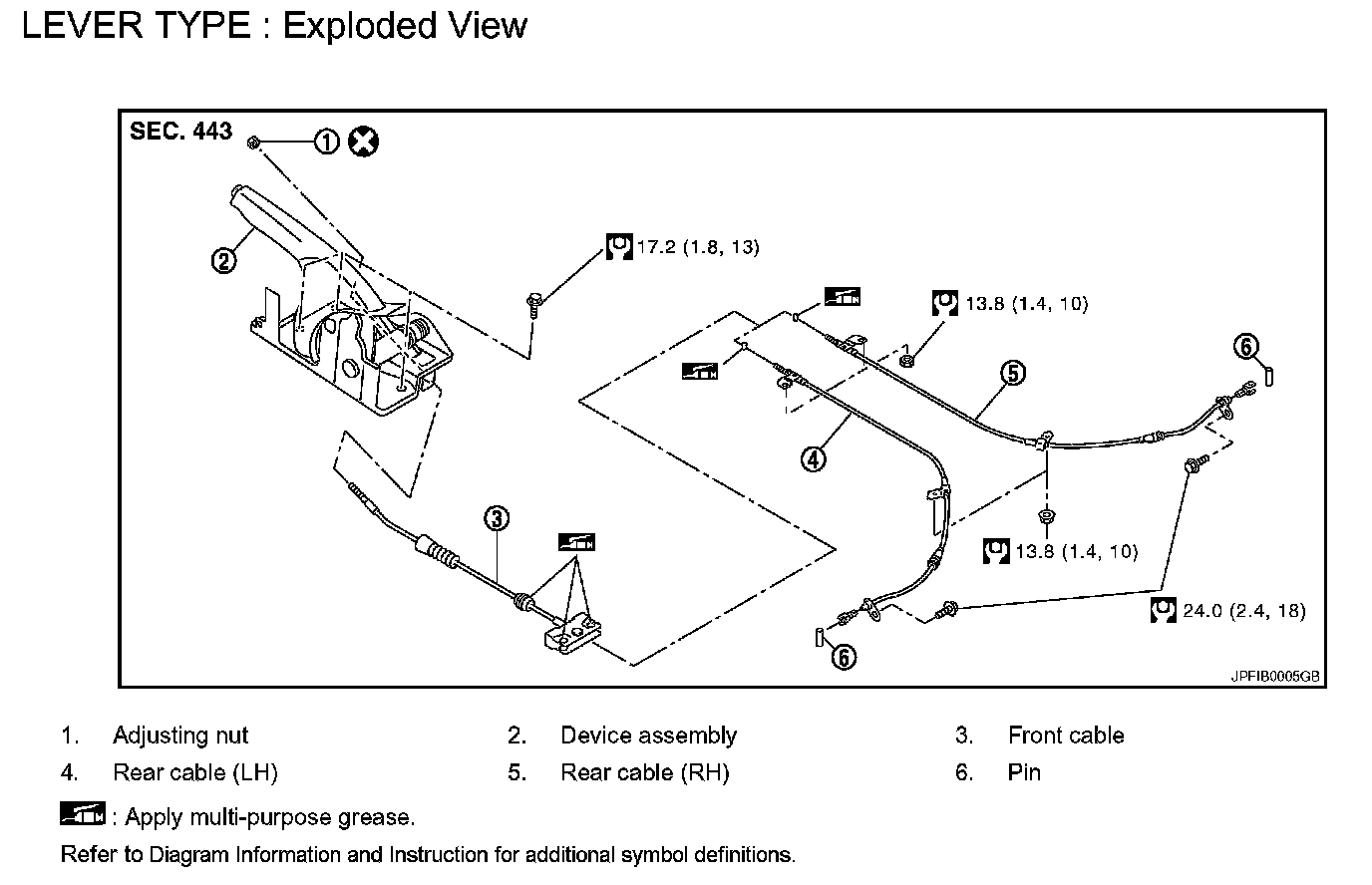

LEVER TYPE
PB-8 Exploded View:
