Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2008
>>
G35 Sedan V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>

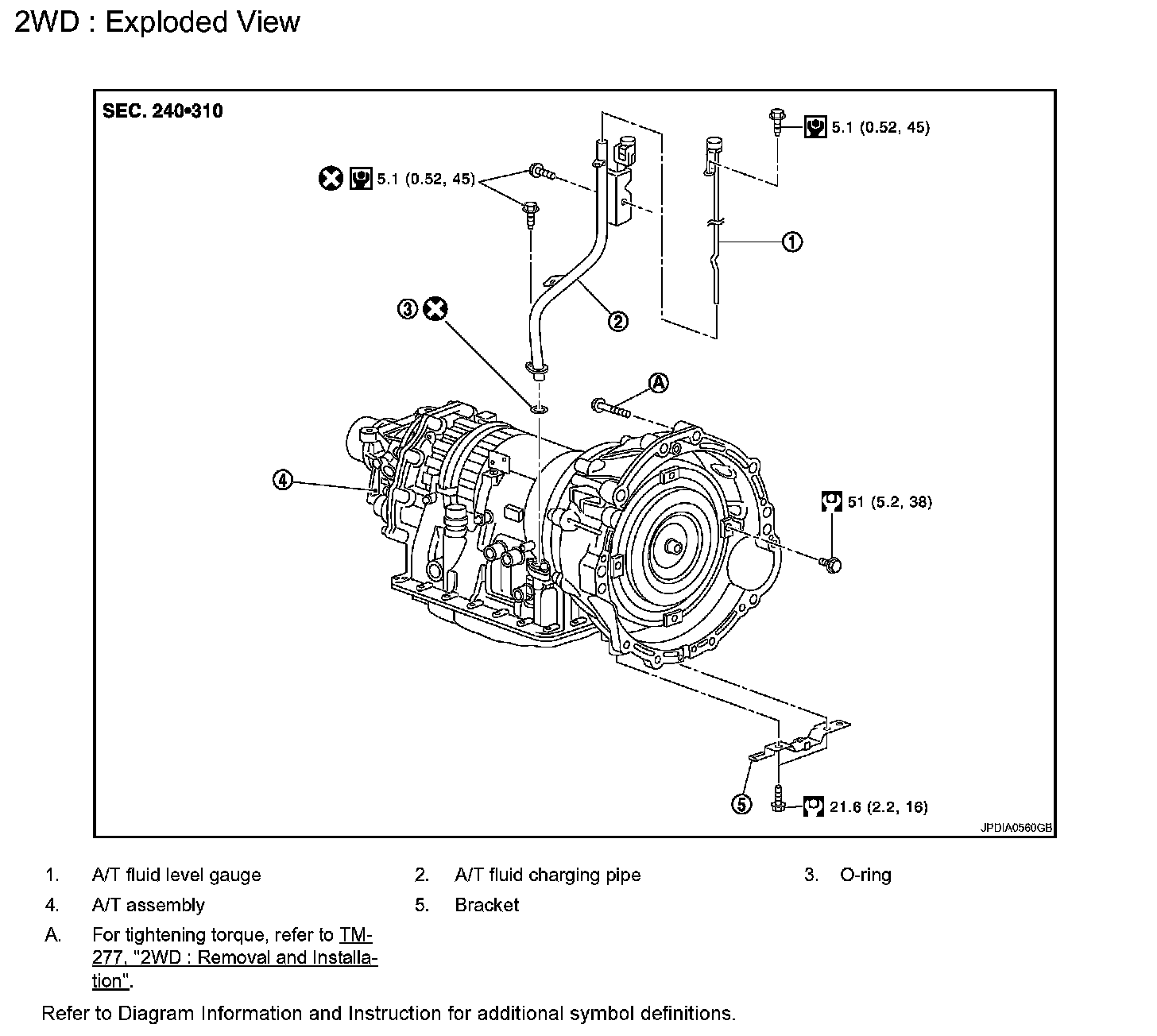

Exploded View
Exploded View

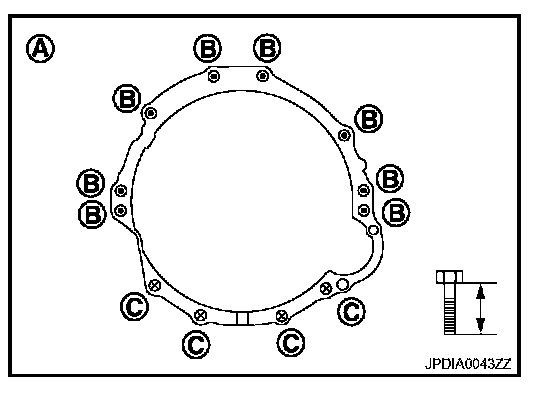

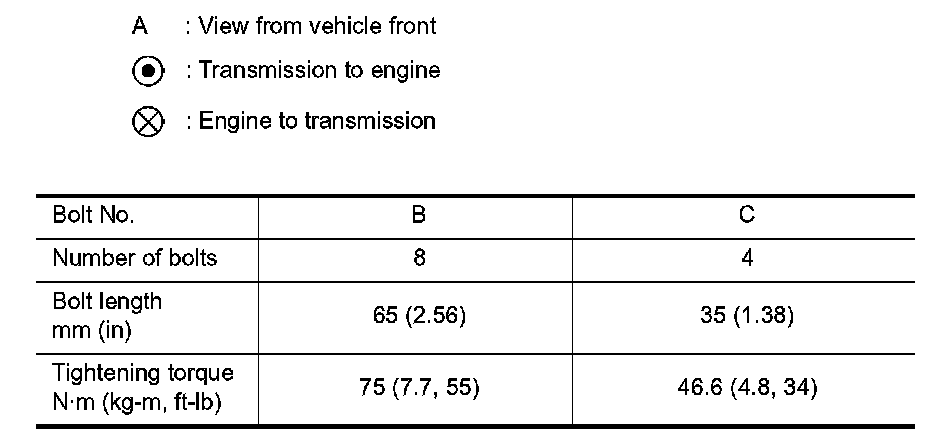

TM-277 Exploded View:
