System Specifications

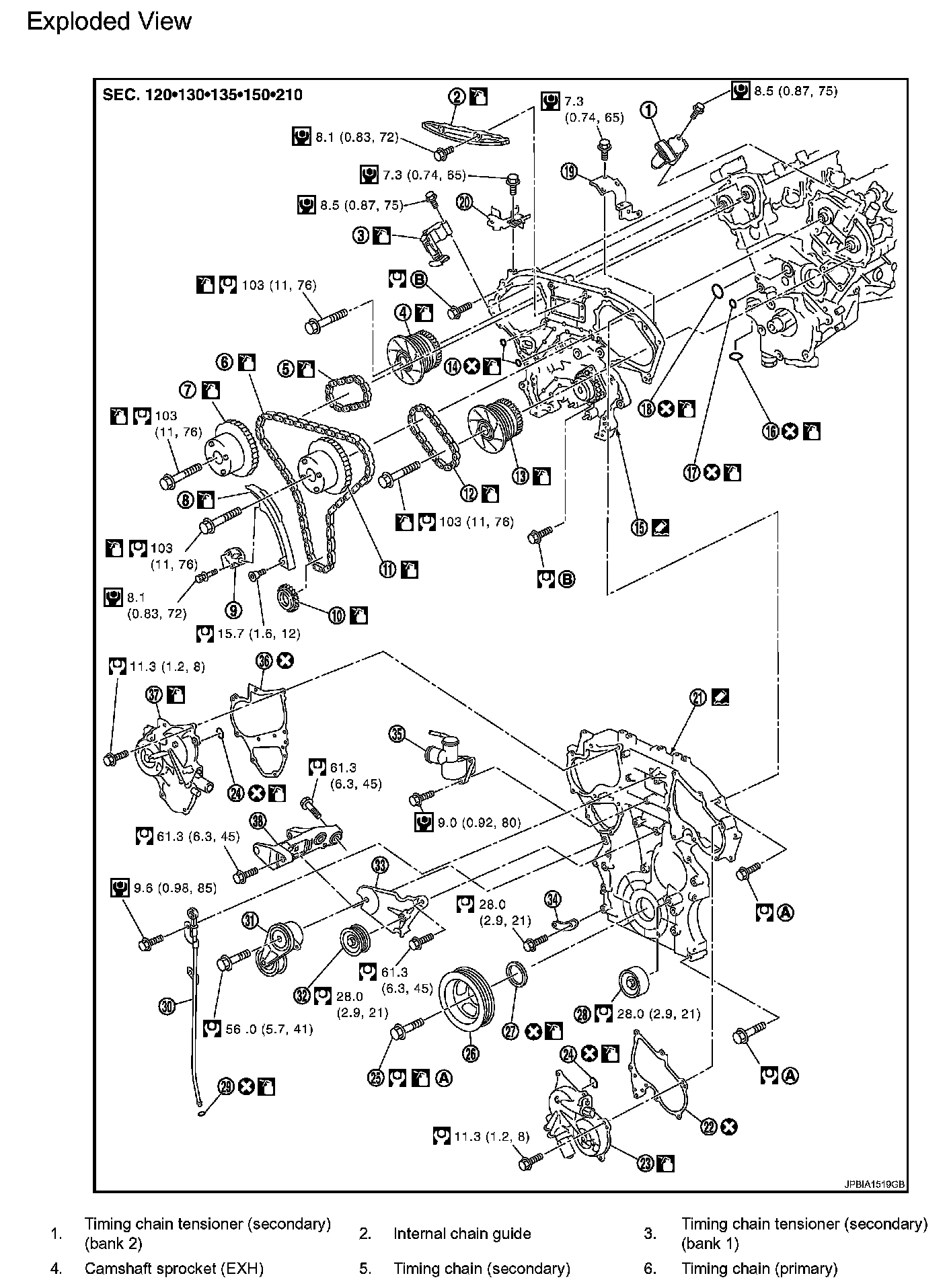

EM-49 Exploded View (Part 1):

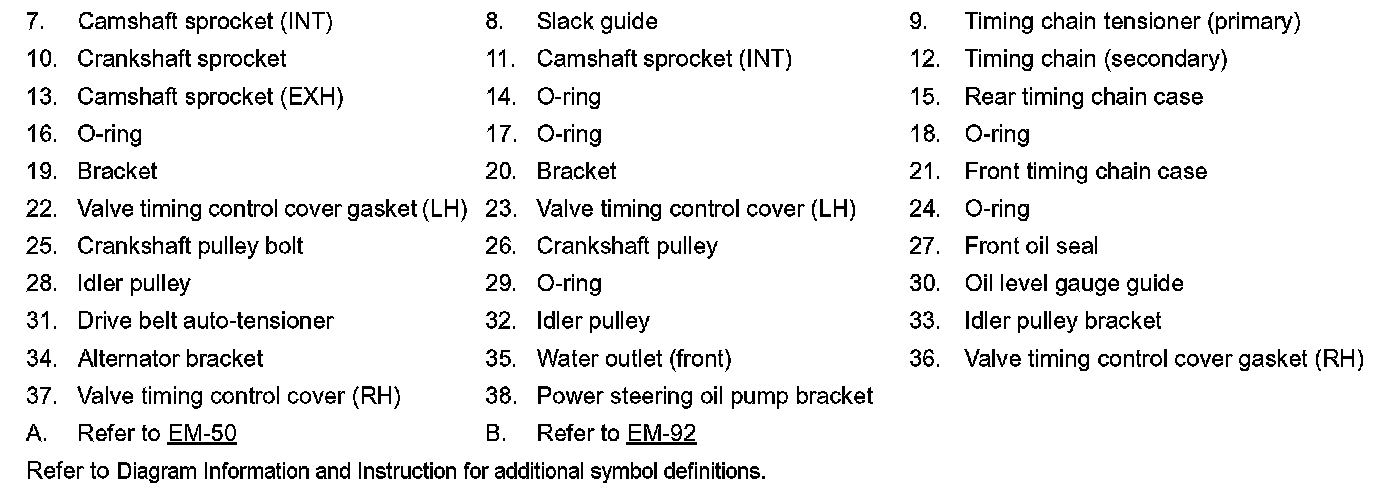

EM-49 Exploded View (Part 2):

Timing Chain Tensioner

Crankshaft Pulley
Tighten crankshaft pulley bolt.
Torque 44.1 Nm (4.5 kg-m, 33 ft-lb)

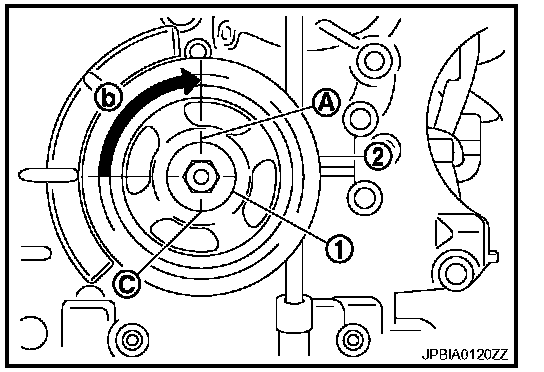

Place a matching mark (A) on crankshaft pulley (2) aligning with the matching (C) of crankshaft pulley bolt (1). Tighten the bolt 90 degrees (one marks) (b).
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.

Timing Cover





Tighten mounting bolts in numerical order as shown in the figure.
There are two types of mounting bolts. Refer to the following for locating bolts.
Bolt length Bolt position
20 mm (0.79 in) 1, 2, 3, 6, 7, 8, 9, 10
16 mm (0.63 in) 4, 5, 11, 12, 13
Torque 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolt length Bolt position
16 mm (0.63 in) Except the above
Torque 15.0 Nm (1.5 kg-m, 11 ft-lb)
After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.
