B2555

B2555 STOP LAMP

Description
BCM detects the stop lamp status and confirms the stop lamp switch ON/OFF status. BCM confirms the engine start condition according to the stop lamp switch ON/OFF status.

DTC Logic

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

Step 1:

Diagnosis Procedure

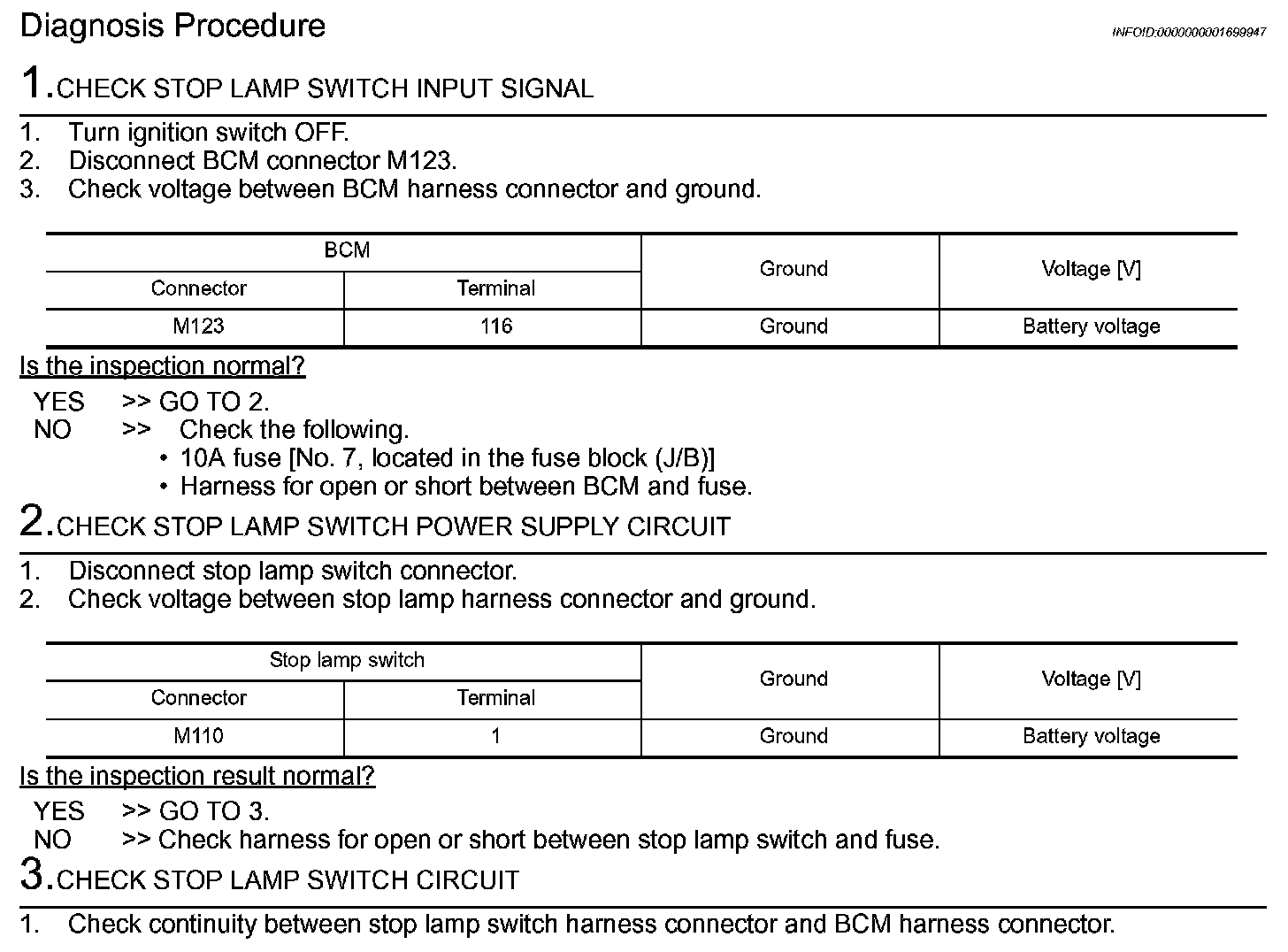

Step 1-3:

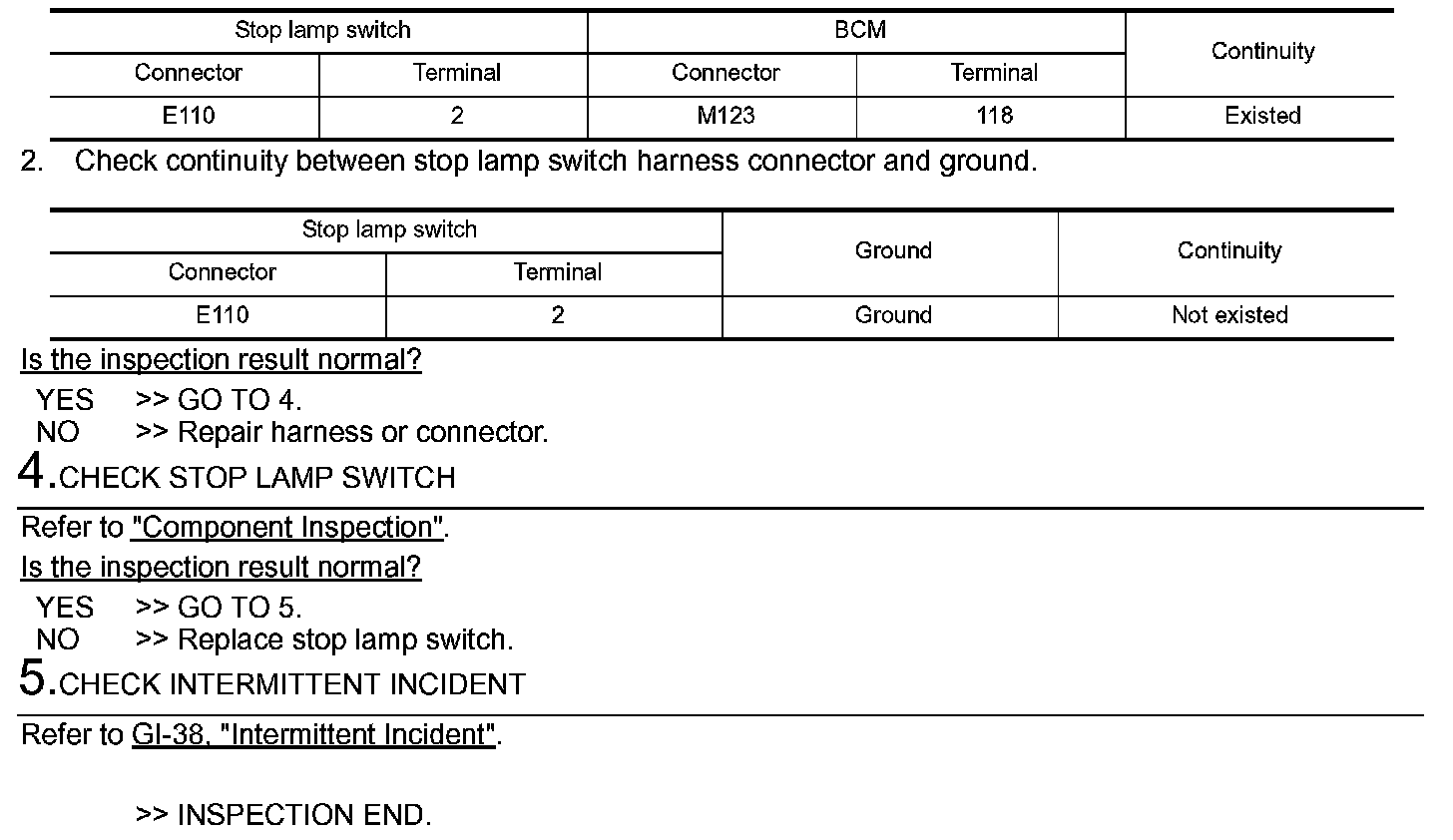

Step 3 (Continued)-5:

Component Inspection

Step 1:
