C1109
C1109 POWER AND GROUND SYSTEMDescription
Supplies electric power to the ABS actuator and electric unit (control unit).

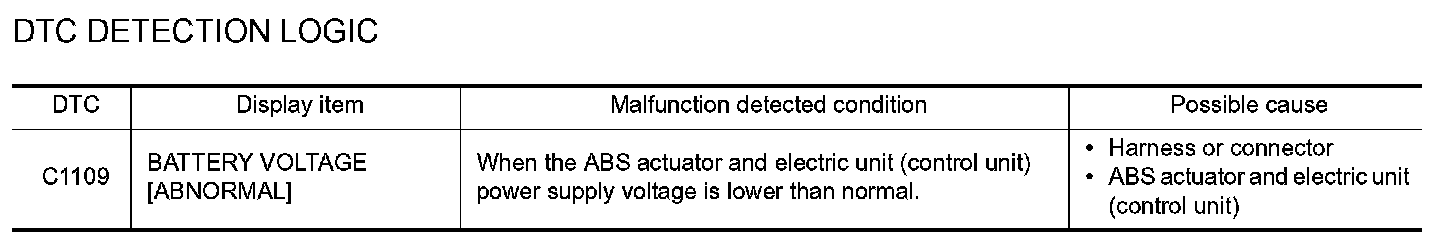

DTC Logic
C1109:
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS

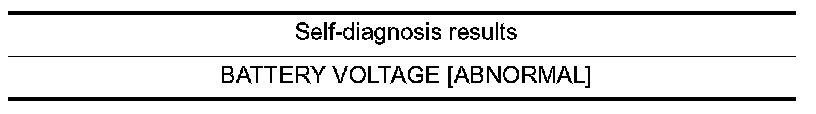

Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis Procedure
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connector.
3. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace terminal.
4. Reconnect connectors and then perform the self-diagnosis.
Is any item indicated on the self-diagnosis display?
YES >> GO TO 2.
NO >> Poor connection of connector terminal. Repair or replace connector.
2.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT AND GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connector.

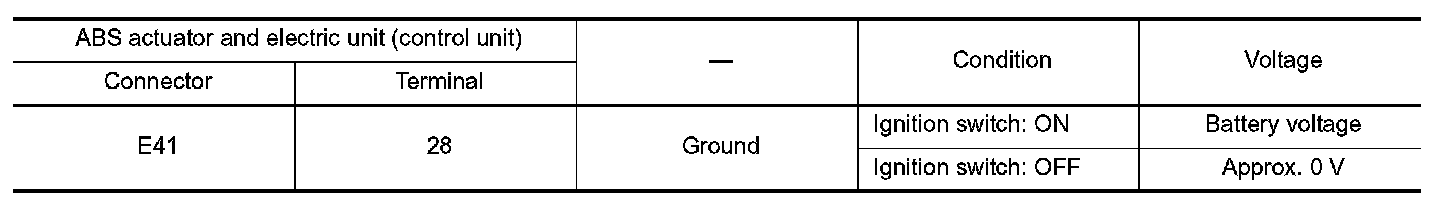

3. Turn ignition switch ON or OFF and check voltage between ABS actuator and electric unit (control unit) harness connector terminal and ground.
4. Turn ignition switch OFF.

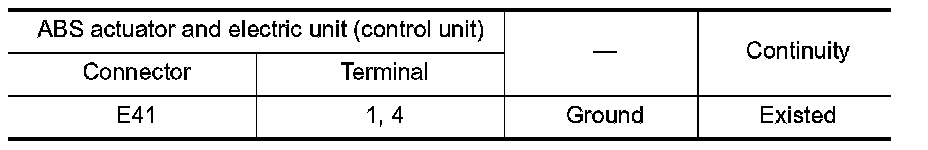

5. Check continuity between ABS actuator and electric unit (control unit) harness connector terminals and ground.
Is the inspection result normal?
YES >> Check battery for terminal looseness, low voltage, etc. If any malfunction is found, repair malfunctioning parts.
NO >> Repair or replace malfunctioning components.
Special Repair Requirement
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the "ST ANG SEN ADJUSTMENT" in "WORK SUPPORT", when replacing the ABS actuator and electric unit (control unit).
>> END
