C1707
C1704, C1705, C1706, C1707 LOW TIRE PRESSUREDescription
When the tire pressure monitoring system detects low inflation pressure, the low tire pressure warning lamps in the combination meter comes on.
DTC Logic
C1704-C1707:
DTC CONFIRMATION PROCEDURE
1.CHECK ID REGISTRATION AND VEHICLE DRIVING
With CONSULT-III

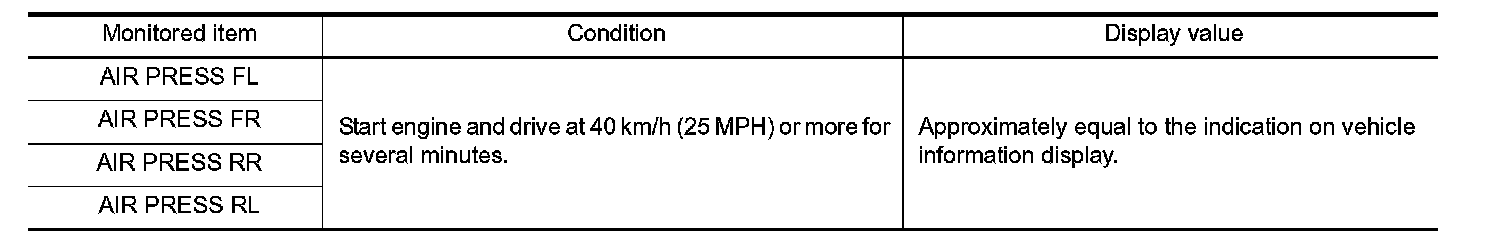

Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes. Then check all tire pressure with CONSULT-III "DATA MONITOR" within 5 minutes.
Does "DATA MONITOR" displayed the standardized value without turning low tire pressure warning lamp ON?
YES >> INSPECTION END
NO >> Go to diagnosis procedure. Refer to "Diagnosis Procedure".
Diagnosis Procedure
1.ADJUST TIRE AIR PRESSURE
1. Adjust all tire air pressures. Refer to WT-98, "Tire". [1][2]Specifications
2. Check all tire air pressures.
Does all tire pressure data meet the specification?
YES >> GO TO 2.
NO >> Inspect or replace the tire or wheels and adjust the tire pressure to the specification.
2.CHECK AIR PRESSURE SIGNAL
Drive at a speed of 40 km/h (25 MPH) or more 3 minutes, and then drive the vehicle at any speed for 10 minutes. Then check all tire pressure with CONSULT-III "DATA MONITOR" within 5 minutes.
Does "DATA MONITOR" displayed the standardized value without turning low tire pressure warning lamp ON?
YES >> INSPECTION END
NO >> Inspect or replace the tire or wheels. Refer to WT-90, "Service Notice or Precautions". Technician Safety Information
