P0555

P0555 BRAKE BOOSTER PRESSURE SENSOR

Description




Brake booster pressure sensor is connected to brake booster by a hose. It detects brake booster pressure and sends the voltage signal to the ECM. The sensor uses a silicon diaphragm which is sensitive to the change in pressure. As the pressure increases, the voltage rises.

DTC Logic

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

Step 1-2:

Diagnosis Procedure

Step 1:

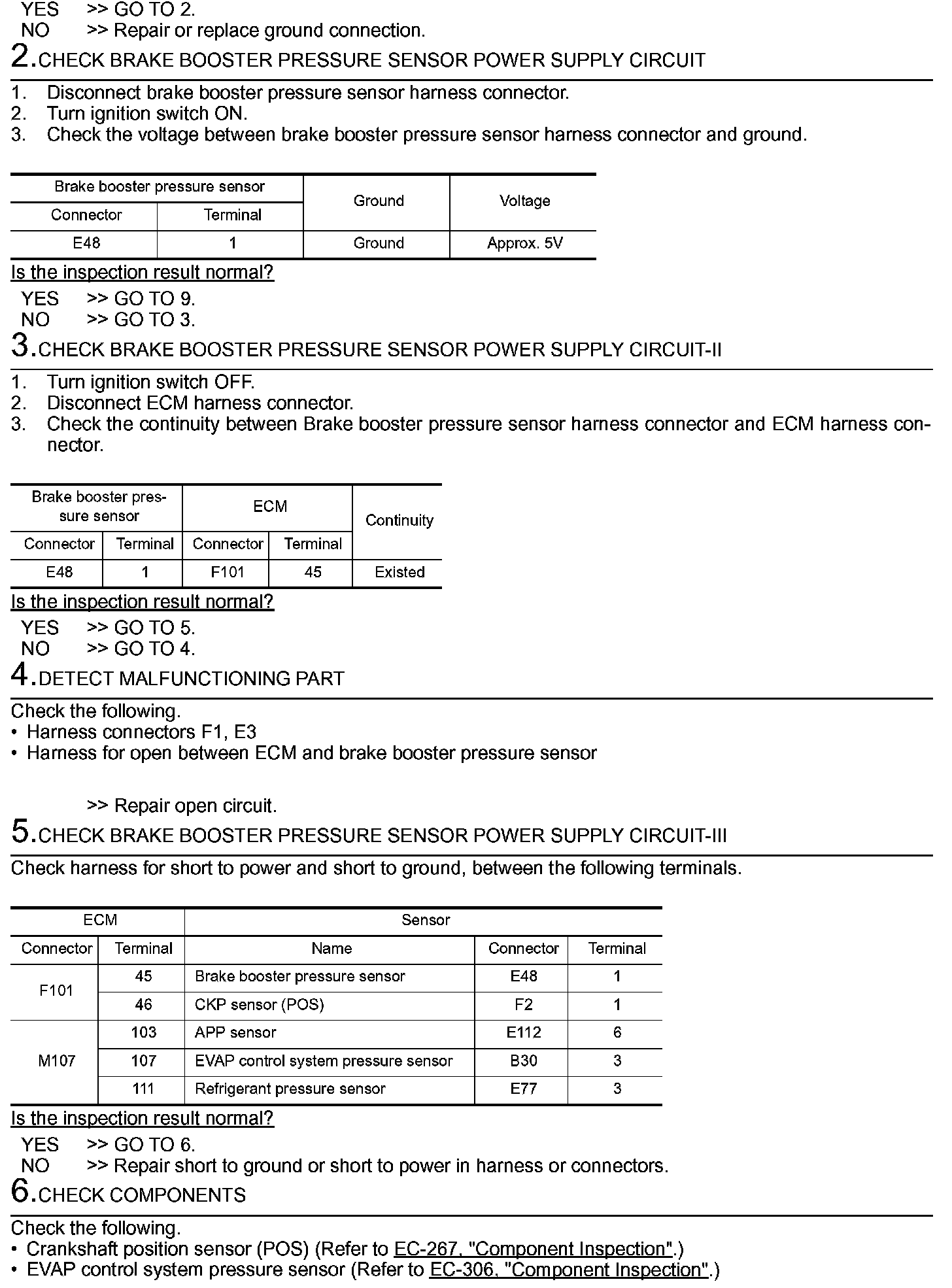

Step 1 (Continued)-6:

Step 6 (Continued)-12:

Step 12 (Continued)-14:

Component Inspection

Step 1:

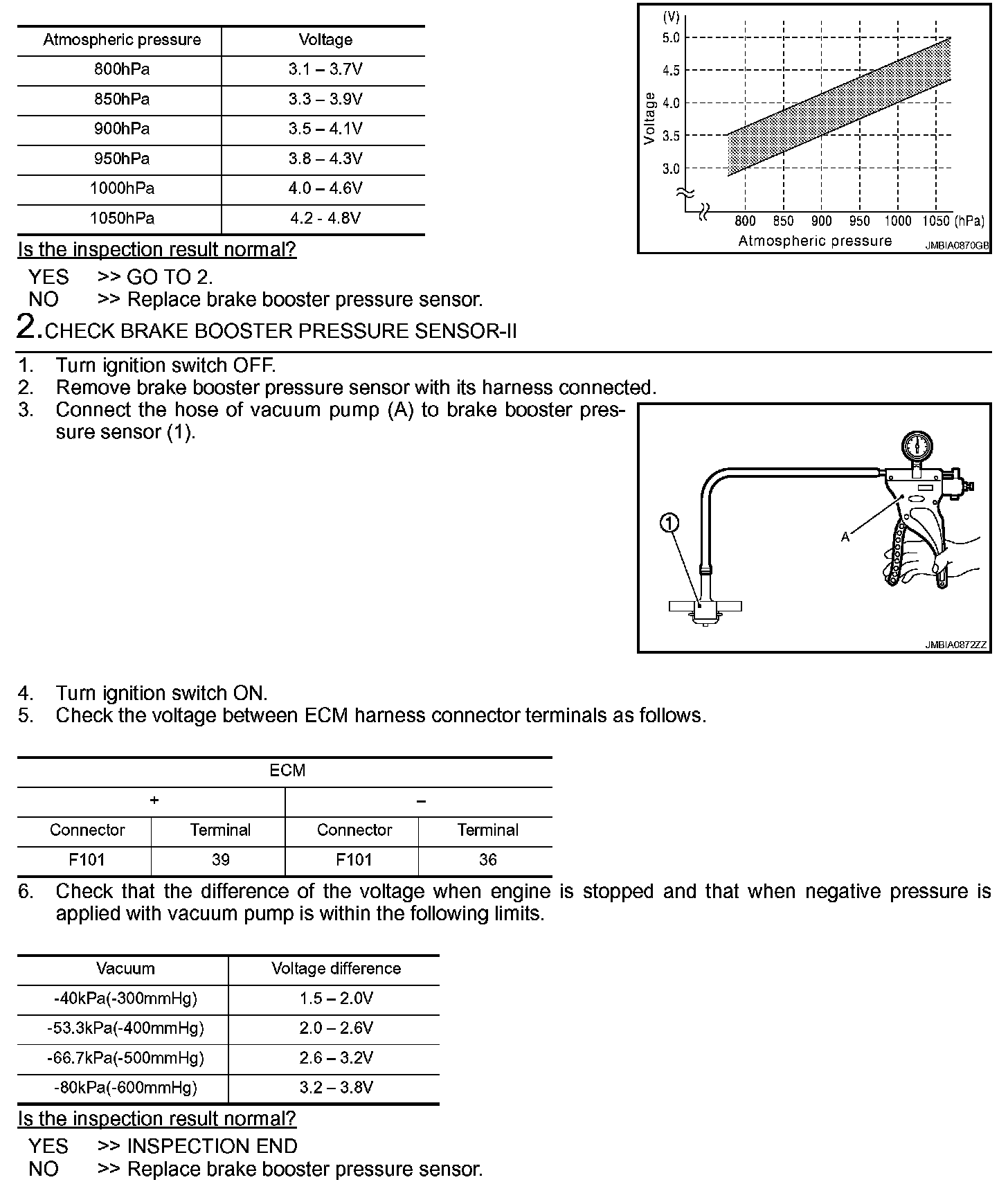

Step 1 (Continued)-2:
