P1815
P1815 MANUAL MODE SWITCHDESCRIPTION
Manual mode switch is installed in A/T device. It transmits manual mode switch, shift up and shift down switch signals to unified meter and A/C amp. Then unified meter and A/C amp. transmits signals to TCM with CAN communication.
Paddle shifter transmits shift up and shift down switch signals to unified meter and A/C amp. Then unified meter and A/C amp. transmits signals to TCM with CAN communication. (With paddle shifter)
TCM transmits the switch signals to unified meter and A/C amp. by CAN communication line. Then manual mode switch position is indicated on the A/T indicator. For inspection, refer to TM-165. Shift Position Indicator Circuit
DTC Logic
P1815:
DTC CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If "DTC CONFIRMATION PROCEDURE" has been previously performed, always turn ignition switch OFF. Then wait at least 10 seconds before performing the next test.
1.CHECK DTC DETECTION
With CONSULT-III
1. Start the engine.
2. Select "DATA MONITOR".
3. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.
MANU MODE SW: ON
Is "P1815 MANU MODE SW/CIRC" detected?
YES >> Go to "Diagnosis Procedure".
NO >> Check intermittent incident. Refer to GI-38, "Intermittent Incident". Service Information For Electrical Incident
Diagnosis Procedure
1.CHECK MANUAL MODE SWITCH CIRCUIT
With CONSULT-III
1. Turn ignition switch ON.
2. Select "DATA MONITOR".
3. Check the On/Off operations of each monitor item.
Without CONSULT-III
Drive the vehicle in the manual mode and shift the select lever and paddle shifter to "UP (+ side)" or "DOWN (- side)" side (1st <---> 5th gear). Check that the meter indicator coincides with the actual gear position.
*: With paddle shifter
Which item is abnormal?
Manual mode switch >> GO TO 2.
Paddle shifter >> GO TO 9.
2.CHECK MANUAL MODE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/T device connector.
3. Turn ignition switch ON.
4. Check voltage between A/T device vehicle side harness connector terminals.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 5.
3.CHECK MANUAL MODE SWITCH
Check manual mode switch. Refer to "Component Inspection (Manual Mode Switch)".
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace damaged parts.
4.CHECK MALFUNCTIONING ITEM
Check the following.
^ Check terminals of A/T device harness connector and harness cladding for damage.
^ Check connector for loose connection.
Is the inspection result normal?
YES >> GO TO 17.
NO >> Repair or replace damaged parts.
5.CHECK GROUND CIRCUIT
Check continuity between A/T device vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace damaged parts.
6.CHECK POWER SOURCE CIRCUIT
Check voltage between A/T device vehicle side harness connector terminals and ground.
Is the inspection result normal?
YES >> GO TO 16.
NO >> GO TO 7.
7.CHECK HARNESS BETWEEN A/T DEVICE AND UNIFIED METER AND A/C AMP. (STEP 1)
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector.

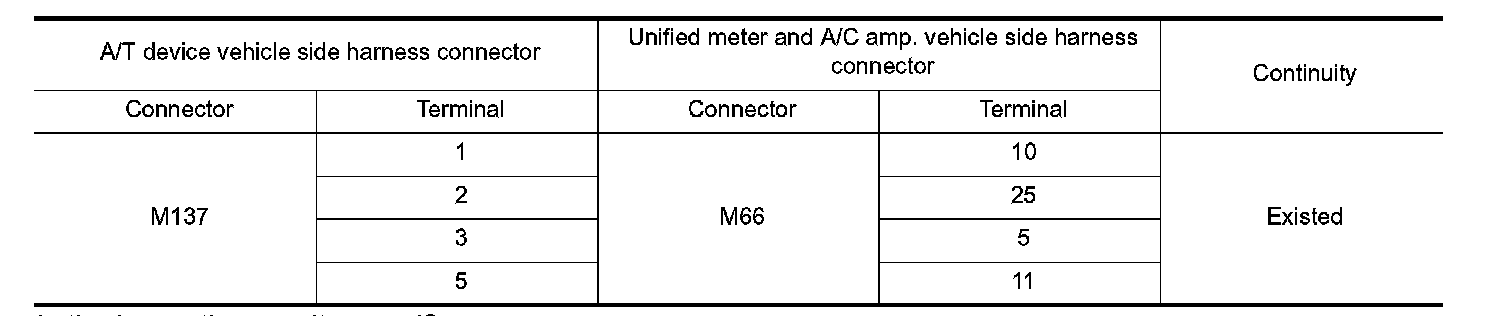

3. Check continuity between A/T device vehicle side harness connector terminals and unified meter and A/C amp. vehicle side harness connector terminals.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair or replace damaged parts.
8.CHECK HARNESS BETWEEN A/T DEVICE AND UNIFIED METER AND A/C AMP. (STEP 2)
Check continuity between A/T device vehicle side harness connector terminals and ground.
Is the inspection result normal?
YES >> GO TO 16.
NO >> Repair or replace damaged parts.
9.CHECK PADDLE SHIFTER CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect paddle shifter connector.
3. Turn ignition switch ON.
4. Check voltage between paddle shifter vehicle side harness connector terminals.
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 12.
10.CHECK PADDLE SHIFTER
Check paddle shifter. Refer to "Component Inspection (Paddle Shifter)".
Is the inspection result normal?
YES >> GO TO 11.
NO >> Repair or replace damaged parts.
11.CHECK MALFUNCTIONING ITEM
Check the following.
^ Check terminals of paddle shifter connector for damage.
^ Check connector for loose connection.
Is the inspection result normal?
YES >> GO TO 17.
NO >> Repair or replace damaged parts.
12.CHECK GROUND CIRCUIT
Check continuity between paddle shifter vehicle side harness connector terminals and ground.
Is the inspection result normal?
YES >> GO TO 13.
NO >> Repair or replace damaged parts.
13.CHECK POWER SOURCE CIRCUIT
Check voltage between paddle shifter vehicle side harness connector terminals and ground.
Is the inspection result normal?
YES >> GO TO 16.
NO >> GO TO 14.
14.CHECK HARNESS BETWEEN PADDLE SHIFTER AND UNIFIED METER AND A/C AMP. (STEP 1)
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector.
3. Check continuity between paddle shifter vehicle side harness connector terminals and unified meter and A/C amp. vehicle side harness connector terminals.
Is the inspection result normal?
YES >> GO TO 15.
NO >> Repair or replace damaged parts.
15.CHECK HARNESS BETWEEN PADDLE SHIFTER AND UNIFIED METER AND A/C AMP. (STEP 2)
Check continuity between paddle shifter vehicle side harness connector terminals and ground.
Is the inspection result normal?
YES >> GO TO 16.
NO >> Repair or replace damaged parts.
16.CHECK MALFUNCTIONING ITEM
Check the following.
^ Check terminals of unified meter and A/C amp. connector for damage.
^ Check connector for loose connection.
Is the inspection result normal?
YES >> GO TO 17.
NO >> Repair or replace damaged parts.
17.CHECK UNIFIED METER AND A/C AMP.
1. Reconnect all the connectors.
2. Turn ignition switch ON.
3. Select "M RANGE SW", "NM RANGE SW", "AT SFT UP SW", "AT SFT DWN SW", "ST SFT UP SW" and "ST SFT DWN SW" on "DATA MONITOR" mode for "METER/M&A", and check the On/Off operations of each monitor item. Refer to MWI-83, "Reference Value". Unified Meter and A/C AMP.
*: With paddle shifter
Is the inspection result normal?
YES >> GO TO 18.
NO >> Replace unified meter and A/C amp.
18.CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to TM-163, "Diagnosis Procedure". Main Power Supply and Ground Circuit
Is the inspection result normal?
YES >> Replace the control valve with TCM.
NO >> Repair or replace damaged parts.
Component Inspection (Manual Mode Switch)
1.CHECK MANUAL MODE SWITCH
Check continuity between terminals.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Repair or replace damaged parts.
Component Inspection (Paddle Shifter)
1.CHECK PADDLE SHIFTER
Check continuity between terminals.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace damaged parts.
